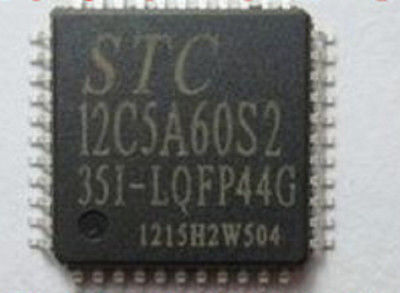

STC12C5A16S2-35I-LQFP44
The STC12C5A16S2-35I-LQFP44 is an 8-bit microcontroller with enhanced features based on the 8051 architecture. It is designed for high-performance and low-power applications, offering a wide range of integrated peripherals and a large memory capacity. This microcontroller is suitable for various embedded applications, including industrial control, consumer electronics, and automotive systems.
Key Features:
- Core: Enhanced 8051-compatible microcontroller.
- Operating Voltage: 5V
- Clock Frequency: Up to 35 MHz
- Memory:
- Flash Memory: 16 KB
- RAM: 1 KB
- I/O Ports: 40 general-purpose I/O pins
- Timers/Counters: 4 programmable 16-bit timers/counters
- Serial Communication: 2 UARTs, SPI, and I²C interfaces
- PWM Channels: 6 channels for motor control and other applications
- ADC: 8-channel, 10-bit ADC for analog signal processing
- Watchdog Timer: Integrated watchdog timer for system reliability
- Operating Temperature Range: -40°C to +85°C
- Package: LQFP44 (44-pin Low-Profile Quad Flat Package)
- Core Architecture: 8051-compatible
- Program Memory: 16 KB Flash
- Data Memory: 1 KB RAM
- Clock Frequency: Up to 35 MHz
- Digital I/O Pins: 40
- Analog Inputs: 8 channels, 10-bit ADC
- Communication Interfaces: 2 UARTs, SPI, I²C
- Timers: 4 programmable 16-bit timers/counters
- PWM Outputs: 6 channels
- Operating Voltage: 5V
- Power Consumption: Low-power modes available for energy-efficient operation
- Operating Temperature Range: -40°C to +85°C
- Industrial Control: Suitable for use in automation and control systems.
- Consumer Electronics: Used in a variety of household and personal electronic devices.
- Automotive Systems: Applied in automotive control and monitoring systems.
- Embedded Systems: Ideal for various embedded applications requiring high performance and reliability.
- Home Automation: Used in smart home devices and control systems.
- Medical Devices: Applied in medical instrumentation and diagnostic equipment.
