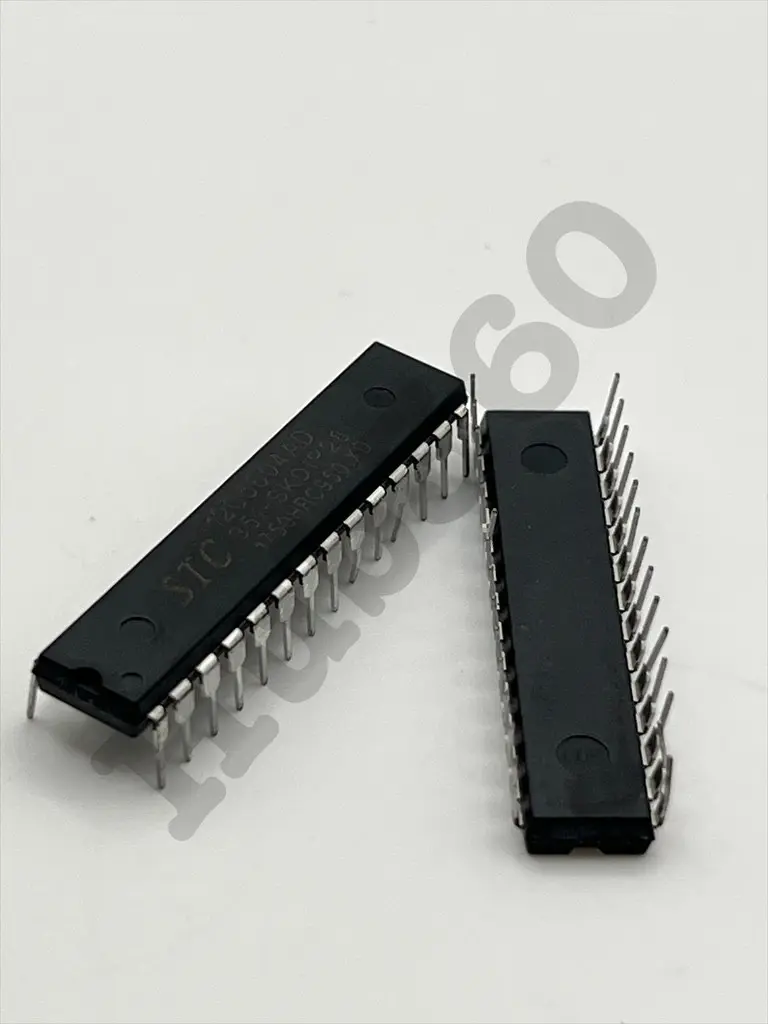

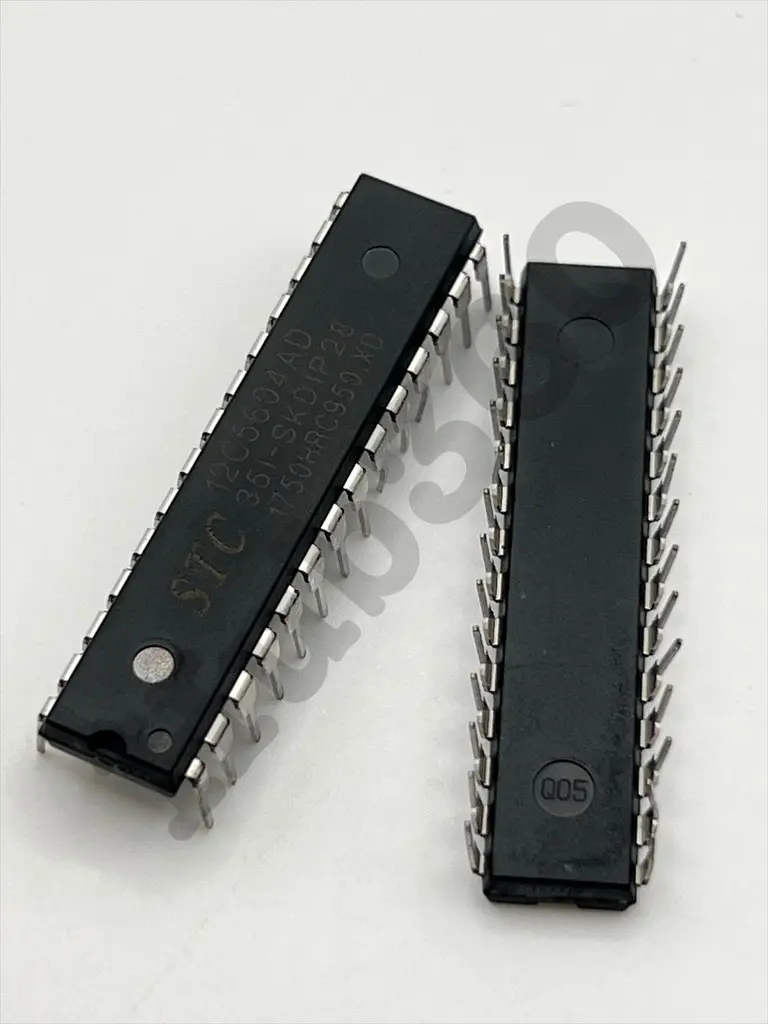

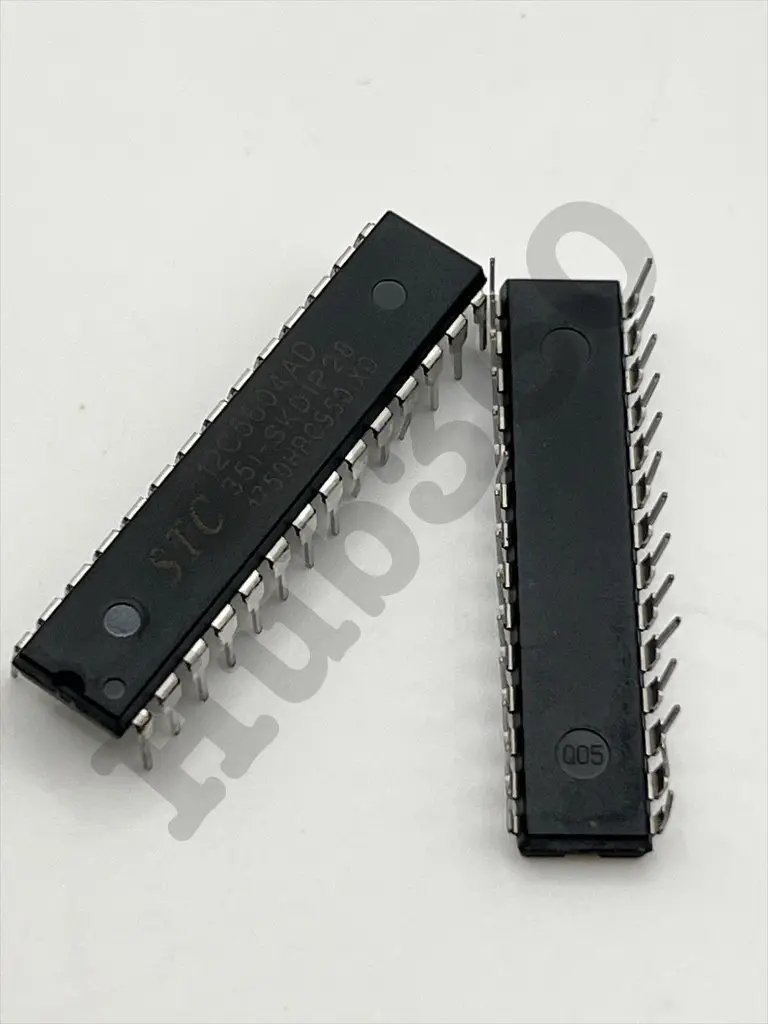

STC12C5604AD

The STC12C5604AD is an 8-bit microcontroller from STC Microelectronics, based on the 8051 architecture. It is designed for embedded control applications requiring moderate processing power and peripherals. The STC12C5604AD features a compact design with integrated flash memory, EEPROM, timers/counters, UART, and GPIO pins, making it suitable for a wide range of industrial, consumer, and automotive applications. Key Features:

• Microcontroller Core: 8051-compatible
• Clock Speed: Up to 30 MHz
• Program Memory: 4 KB Flash
• Data Memory: 256 bytes EEPROM
• RAM: 256 bytes
• I/O Pins: Up to 28 GPIO pins
• Communication Interfaces: UART (Universal Asynchronous Receiver Transmitter)
• Timers/Counters: Multiple timers/counters for timing and control tasks
• Operating Voltage: 2.4V to 5.5V
• Package Type: Various package options including DIP and SOP

Technical Specifications:

• CPU: 8-bit 8051-compatible
• Operating Frequency: Up to 30 MHz
• Program Memory Size: 4 KB Flash
• Data Memory Size: 256 bytes EEPROM, 256 bytes RAM
• I/O Pins: Up to 28 GPIO pins
• Timers/Counters: Multiple timers/counters
• Communication Interfaces: UART
• Supply Voltage: 2.4V to 5.5V
• Package Types: DIP, SOP, and others

Applications:

• Industrial Automation: Control systems, monitoring devices, and sensors.
• Consumer Electronics: Remote controls, home appliances, and small displays.
• Automotive: Dashboard controls, sensor interfaces, and motor control.
• Smart Devices: IoT devices, wearable electronics, and embedded systems.
• Communications: Modems, network devices, and interface controllers.

Datasheet: For detailed technical information, refer to the STC12C5604AD microcontroller datasheet.
