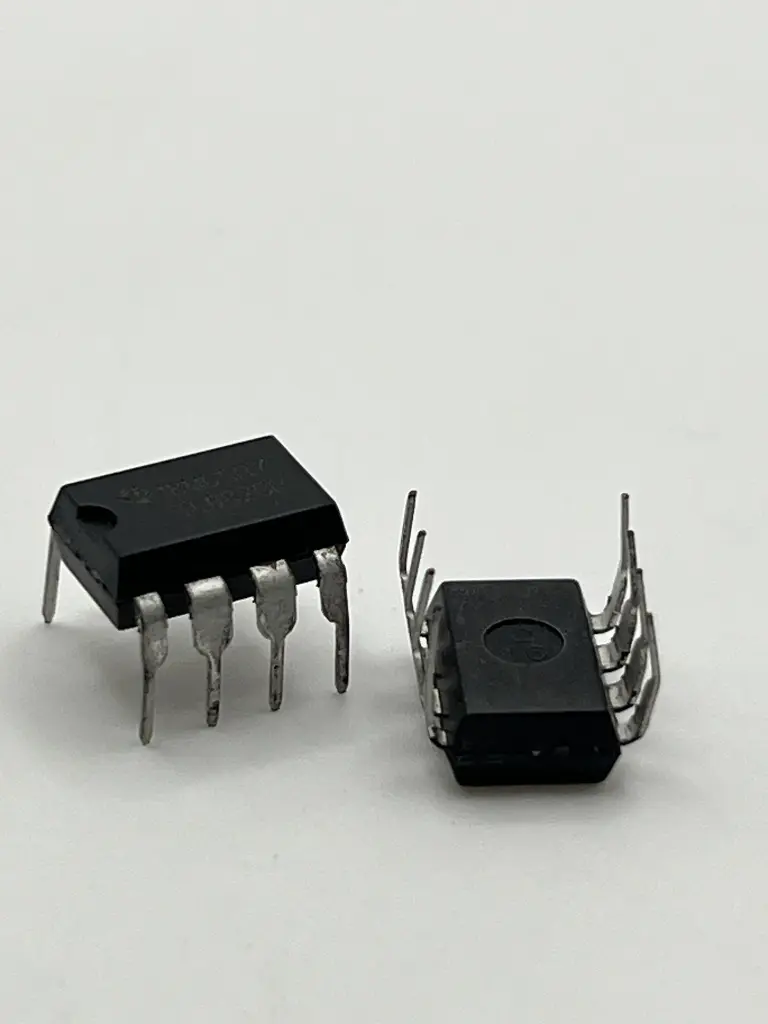

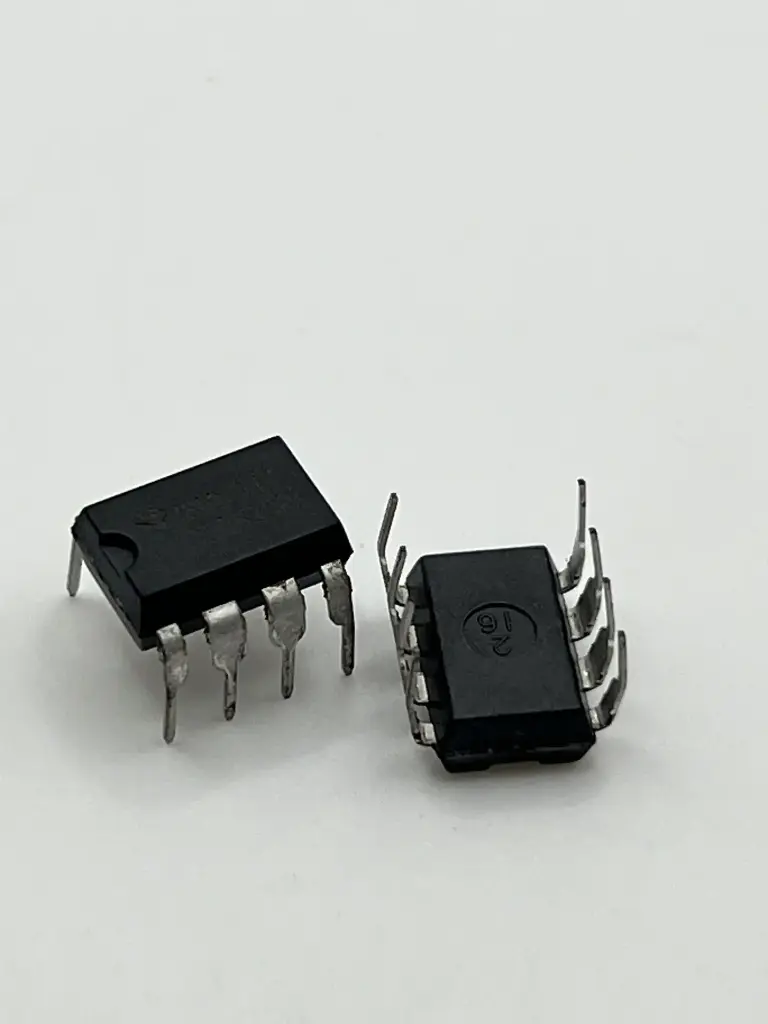

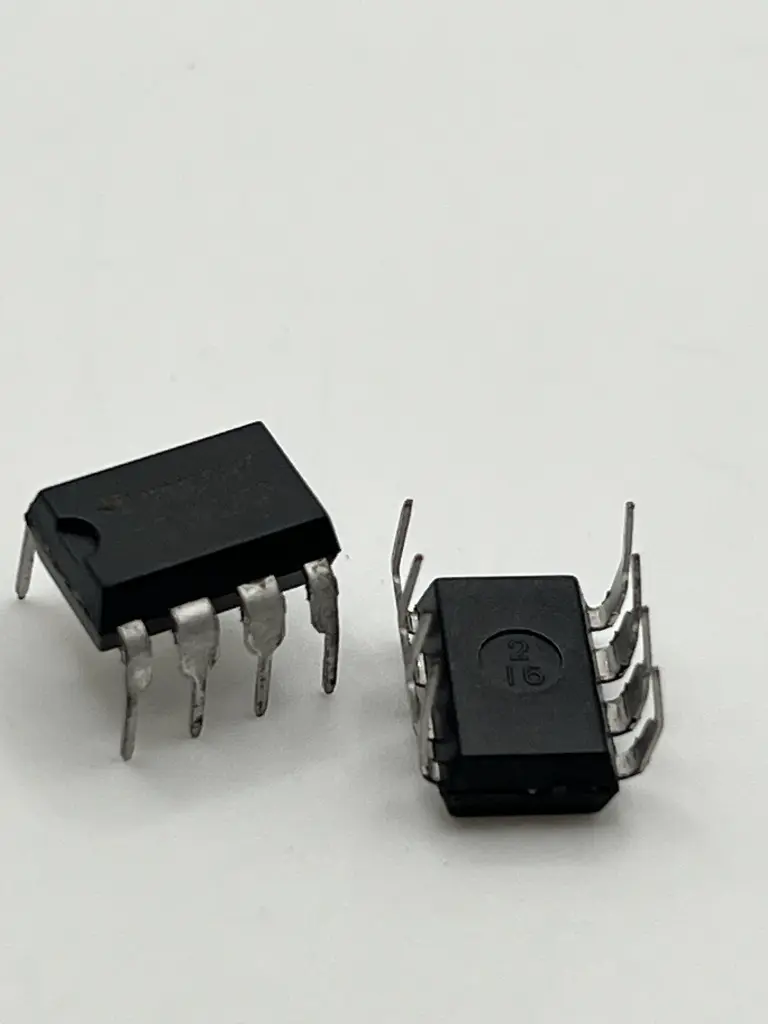

TL082CP Op Amp
Description:
The TL082CP is a high-speed JFET-input operational amplifier with low input bias and offset currents. It is suitable for a wide range of applications, including analog signal processing, filtering, and amplification. The TL082CP offers low power consumption and high slew rate, making it an ideal choice for high-performance analog circuits.
Key Features:
- Low input bias and offset currents
- High input impedance: 10^12 ohms (typical)
- Low power consumption
- High slew rate: 13 V/µs (typical)
- Wide bandwidth: 3 MHz (typical)
- Low input noise voltage: 15 nV/√Hz (typical)
- Short-circuit protection
- Internal frequency compensation
- Dual operational amplifier configuration
- Package Type: PDIP-8
- Supply Voltage Range: ±3V to ±18V
- Input Offset Voltage: 3 mV (maximum)
- Input Bias Current: 100 pA (typical)
- Input Offset Current: 5 pA (typical)
- Output Short-Circuit Duration: Continuous
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 9.81 mm x 6.35 mm x 4.57 mm
- Weight: 0.38 g
- Analog Signal Processing: Used in filters, integrators, and differentiators.
- Audio Amplifiers: Suitable for use in high-fidelity audio equipment.
- Instrumentation: Ideal for precision measurement and instrumentation applications.
- Data Acquisition: Used in data acquisition systems for signal conditioning.
- Medical Equipment: Employed in various medical devices for analog signal amplification.
