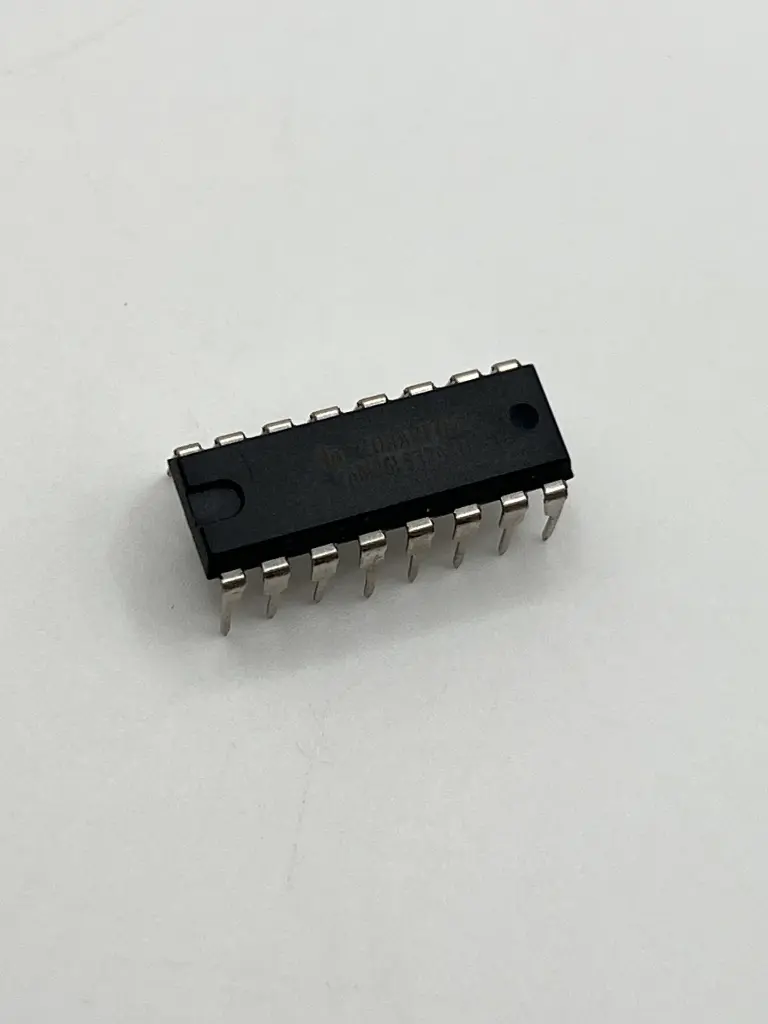

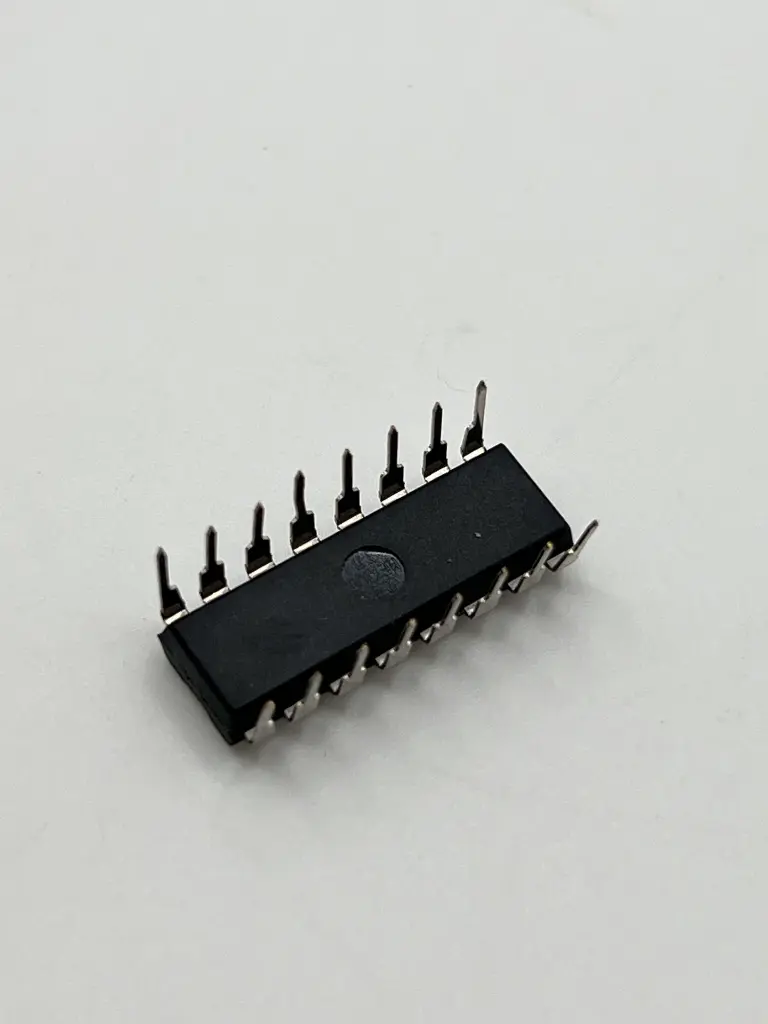

AM26LS32ACN driver chip

Description: The AM26LS32ACN is a quad differential line receiver designed to receive and process differential signals over long distances or noisy environments. It is capable of handling high-speed data transmission rates and provides robust performance in industrial and communication applications. The device features Schmitt-trigger inputs that ensure reliable signal reception even with slow input transition rates. Key Features:

• Quad differential line receiver
• TTL and CMOS compatible inputs
• Wide common-mode voltage range: -7V to +12V
• High input impedance: 7 kΩ (typical)
• High-speed operation: up to 20 Mbps
• Low power consumption
• Schmitt-trigger inputs for noise immunity
• Thermal shutdown protection
• ESD protection: 15 kV (HBM)

Technical Specifications:

• Package Type: PDIP-16, SOIC-16
• Supply Voltage Range: 4.75V to 5.25V
• Data Rate: Up to 20 Mbps
• Common-Mode Rejection Ratio (CMRR): 85 dB (typical)
• Operating Temperature Range: 0°C to +70°C
• Output Voltage: TTL/CMOS compatible
• Dimensions: 19.3 mm x 6.35 mm x 3.94 mm
• Weight: 1.5 g

Applications:

• Industrial Communication: Used in industrial automation and control systems for reliable data transmission.
• Telecommunication Systems: Provides robust signal reception in communication networks.
• Data Acquisition: Receives differential signals from sensors and transmitters in data acquisition systems.
• Networking: Used in network equipment for high-speed data communication.
• Automotive Electronics: Reliable signal reception in automotive electronic systems.

Datasheet: For detailed technical information, refer to the AM26LS32ACN Datasheet.
