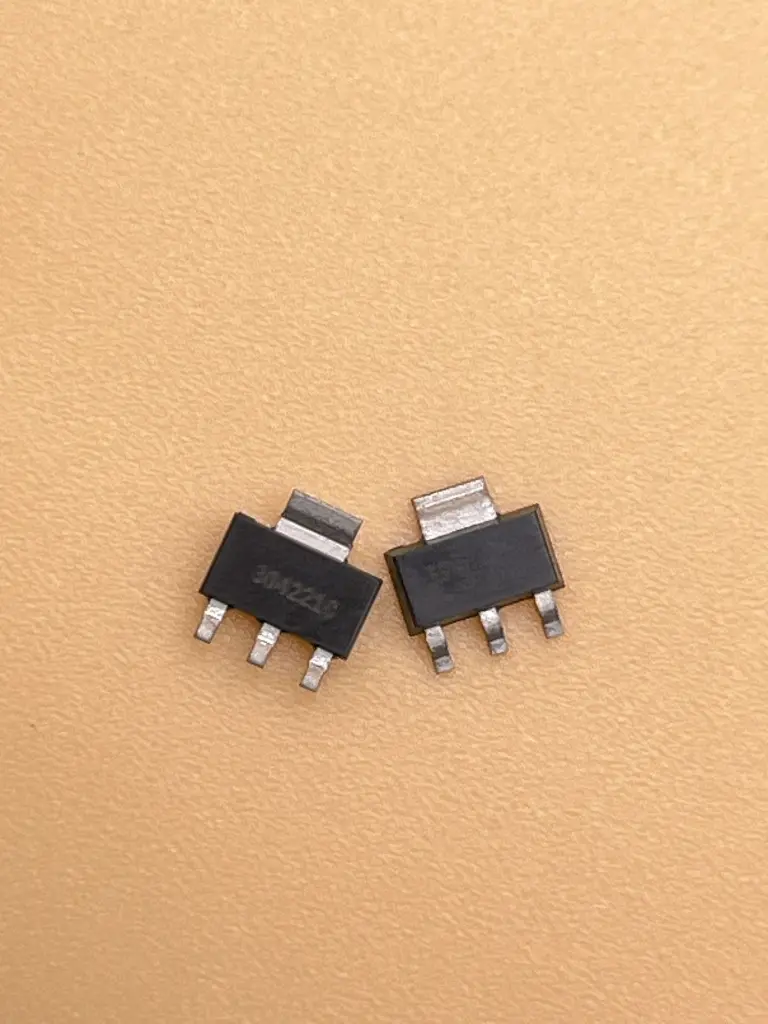

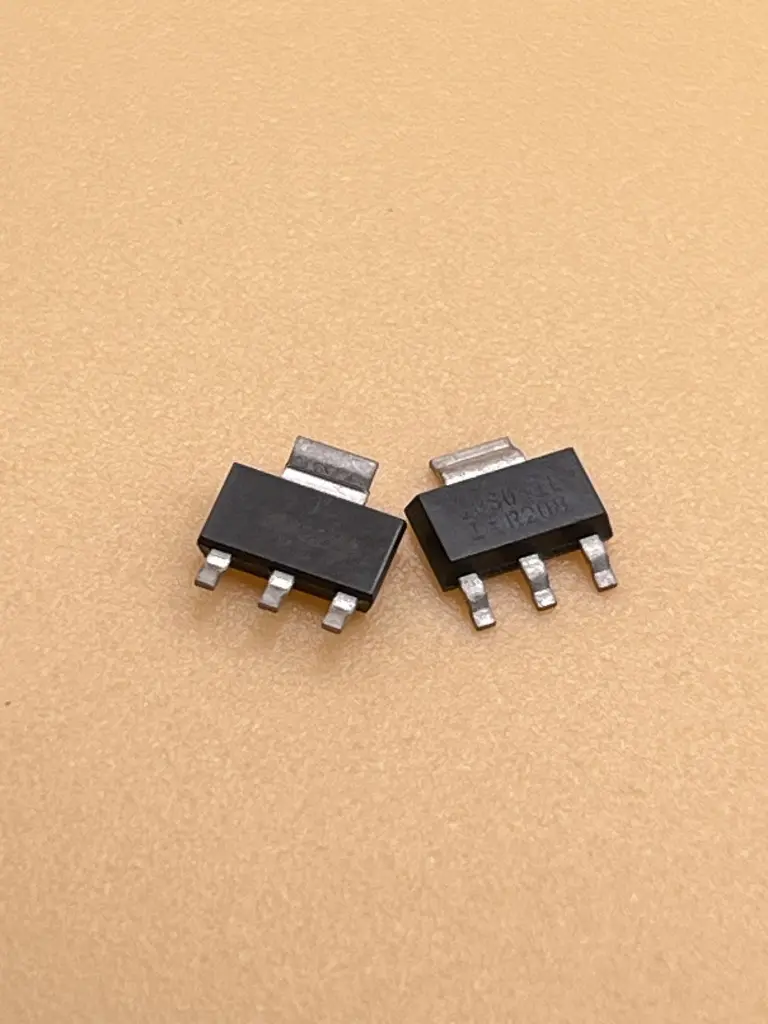

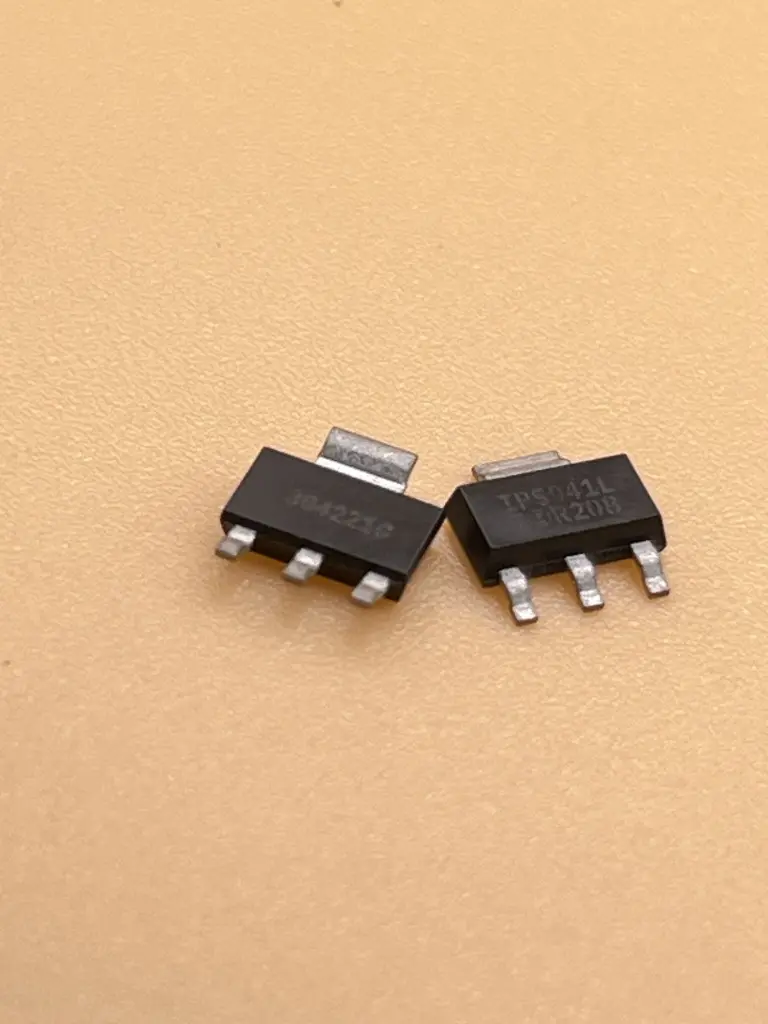

    IPS041L SOT-223

    https://gh.hub360.cc/web/image/product.template/13360/image_1920?unique=83f9689

    GH¢ 8.00 8.0 GHS GH¢ 8.00

    ₦ 1,200.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us


    The IPS041L is an N-channel enhancement mode MOSFET designed for general-purpose switching applications. It features low on-state resistance and operates efficiently in various power management circuits, including DC-DC converters and load switching applications. The SOT-223 package offers excellent thermal performance and compact size, making it suitable for space-constrained designs. Key Features:
    • N-channel enhancement mode MOSFET
    • Low on-state resistance for high efficiency
    • Fast switching speed
    • Logic-level gate drive
    • SOT-223 package for easy PCB mounting
    Technical Specifications:
    • Drain-Source Voltage (Vds): 55V
    • Continuous Drain Current (Id): 15A
    • On-State Resistance (Rds(on)): 0.017 ohms (max) at Vgs = 10V
    • Gate-Source Voltage (Vgs): ±20V
    • Total Gate Charge (Qg): 36nC
    • Operating Temperature Range: -55°C to +150°C
    • Package: SOT-223
    Applications:
    • Power management circuits
    • DC-DC converters
    • Load switching
    • Battery-powered applications
    Datasheet: For detailed technical information, please refer to the IPS041L Datasheet.
