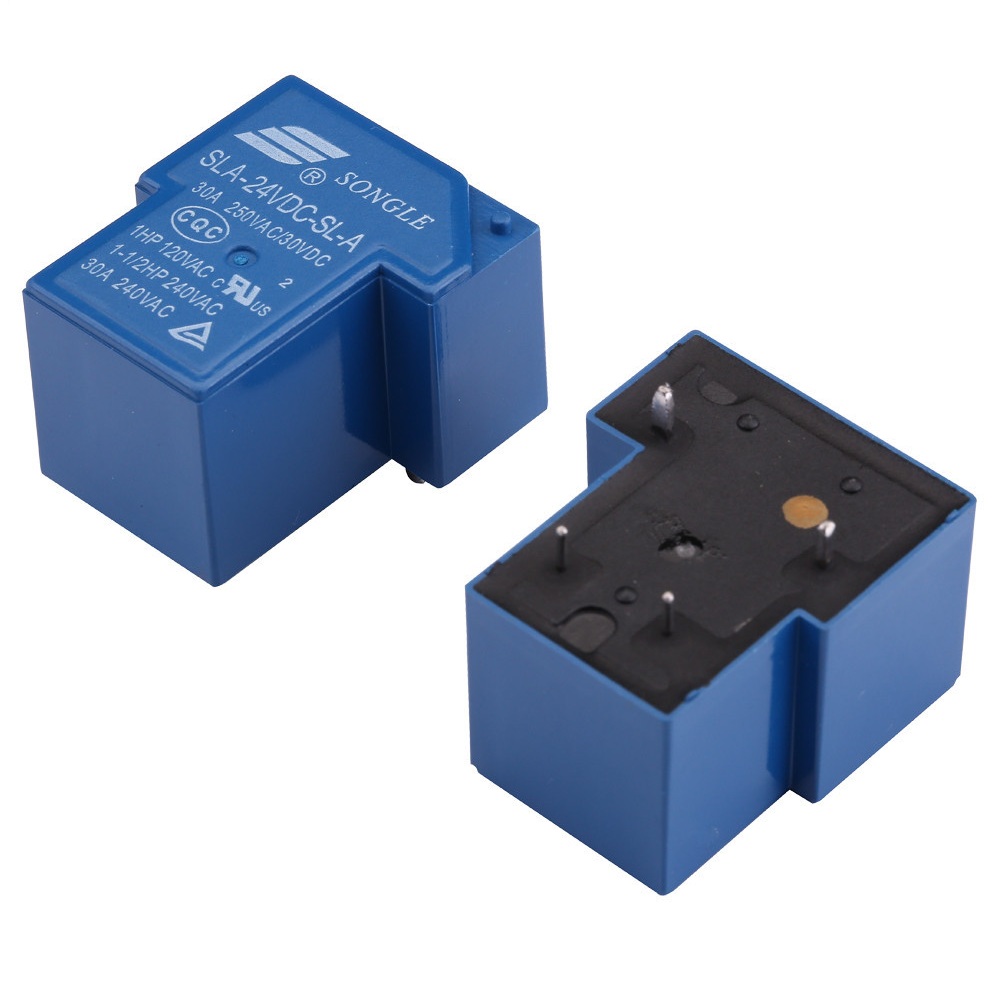

SLA-24VDC-SL-A 4 pin 24v relay

Description: The SLA-24VDC-SL-A is a general-purpose electromagnetic relay designed for switching high-current loads in various electronic and electrical control applications. It features a compact design with 4 pins for easy integration into circuit boards and control systems. The SLA-24VDC-SL-A relay operates at a coil voltage of 24V DC and is capable of switching AC or DC loads up to a specified current and voltage rating, making it suitable for a wide range of industrial, automotive, and consumer electronics applications. Key Features:

• Electromagnetic relay with SPST (Single Pole Single Throw) normally open contacts
• Compact and lightweight design
• Coil Voltage: 24V DC
• Contact Rating: Up to 10A @ 250V AC or 30V DC (depending on model)
• High insulation resistance and dielectric strength
• Low power consumption
• Mechanical and electrical life expectancy suitable for long-term use
• RoHS compliant and lead-free soldering capability

Technical Specifications:

• Contact Configuration: SPST-NO (Single Pole Single Throw Normally Open)
• Contact Material: Silver alloy
• Coil Power Consumption: Typical 400mW
• Maximum Switching Voltage: 250V AC / 30V DC
• Maximum Switching Current: 10A
• Operate Time: ≤ 10ms
• Release Time: ≤ 5ms
• Operating Temperature Range: -40°C to +85°C
• Dimensions: Compact 4-pin through-hole package

Applications:

• Industrial Automation
• Home Appliances
• Automotive Electronics
• HVAC (Heating, Ventilation, and Air Conditioning) systems
• Power Supplies
• Lighting Controls

Datasheet: For detailed technical information, refer to the SLA-24VDC-SL-A Datasheet.
