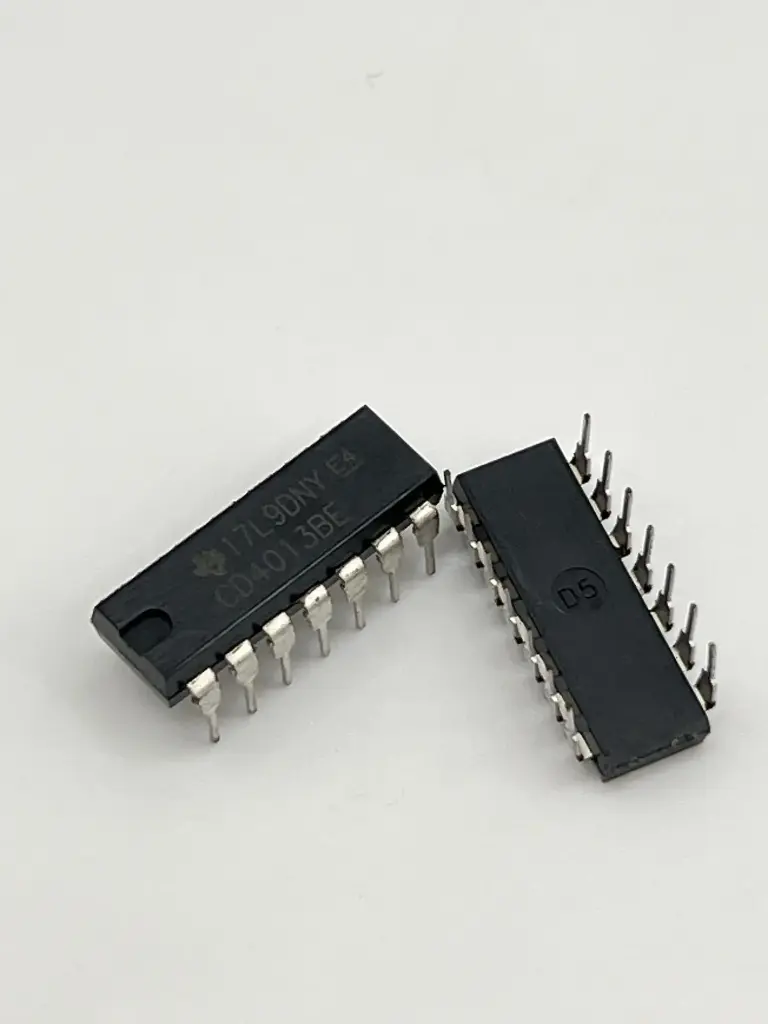

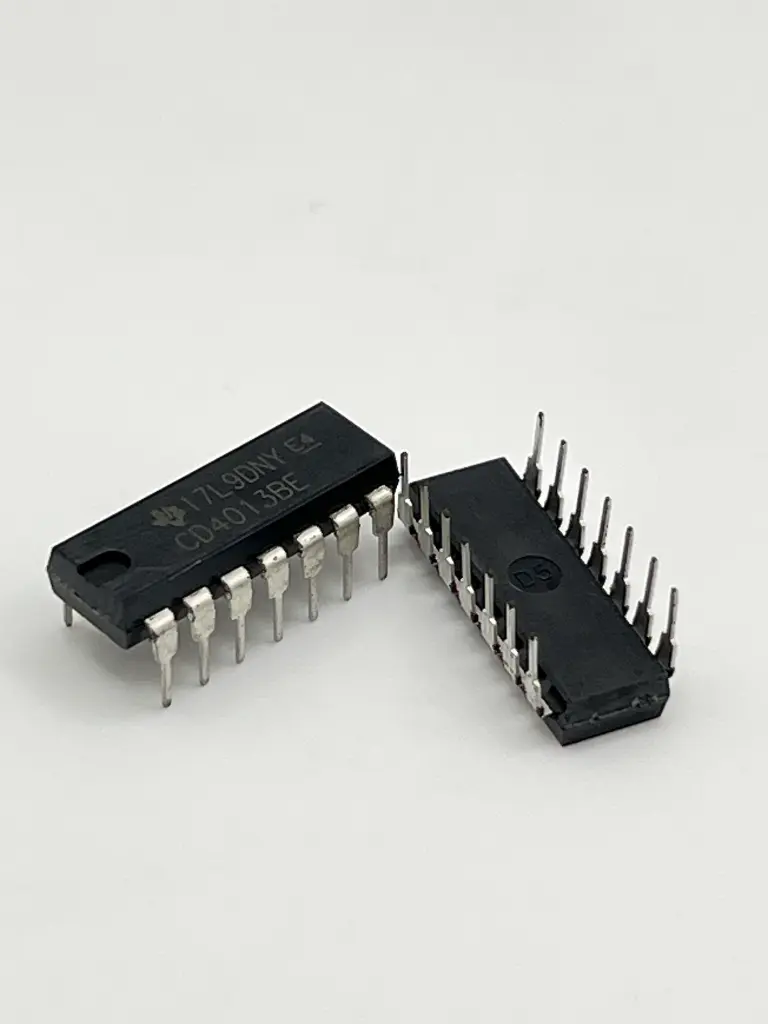

CD4013
The CD4013 is a CMOS logic IC that includes two independent D-type flip-flops. Each flip-flop has data (D), set (S), reset (R), and clock (CLK) inputs and Q and QÌ… (not-Q) outputs. The CD4013 is designed for high reliability and low power consumption, making it suitable for a wide range of digital applications such as data storage, transfer, and frequency division.
Key Features:
- Two independent D-type flip-flops
- Wide supply voltage range: 3V to 15V
- Low power consumption
- High noise immunity
- Asynchronous set and reset inputs
- TTL-compatible inputs
- Buffered inputs and outputs
- Supply Voltage (VDD): 3V to 15V
- Input Voltage Range: 0V to VDD
- High-Level Output Voltage (VOH): VDD - 0.05V (min at VDD = 5V)
- Low-Level Output Voltage (VOL): 0.05V (max at VDD = 5V)
- High-Level Input Voltage (VIH): 70% of VDD (min)
- Low-Level Input Voltage (VIL): 30% of VDD (max)
- Propagation Delay Time: 60 ns (typical at VDD = 10V)
- Operating Temperature Range: -55°C to +125°C
- Package: 14-pin DIP, SOIC
- Data Storage: Used in digital circuits to store binary data.
- Frequency Division: Suitable for dividing the frequency of digital signals.
- Counters: Implemented in counter circuits for counting operations.
- Shift Registers: Used in shift register applications for data transfer.
- State Machines: Suitable for designing finite state machines in digital systems.
- Toggle Flip-Flops: Can be configured as toggle flip-flops for various applications.
