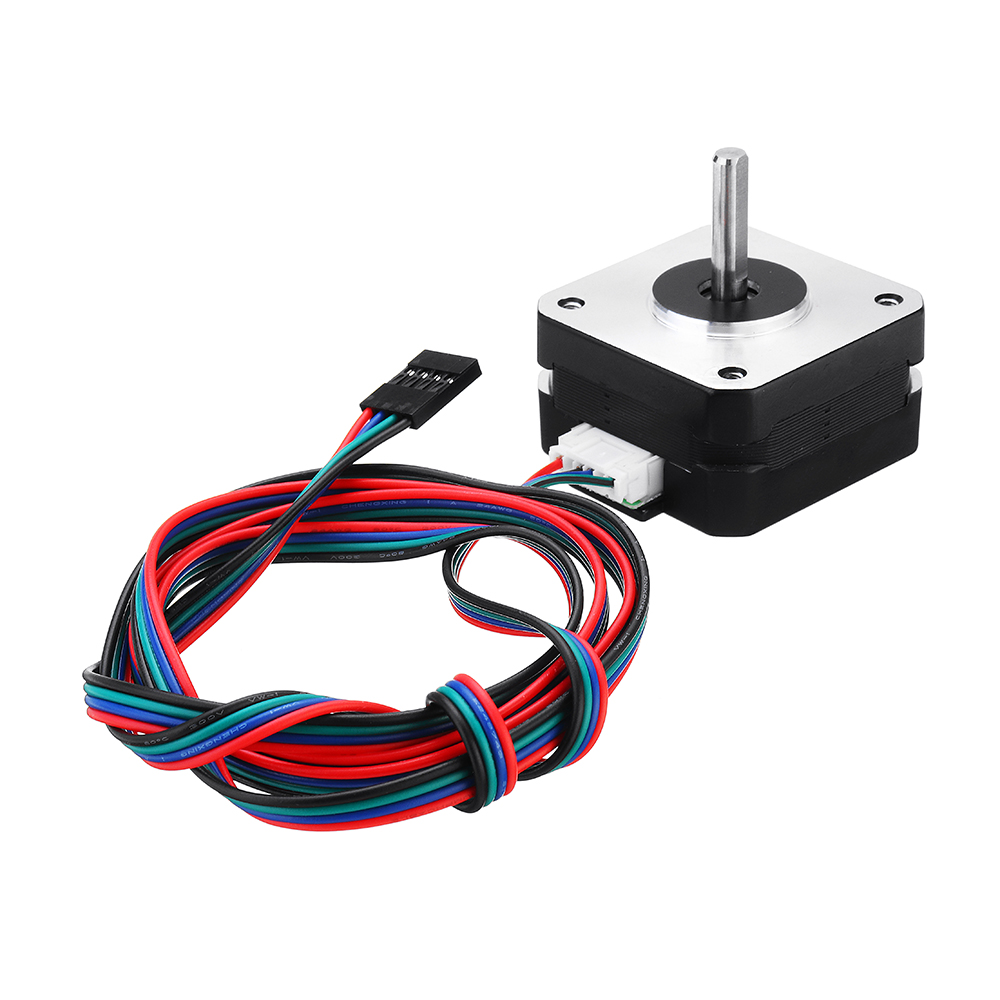

Nema 17 17HS4023 3D printer Titan Extruder stepper motor

Description: The Nema 17 17HS4023 stepper motor is specifically designed for use with Titan Extruders in 3D printers, offering precise control and reliability. It features a standard Nema 17 frame size with a 1.8° step angle (200 steps per revolution), making it suitable for applications requiring accurate positioning and torque. This stepper motor is ideal for driving filament through 3D printer extruders, ensuring smooth and consistent material flow during printing. Key Features:

• Model: Nema 17 17HS4023
• Step Angle: 1.8°
• Holding Torque: 48 Ncm (68 oz.in)
• Rated Voltage: 12V (DC)
• Rated Current: 1.33A
• Phase Resistance: 2.1 ohms
• Phase Inductance: 4.0 mH
• Shaft Diameter: 5 mm
• Shaft Length: 24 mm
• 4-wire bipolar configuration for easy connection

Technical Specifications:

• Frame Size: Nema 17 (42 x 42 mm)
• Mounting Holes: Standard Nema 17 hole pattern
• Weight: Approximately 280 g
• Operating Temperature: -20°C to +50°C
• Insulation Class: B (130°C)

Applications:

• 3D Printers (Compatible with Titan Extruders)
• CNC Machines
• Robotics and Automation
• Motion Control Systems
