Description

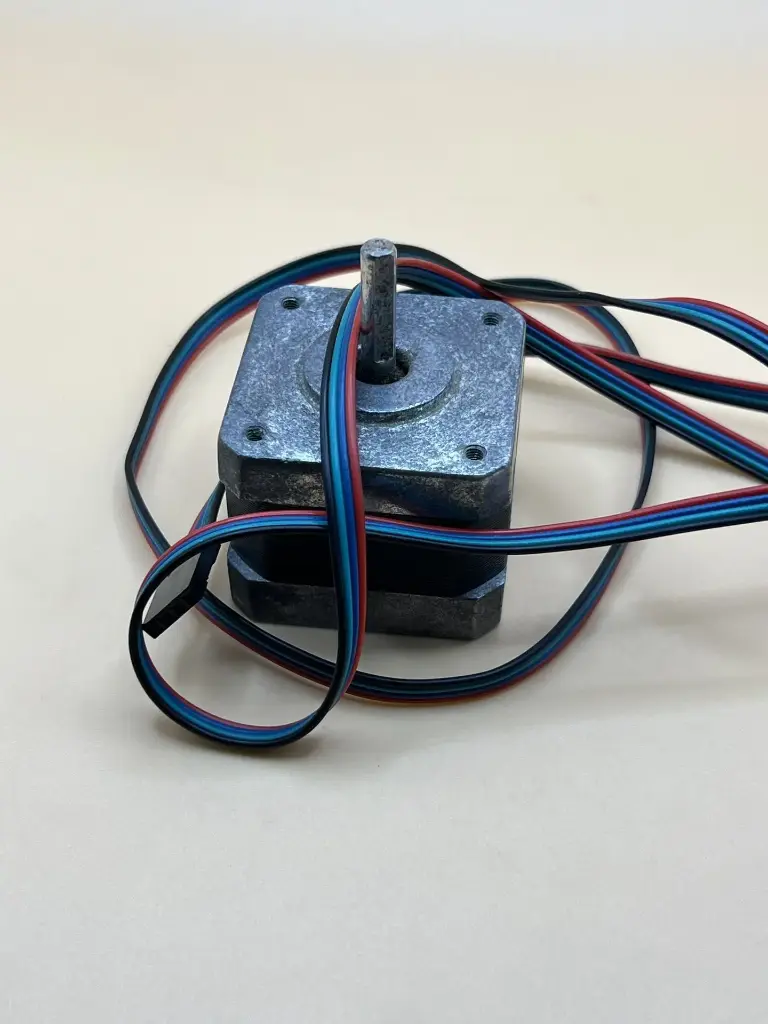

The Nema 17 17HS4023 is a compact “pancake” stepper motor specifically designed for use with Titan Extruders and other direct-drive extruder setups in 3D printers. Its slim 23mm body length reduces weight on the print head, making it ideal for Bowden and direct-drive configurations where every gram matters. With a standard 1.8° step angle (200 steps per revolution) and a 4-wire bipolar configuration, it delivers reliable positioning and consistent filament feeding .
Key Features
- Compact Pancake Design: 42×42×23mm body length – significantly shorter and lighter than standard Nema 17 motors
- Titan Extruder Compatible: Specifically designed for Titan and similar extruder systems
- Bipolar 4-Wire Configuration: Easy connection with standard stepper drivers (A4988, DRV8825, TMC2208)
- 1.8° Step Angle: 200 steps per revolution for precise positioning
- Low Weight: Reduces inertia on the print head for faster, more accurate extrusion
- D-Cut Shaft: 5mm diameter with flat section for secure set-screw coupling
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 17HS4023 |
| Frame Size | Nema 17 (42×42mm) |
| Body Length | 23mm (pancake) |
| Step Angle | 1.8° ±5% (200 steps/rev) |
| Holding Torque | 13–14 N·cm (18.4–19.8 oz·in) |
| Rated Current | 1.0A per phase |
| Phase Resistance | 4.0–4.1 Ω ±10% |
| Phase Inductance | 3.2–3.6 mH ±20% |
| Rated Voltage | 4.1V (12–36V supply recommended) |
| Shaft Diameter | 5mm |
| Shaft Length | 20–22mm (D-cut 16.5mm) |
| Number of Leads | 4 (Black=A+, Green=A-, Red=B+, Blue=B-) |
| Insulation Class | B (130°C) |
| Weight | ~135–200g |
| Operating Temperature | -20°C to +50°C |
Applications
- 3D Printer Extruders: Titan, Titan Aero, and similar direct-drive extruder systems
- CNC Machines: Light-duty positioning and axis control
- Robotics and Automation: Compact motion control where space is limited
- Stage Lighting and Laser Engraving: Precision movement in compact equipment.
