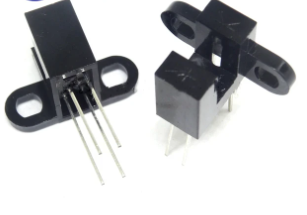

GK152 slot optocoupler

Description: The GK152 is a slot optocoupler designed for precise and reliable optical sensing in various electronic circuits. This optocoupler features a phototransistor output that ensures high sensitivity and rapid response times. It is ideal for applications such as object detection, position sensing, and encoder feedback where accurate optical isolation is essential. The slot design facilitates easy alignment and integration into existing systems. Key Features:

• Slot optocoupler with phototransistor output
• High sensitivity and fast response times
• Accurate and reliable optical sensing
• Easy alignment and integration
• RoHS compliant

Technical Specifications:

• Input Diode Forward Voltage (V_F): 1.2V (typical)
• Input Diode Reverse Voltage (V_R): 5V
• Collector-Emitter Voltage (V_CEO): 30V
• Emitter-Collector Voltage (V_ECO): 5V
• Collector Current (I_C): 20mA
• Slot Width: 3.2mm
• Response Time: 10µs (typical)
• Operating Temperature Range: -40°C to +85°C
• Package Type: Through Hole

Applications:

• Object detection
• Position sensing
• Encoder feedback
• Automation systems
• Industrial controls

Datasheet: For detailed technical information, refer to the GK152 Slot Optocoupler Datasheet.
