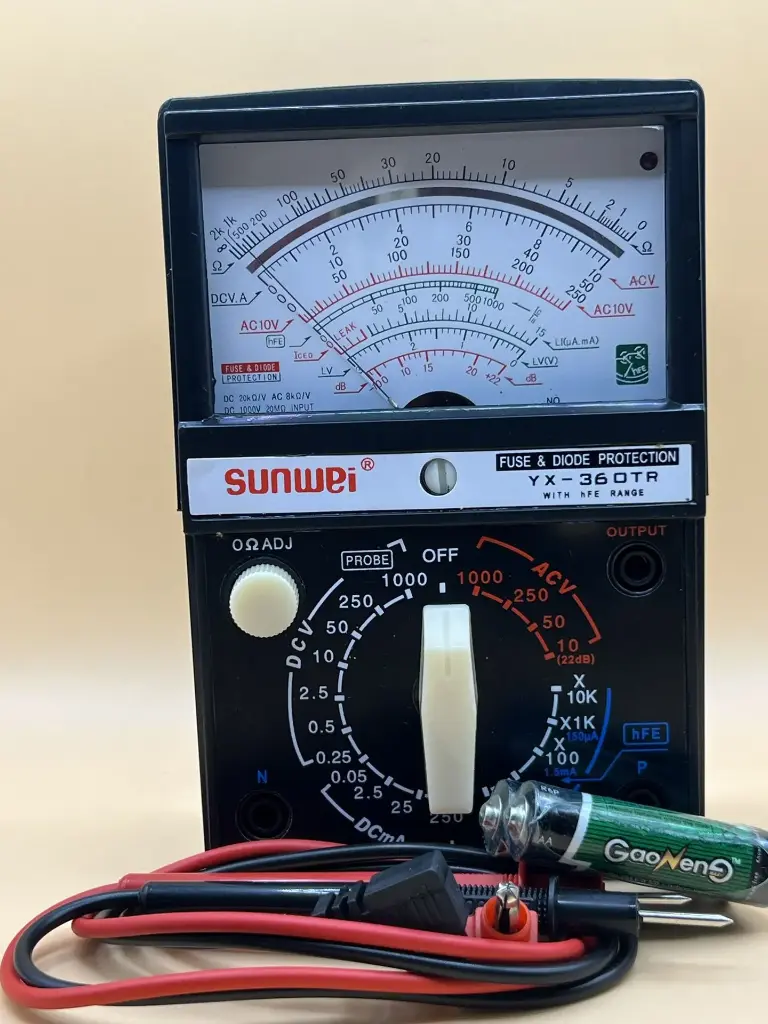

Sunwai analog multimeter YX-360TR
7 sold in last 24 hours
The Sunwai YX-360TR is an analog multimeter designed for various electrical measurements. It offers a traditional needle display, providing a clear and intuitive readout of AC/DC voltage, DC current, resistance, and other parameters. This multimeter is suitable for both professionals and hobbyists who prefer analog displays for their responsiveness and simplicity.
Key Features:
- Measurement Functions:
- AC Voltage: Measures up to 1000V.
- DC Voltage: Measures up to 1000V.
- DC Current: Measures up to 10A.
- Resistance: Tests resistance up to 200MΩ.
- Continuity Test: Audible continuity test for quick checks.
- Diode Test: Checks diode functionality.

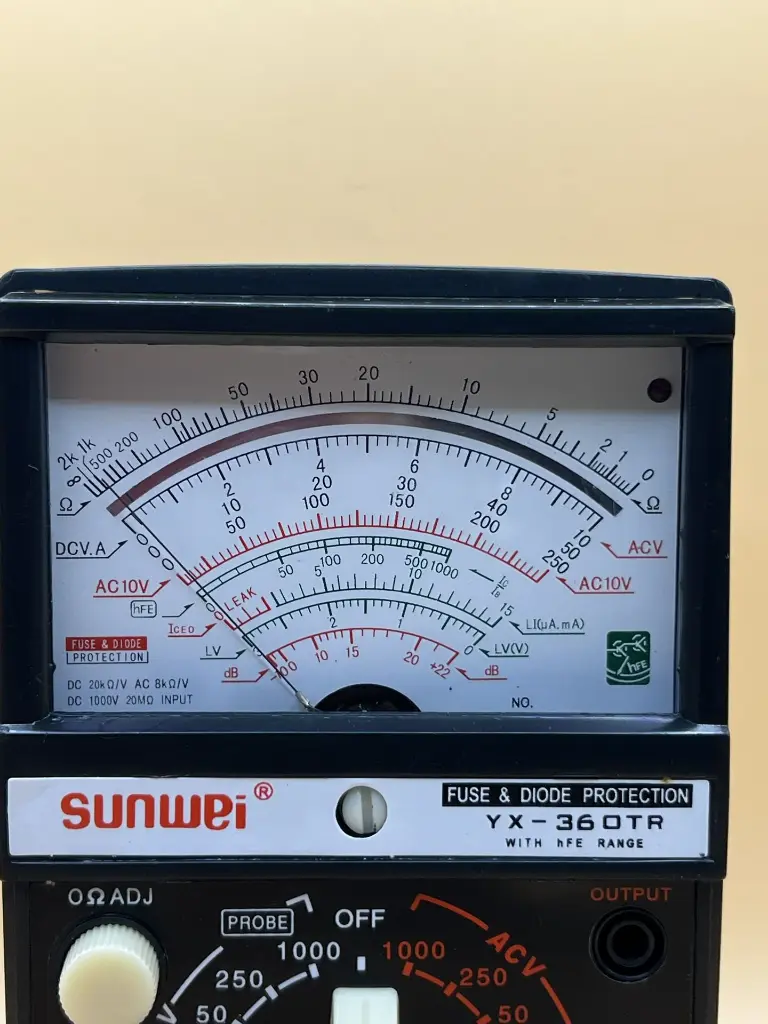

- Display: Analog needle display with mirror scale for accurate readings.
- Manual Ranging: Allows user to select the appropriate measurement range.
- Zero Adjuster: Provides a zero adjuster knob for accurate readings.
- Battery Test: Includes a function for testing 1.5V and 9V batteries.
- Safety Features: Built-in fuse and overload protection to ensure user safety.
- Accessories: Comes with test leads and a user manual.
- AC Voltage Ranges: 10V, 50V, 250V, 1000V
- DC Voltage Ranges: 0.1V, 0.5V, 2.5V, 10V, 50V, 250V, 1000V
- DC Current Ranges: 50µA, 2.5mA, 25mA, 250mA, 10A
- Resistance Ranges: x1, x10, x100, x1K, x10K, x100K, x1M
- Battery Test: 1.5V and 9V battery test function
- Power Supply: 2 x 1.5V AA batteries
- Dimensions: 150mm x 100mm x 35mm
- Weight: 250g (including batteries)
- Electrical Testing: Ideal for electricians, technicians, and hobbyists for measuring voltage, current, resistance, and more in circuits and appliances.
- Maintenance: Useful for troubleshooting electrical equipment and systems.
- Field Work: Portable design makes it suitable for on-site measurements and inspections.
- Overload Protection: Protects against accidental voltage spikes and current overloads.
- Built-in Fuse: Provides additional safety for high-current measurements.
