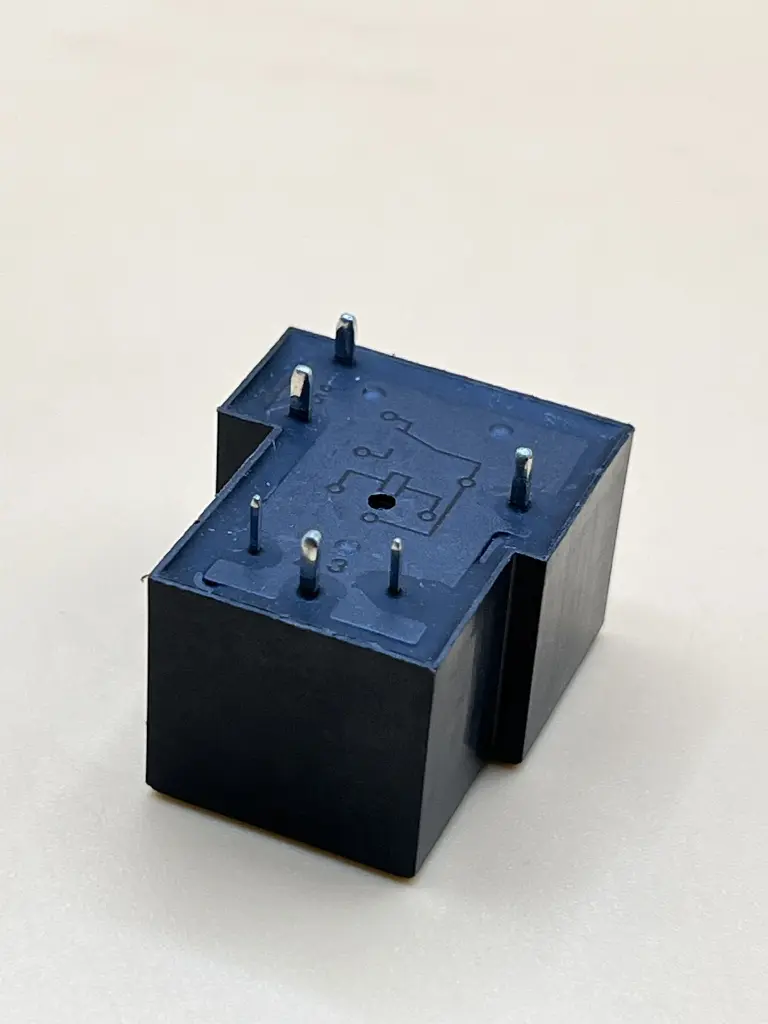

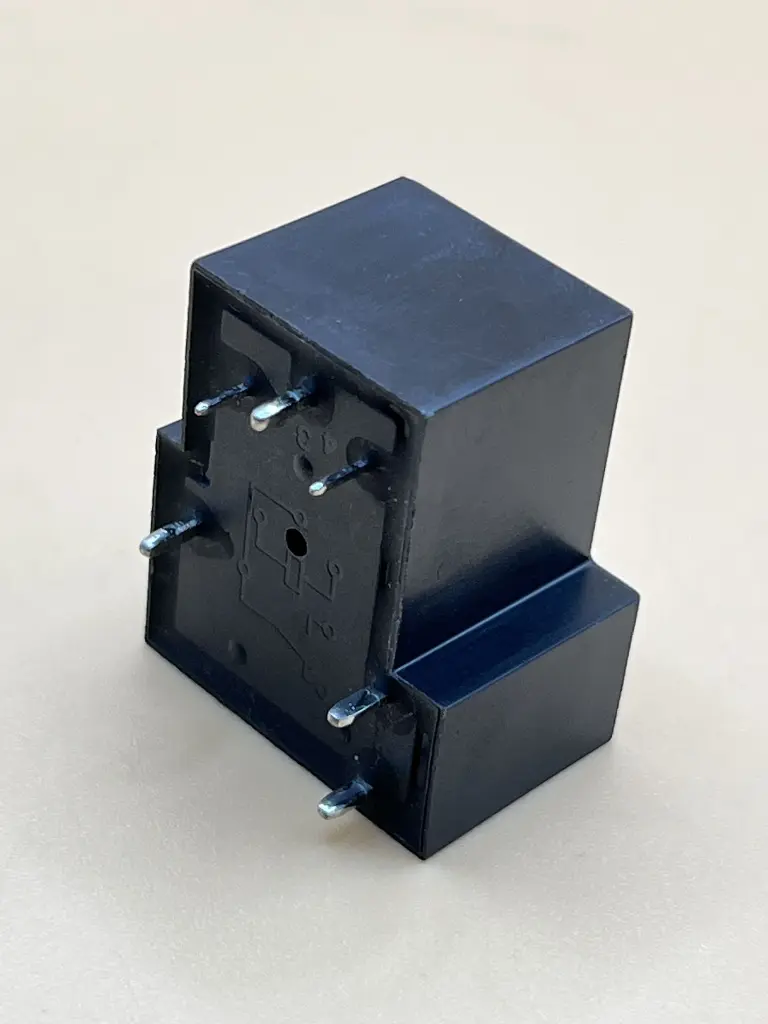

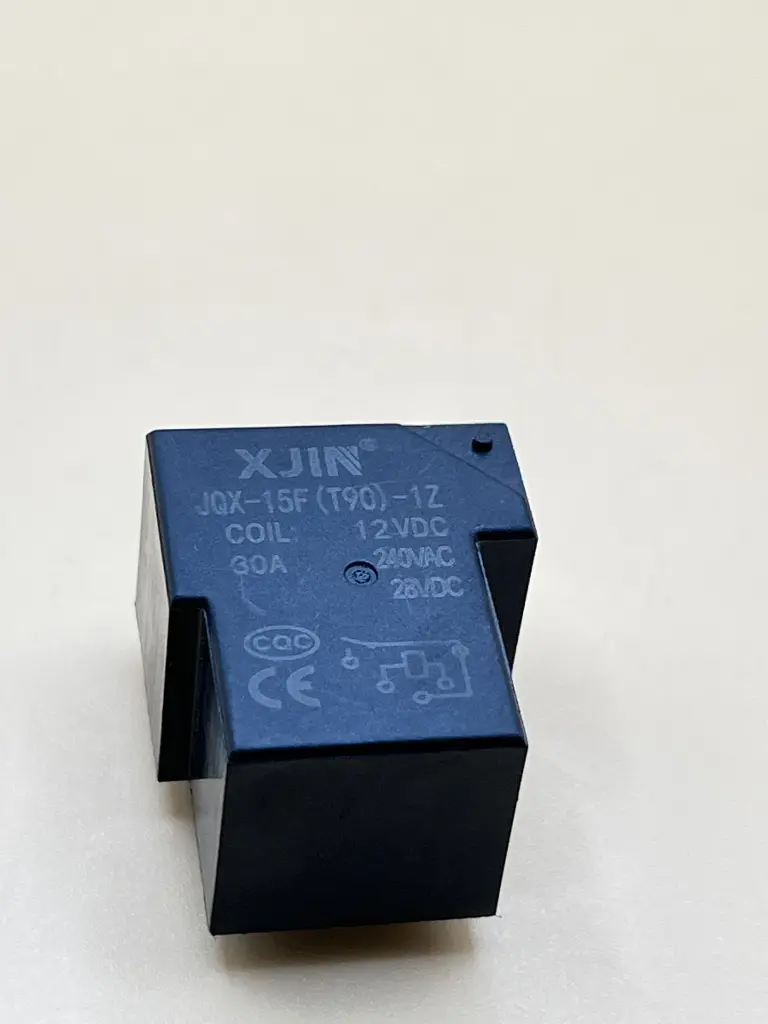

JQX-15F(90) 12VDC 30A 6Pin Relay
The JQX-15F(90) 12VDC 30A 6-Pin Relay is a high-capacity electromechanical relay designed for switching high current loads. It features a robust construction with a 6-pin configuration, making it suitable for a wide range of applications in automotive, industrial, and home automation systems. The relay operates on a 12V DC coil voltage and can handle up to 30A of current.
Key Features:
- Coil Voltage: 12V DC
- Contact Rating: 30A at 250V AC or 30V DC
- Pin Configuration: 6-pin
- Contact Form: DPDT (Double Pole Double Throw)
- Durable Construction: High-quality materials for long-lasting performance
- Mounting: Standard socket for easy installation and replacement
- Protection: Insulated housing to prevent accidental short circuits
- Coil Voltage: 12V DC
- Contact Rating:
- AC: 30A at 250V AC
- DC: 30A at 30V DC
- Contact Form: DPDT
- Electrical Life: 100,000 operations (at full load)
- Mechanical Life: 10,000,000 operations
- Coil Resistance: 160 Ω (approx.)
- Operate Time: ≤ 15 ms
- Release Time: ≤ 10 ms
- Insulation Resistance: ≥ 100MΩ (at 500V DC)
- Dielectric Strength:
- Between Coil & Contacts: 1500V AC for 1 minute
- Between Open Contacts: 1000V AC for 1 minute
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 5% to 85% RH
- Dimensions: 35mm x 35mm x 52mm (L x W x H)
- Weight: Approximately 60g
- Automotive: Used for controlling high-current loads such as headlights, motors, and heaters.
- Industrial Control: Suitable for machinery, HVAC systems, and industrial equipment.
- Home Automation: Used in smart home systems for controlling appliances and lighting.
- Power Supplies: Switching high-current power supplies and inverters.
