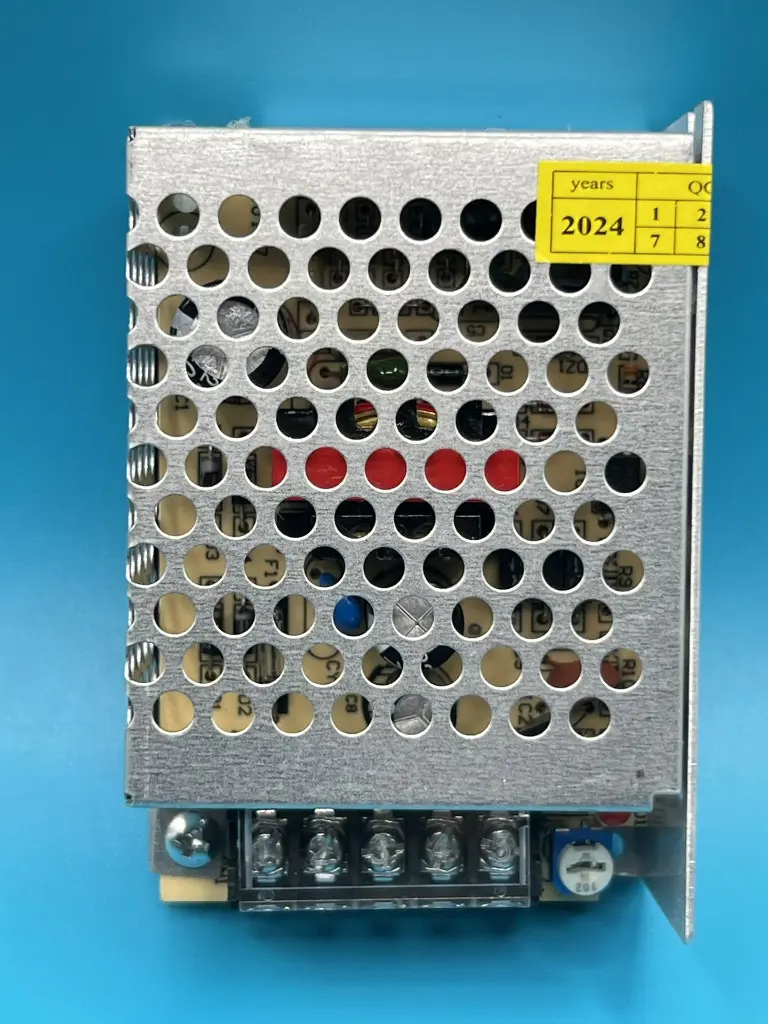

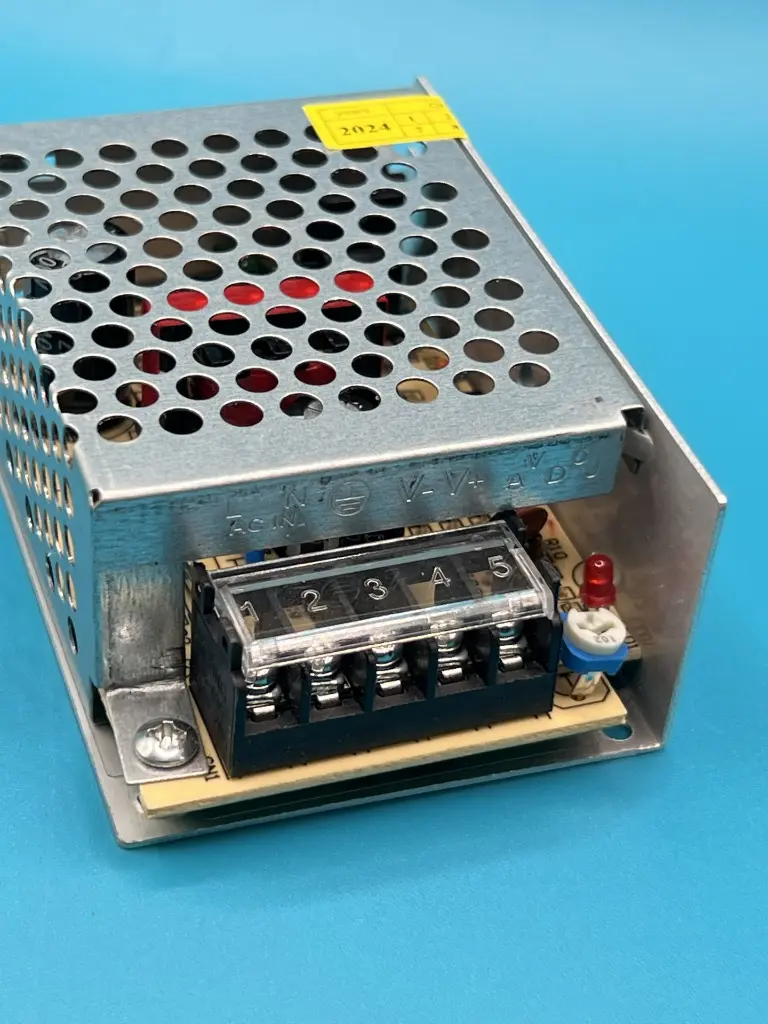

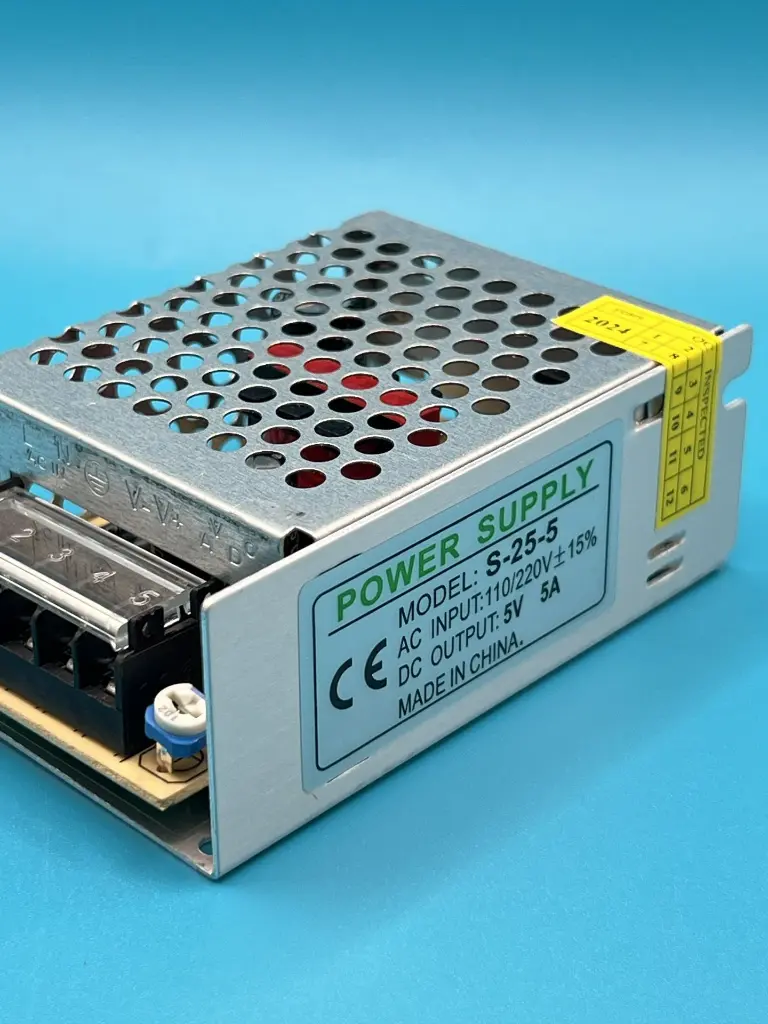

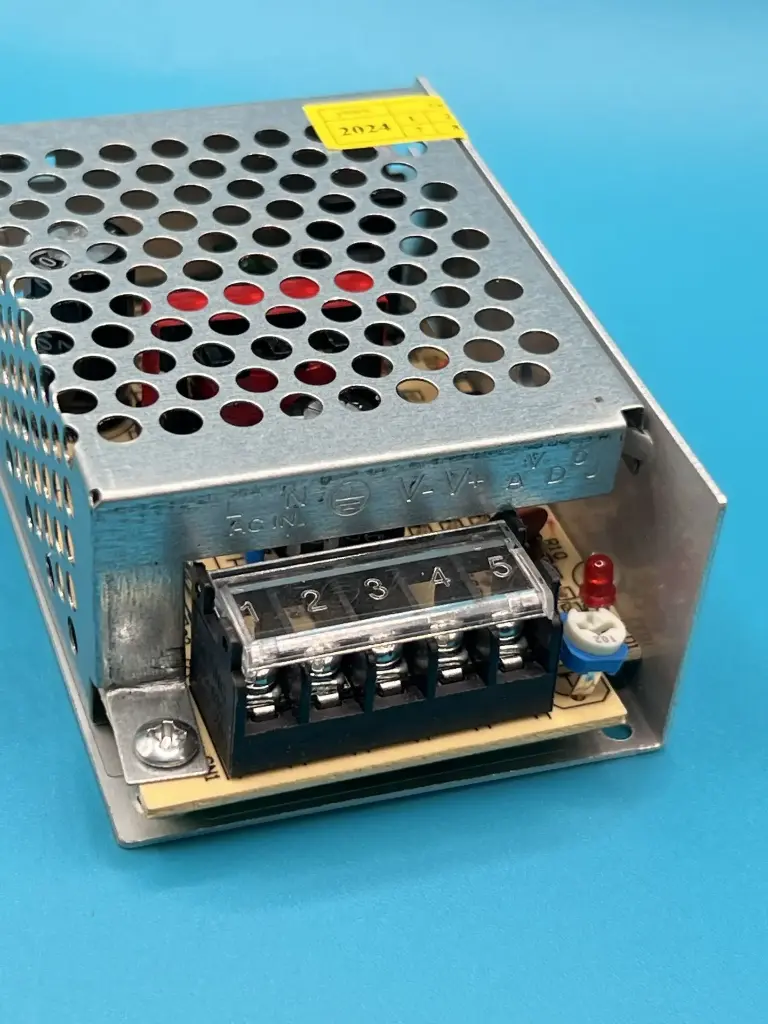

5V 5A Power Supply
The 5V 5A Power Supply is a compact and reliable power source designed to provide a stable 5V output with a maximum current of 5A. It is suitable for a variety of applications, including powering single-board computers like the Raspberry Pi, LED strips, small electronics projects, and other devices that require a steady 5V DC supply. The power supply features over-voltage, over-current, and short-circuit protection to ensure the safety and longevity of connected devices.
Key Features:
- Output Voltage: 5V DC
- Output Current: 5A
- Power Output: 25W
- Input Voltage: 100-240V AC, 50/60Hz
- Connector Type: Screw terminals or DC barrel jack
- Protection: Over-voltage, over-current, and short-circuit protection
- Efficiency: High efficiency for consistent power delivery
- Cooling: Built-in cooling or heat dissipation mechanism
- Certifications: CE, FCC, RoHS compliant
- Output Voltage: 5V DC ± 5%
- Output Current: 5A
- Power Output: 25W
- Input Voltage: 100-240V AC, 50/60Hz
- Ripple & Noise: ≤ 100mV
- Load Regulation: ± 2%
- Line Regulation: ± 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0% to 95% non-condensing
- Dimensions: Approx. 120mm x 60mm x 35mm
- Weight: 200 g
- Connector Type: Screw terminals or 5.5mm x 2.1mm DC barrel jack
- Cooling: Passive cooling or built-in fan (depending on model)
- Single-board Computers: Ideal for powering Raspberry Pi, Arduino, and other microcontroller projects.
- LED Strips: Suitable for small-scale 5V LED strip installations.
- Electronics Projects: Perfect for powering small electronics and DIY projects.
- Communication Equipment: Can be used to power communication devices and networking equipment requiring 5V.
- Industrial Use: Suitable for industrial control systems and small-scale automation projects.
