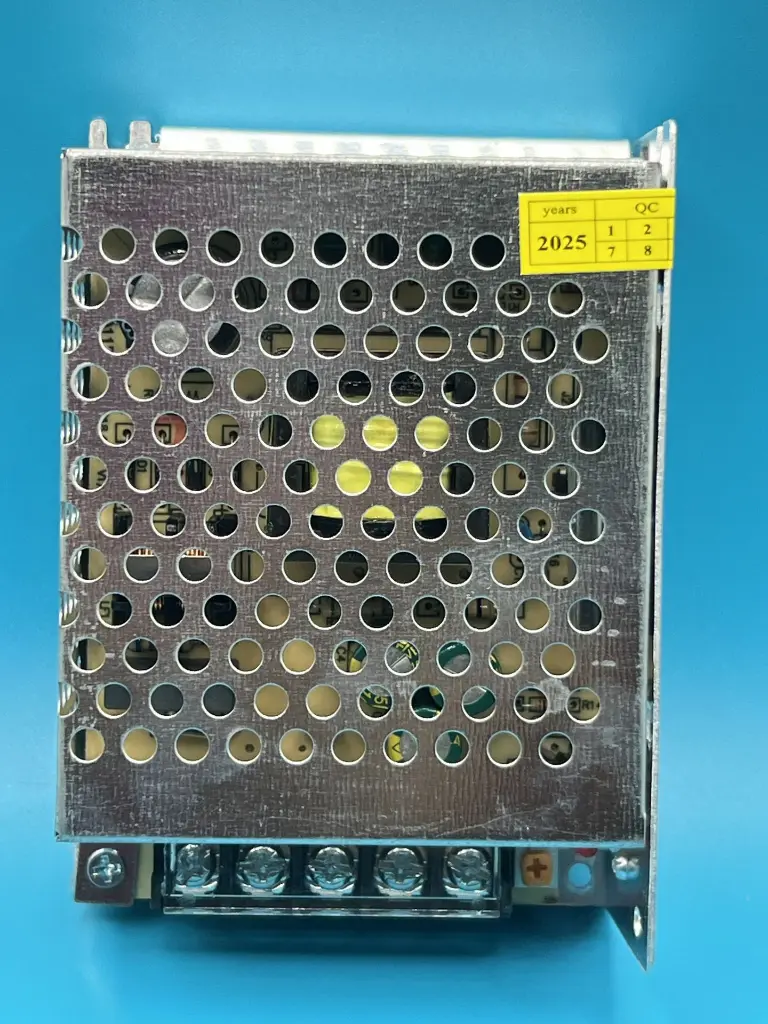

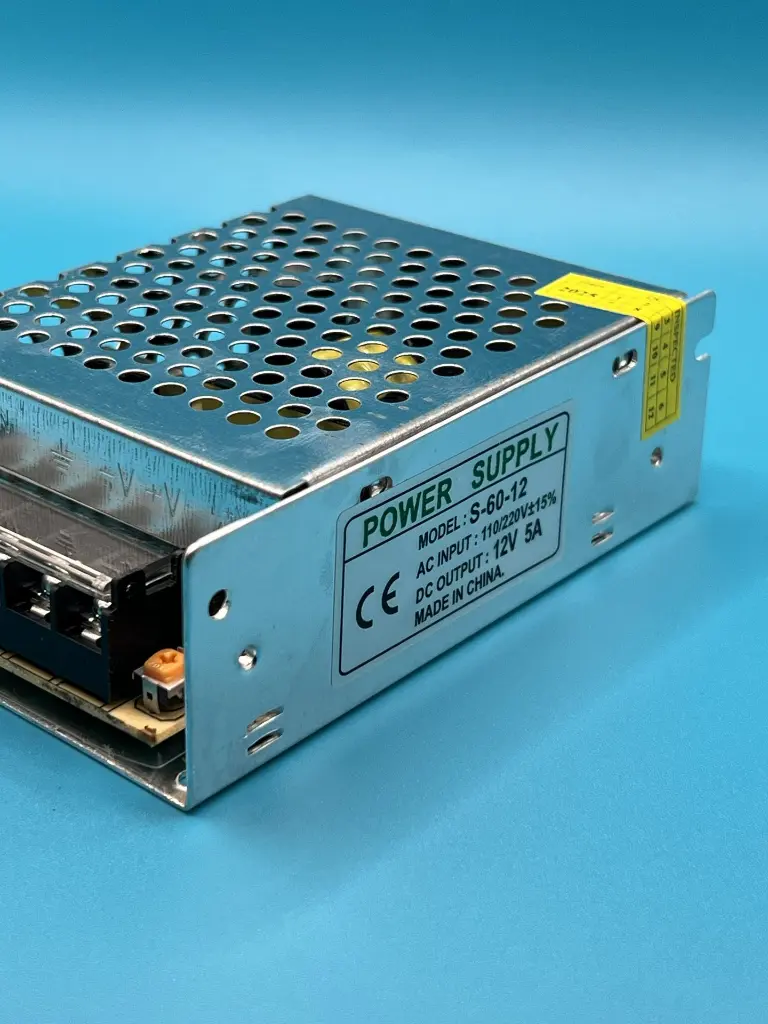

12V 5A Power Supply
The 12V 5A Power Supply is a compact and reliable power source designed to provide a stable 12V output with a maximum current of 5A. It is suitable for a variety of applications, including powering CCTV cameras, LED lighting systems, small electronics projects, and other devices that require a steady 12V DC supply. The power supply features over-voltage, over-current, and short-circuit protection to ensure the safety and longevity of connected devices.
Key Features:
- Output Voltage: 12V DC
- Output Current: 5A
- Power Output: 60W
- Input Voltage: 100-240V AC, 50/60Hz

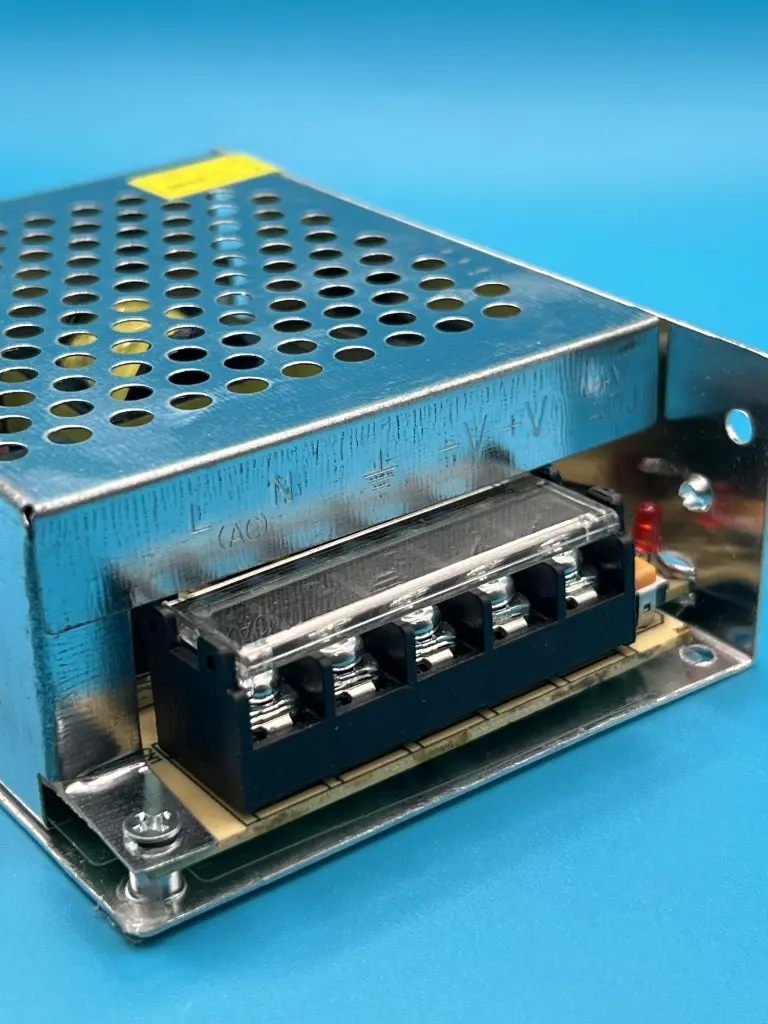

- Connector Type: Screw terminals or DC barrel jack
- Protection: Over-voltage, over-current, and short-circuit protection
- Efficiency: High efficiency for consistent power delivery
- Cooling: Built-in cooling or heat dissipation mechanism
- Certifications: CE, FCC, RoHS compliant
- Output Voltage: 12V DC ± 5%
- Output Current: 5A
- Power Output: 60W
- Input Voltage: 100-240V AC, 50/60Hz
- Ripple & Noise: ≤ 150mV
- Load Regulation: ± 1%
- Line Regulation: ± 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0% to 95% non-condensing
- Dimensions: Approx. 150mm x 70mm x 40mm
- Weight: 300 g
- Connector Type: Screw terminals or 5.5mm x 2.1mm DC barrel jack
- Cooling: Passive cooling or built-in fan (depending on model)
- CCTV Systems: Ideal for powering surveillance cameras and security systems.
- LED Lighting: Suitable for small-scale 12V LED lighting installations.
- Electronics Projects: Perfect for powering small electronics and microcontroller projects.
- DIY Applications: Useful for hobbyists and makers working on various 12V projects.
- Communication Equipment: Can be used to power communication devices and networking equipment requiring 12V.
