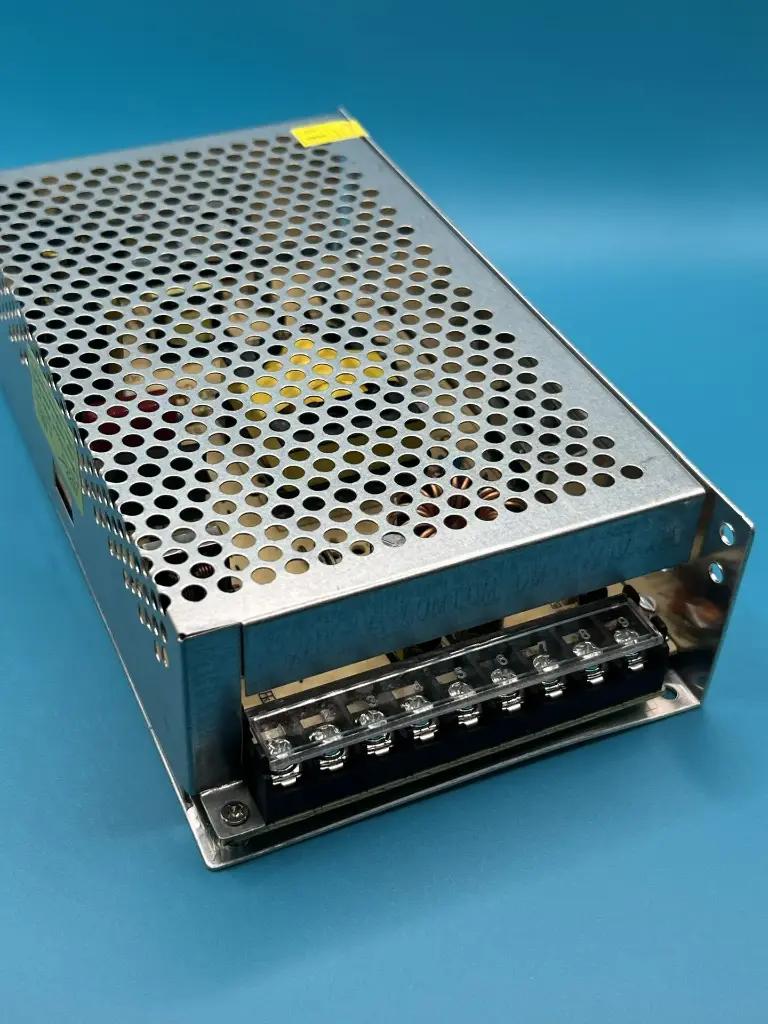

12V 20A Power Supply
7 sold in last 24 hours
The 12V 20A Power Supply is a robust and efficient power source designed to deliver a stable 12V output with a maximum current of 20A. This power supply is suitable for a wide range of applications, including powering LED strips, CCTV cameras, 3D printers, industrial equipment, and other electronic devices that require a reliable 12V DC supply. It features over-voltage, over-current, and short-circuit protection to ensure the safety and longevity of connected devices.
Key Features:
- Output Voltage: 12V DC
- Output Current: 20A
- Power Output: 240W
- Input Voltage: 100-240V AC, 50/60Hz
- Connector Type: Screw terminals or DC barrel jack
- Protection: Over-voltage, over-current, and short-circuit protection
- Efficiency: High efficiency for consistent power delivery
- Cooling: Built-in cooling fan or heat dissipation mechanism
- Certifications: CE, FCC, RoHS compliant
- Output Voltage: 12V DC ± 5%
- Output Current: 20A
- Power Output: 240W
- Input Voltage: 100-240V AC, 50/60Hz
- Ripple & Noise: ≤ 150mV
- Load Regulation: ± 1%
- Line Regulation: ± 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0% to 95% non-condensing
- Dimensions: Approx. 215mm x 115mm x 50mm
- Weight: 800 g
- Connector Type: Screw terminals or 5.5mm x 2.1mm DC barrel jack
- Cooling: Active cooling with built-in fan
- LED Strips: Ideal for powering 12V LED strips and other lighting projects.
- CCTV Cameras: Suitable for powering security cameras and surveillance systems.
- 3D Printers: Provides reliable power for 12V 3D printing applications.
- Industrial Use: Suitable for industrial control systems and other applications requiring a stable 12V power source.
- DIY Electronics: Perfect for hobbyists and makers working on various electronics projects.
- Communication Equipment: Can be used to power communication devices and networking equipment.
