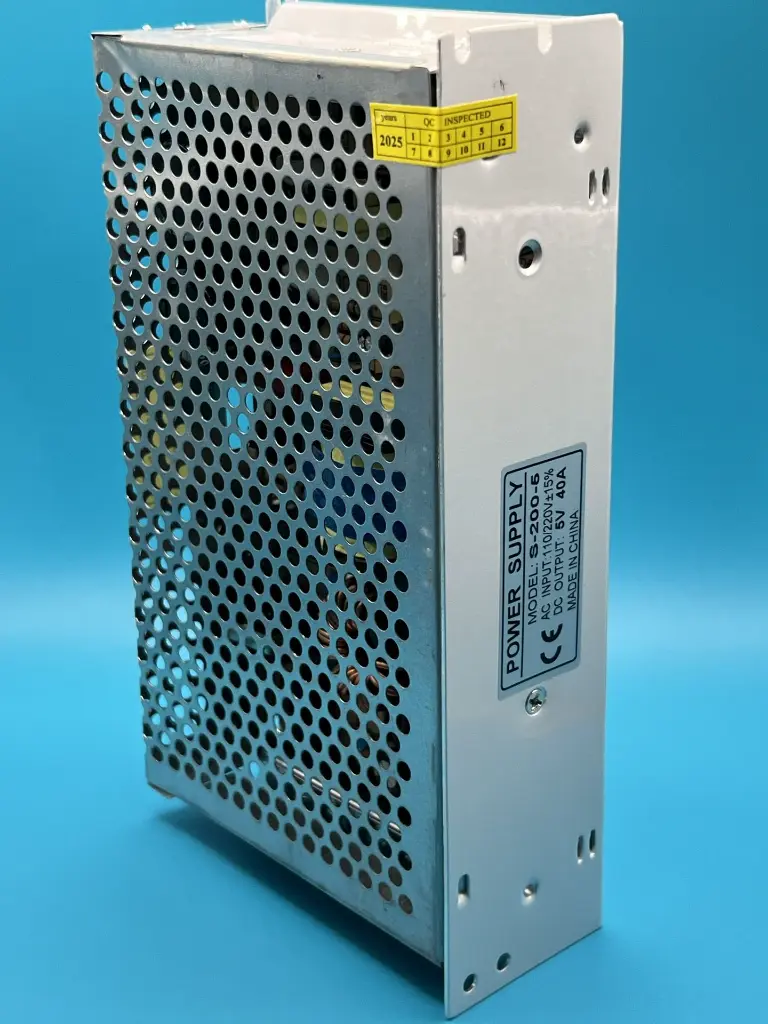

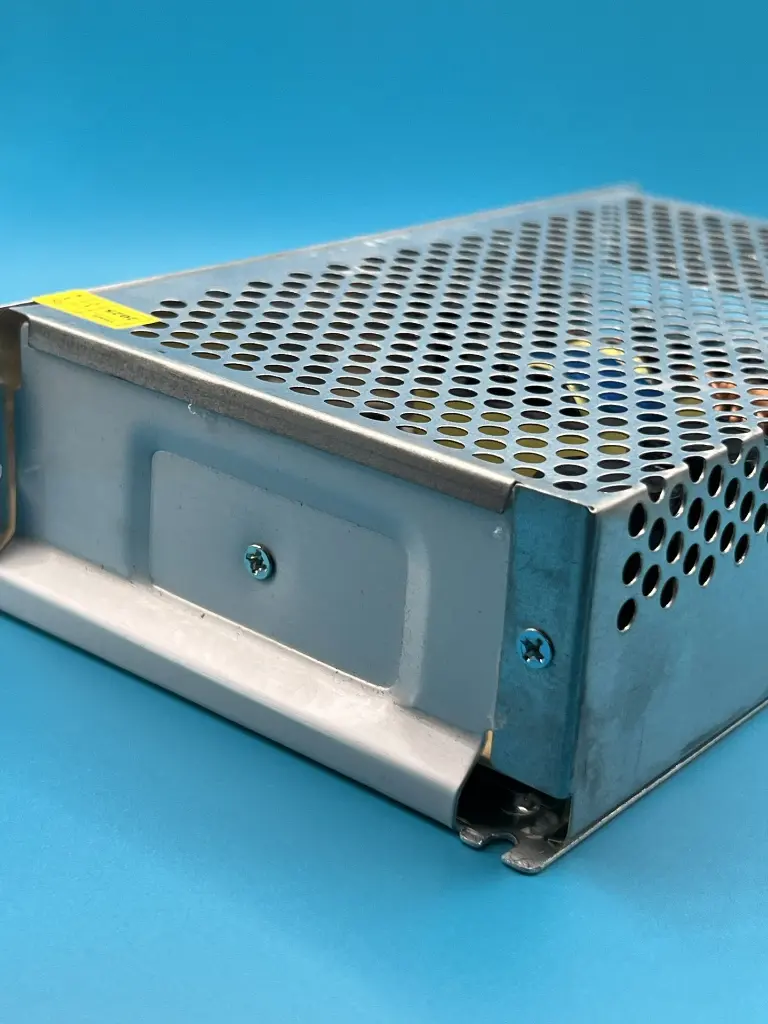

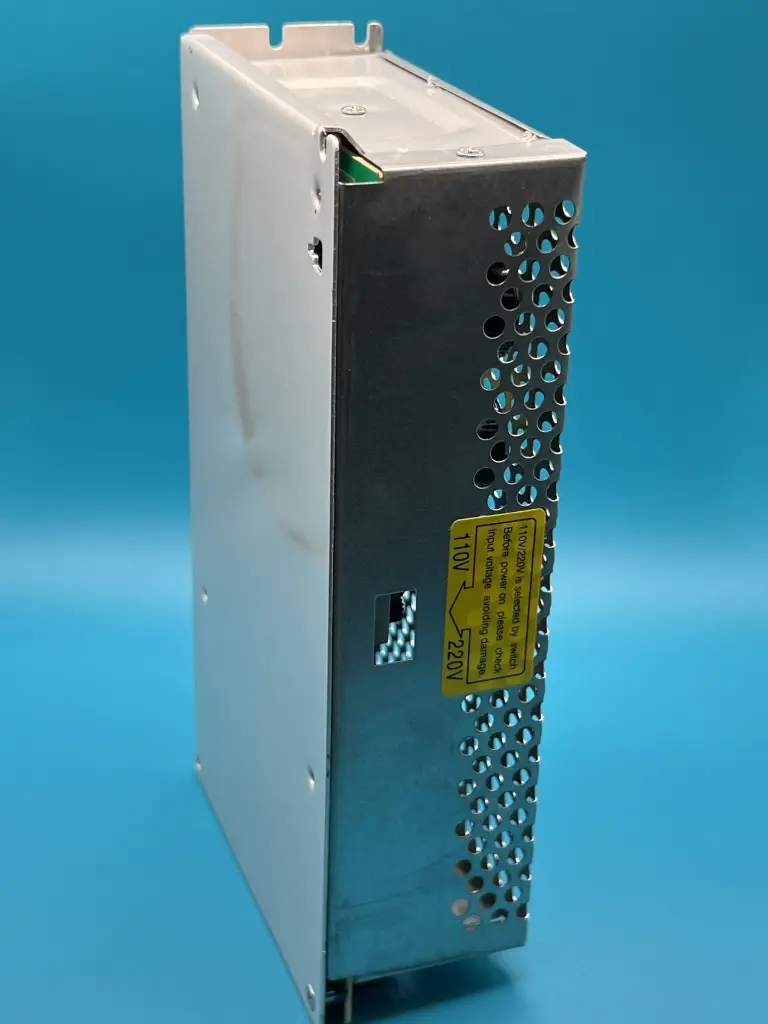

5V 40A Power Supply
The 5V 40A Power Supply is a high-power, reliable power source designed to deliver a stable 5V output with a maximum current of 40A. It is ideal for applications requiring significant current at 5V, such as powering multiple single-board computers, large LED displays, high-power electronics projects, and other devices. The power supply features over-voltage, over-current, and short-circuit protection to ensure safety and reliability.
Key Features:
- Output Voltage: 5V DC
- Output Current: 40A
- Power Output: 200W
- Input Voltage: 100-240V AC, 50/60Hz
- Connector Type: Screw terminals
- Protection: Over-voltage, over-current, and short-circuit protection
- Efficiency: High efficiency for consistent power delivery
- Cooling: Built-in cooling fan for heat dissipation
- Certifications: CE, FCC, RoHS compliant
- Output Voltage: 5V DC ± 5%
- Output Current: 40A
- Power Output: 200W
- Input Voltage: 100-240V AC, 50/60Hz
- Ripple & Noise: ≤ 150mV
- Load Regulation: ± 1%
- Line Regulation: ± 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 0% to 95% non-condensing
- Dimensions: Approx. 215mm x 115mm x 50mm
- Weight: 700 g
- Connector Type: Screw terminals
- Cooling: Active cooling with built-in fan
- Single-board Computers: Ideal for powering multiple Raspberry Pi, Arduino, and other microcontroller projects.
- LED Displays: Suitable for large 5V LED displays and extensive lighting installations.
- DIY Electronics: Perfect for hobbyists and makers working on high-power electronics projects.
- Industrial Use: Suitable for industrial electronics and control systems requiring high current at 5V.
- Communication Equipment: Can be used to power communication devices and networking equipment.
- Server Power Supplies: Useful for servers and other high-power 5V applications.
