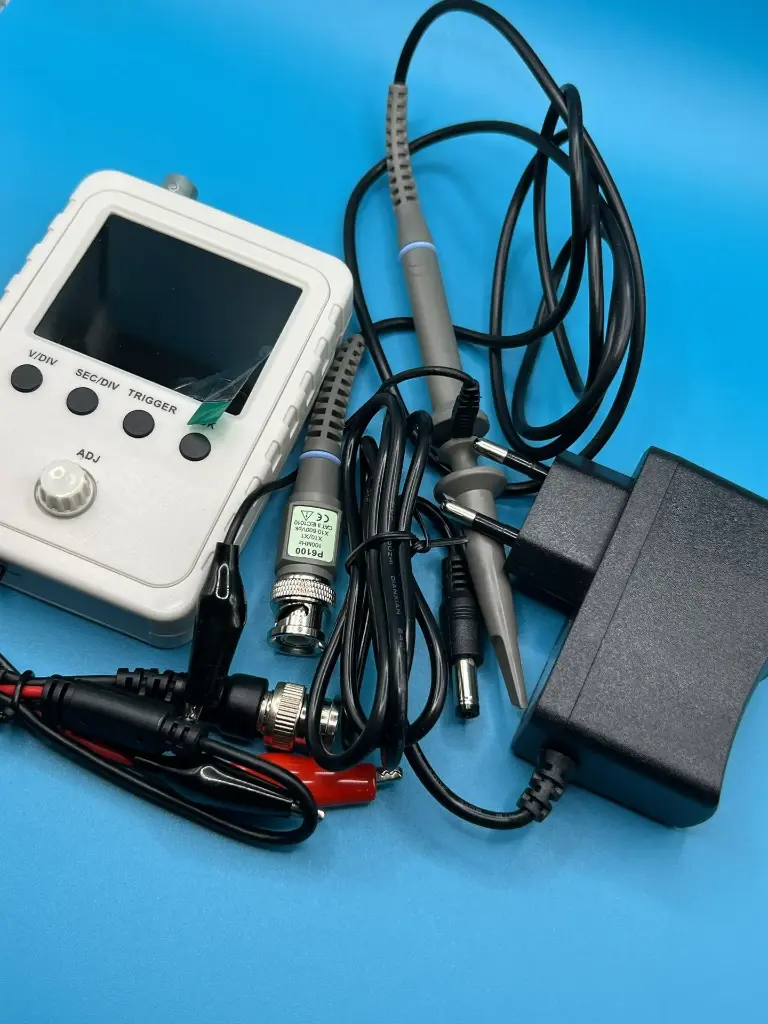

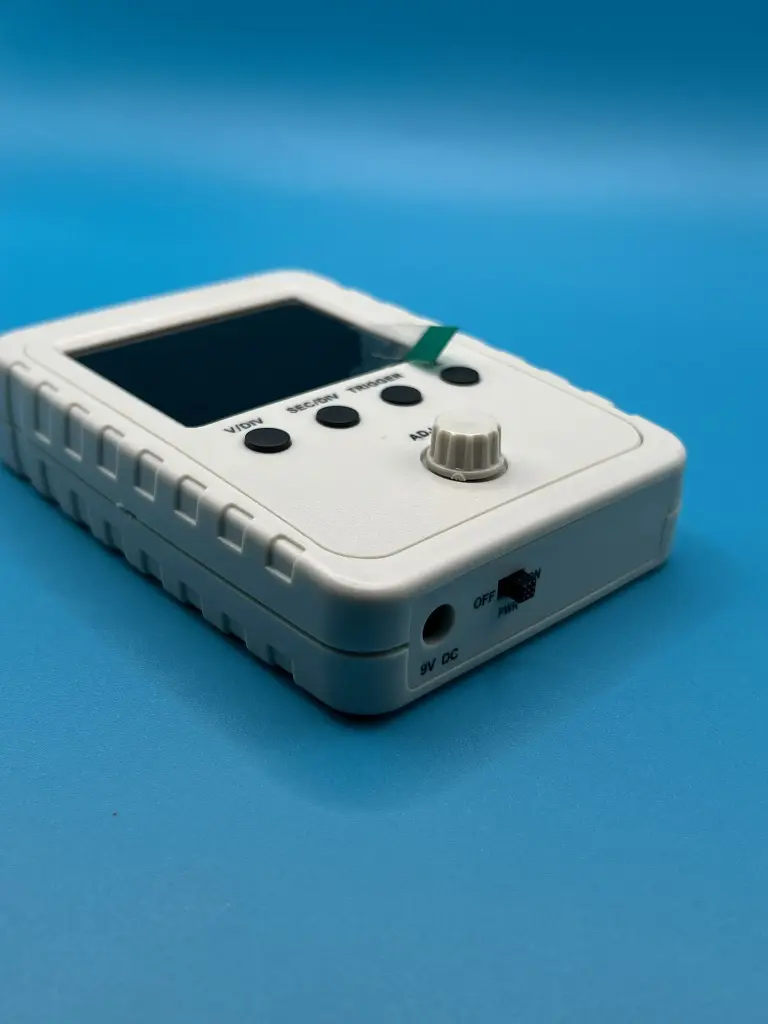

DSO150 Handheld Oscilloscope
The DSO150 Handheld Oscilloscope is a compact and portable digital oscilloscope designed for hobbyists, DIY enthusiasts, and educational purposes. It offers basic functionality with ease of use, making it suitable for simple signal measurements and troubleshooting. The oscilloscope features a clear display, intuitive controls, and essential features for basic electronic diagnostics.
Key Features:
- Bandwidth: 0-200kHz
- Channels: 1
- Sampling Rate: 1MSa/s
- Memory Depth: 1024 points
- Display: 2.4-inch color TFT LCD (320x240 resolution)
- Trigger Modes: Auto, Normal, Single
- Waveform Acquisition Modes: Normal, Peak Detect, Average
- Measurement Functions: Frequency, Period, Duty Cycle, MAX/MIN/AVG Voltage
- Vertical Resolution: 12 bits
- Vertical Sensitivity: 10mV/div to 5V/div
- Time Base Range: 10µs/div to 500s/div
- Input Impedance: 1MΩ
- Max Input Voltage: 50Vpp
- Coupling: DC, AC, GND

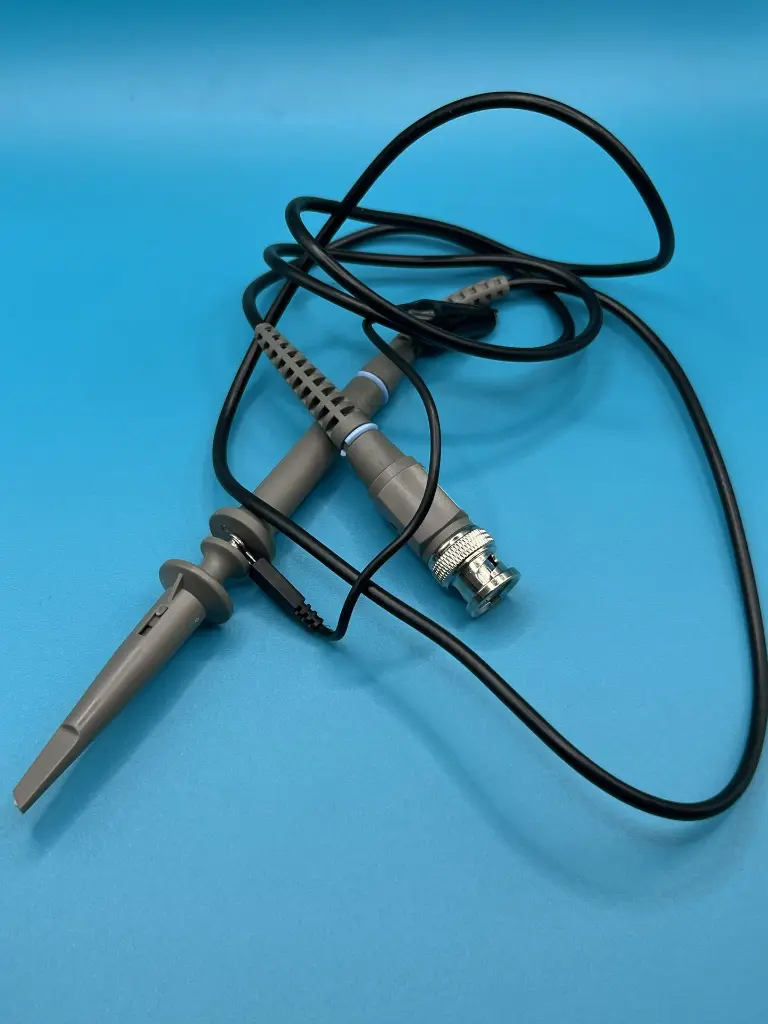

- Probes: 1 x 1x/10x passive probe

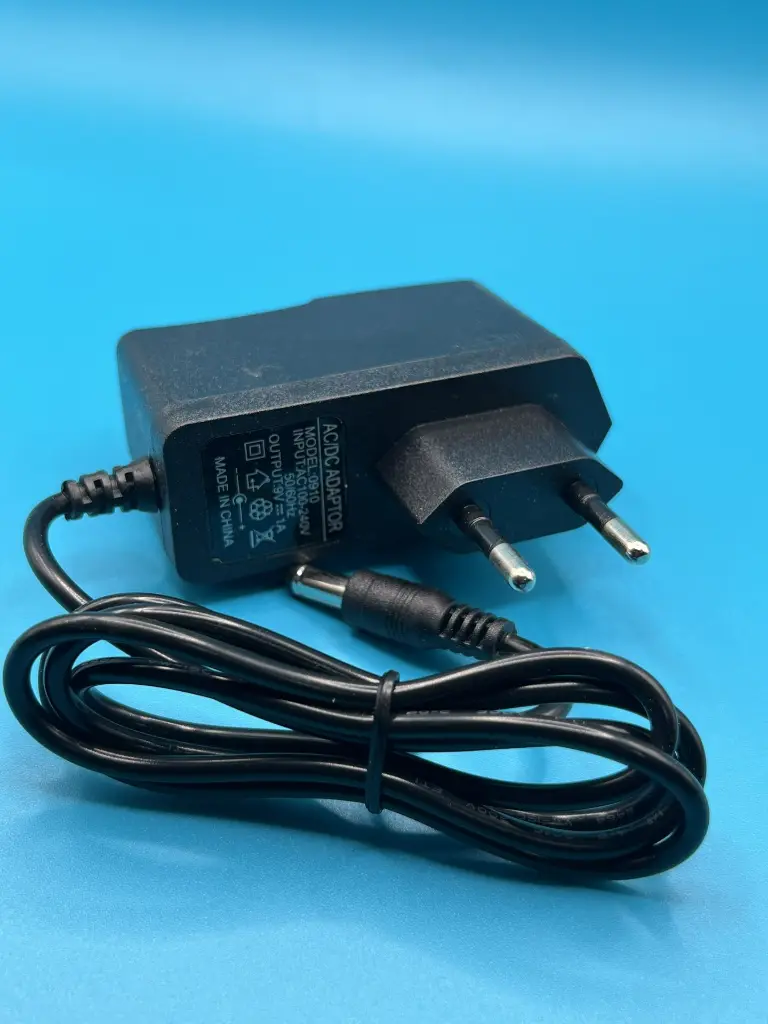

- Power Supply: 9V DC (Battery or external power supply)
- Dimensions: 115mm x 75mm x 22mm
- Weight: 150 g
- Interfaces: USB for power (optional)
- Education: Ideal for basic electronics education and training.
- Hobbyists: Suitable for DIY electronics projects and simple signal analysis.
- Field Service: Useful for on-the-go diagnostics and troubleshooting.
- Simple Testing: Adequate for basic electronic circuit testing and monitoring.
