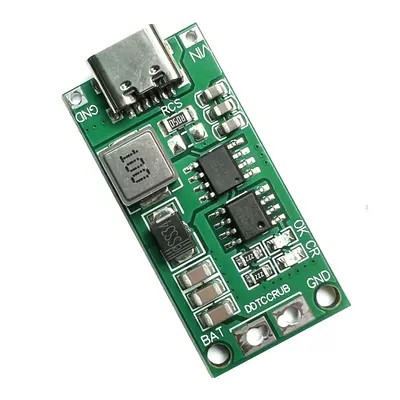

4S 4A Lipo charger with protection board
15 sold in last 24 hours
It is an efficient 4-cell LiPo charger with built-in safety protections and high current output, designed for demanding battery systems like the 4-cell LiPo battery pack. It has a Type-C input port and enables convenient charging directly from a computer or wall adapter using a compatible cable.
Key Features:
Key Features:
- Supports 4S battery packs
- 4A fast charge rate
- Advanced battery protection features
- Reliable integrated Battery management system
- Compact design:Space-saving design fits well in a wide range of projects and setups.
- LED Status Lights: Display the current charging state in real time.
- Boost Conversion: Effectively raises lower input voltages to 8.4V, ideal for charging 2S battery packs.
- Cells:4S
- Input voltage:DC 3-6V (recommended DC 3.7V 5V)
- Input Current:4A
- Charging Current:12A
- Switching Frequency:Reaches up to 1MHz
- Operating Temperature Range:-40°C to +85°C
- Charging Mode:Constant Current / Constant Voltage (CC/CV)
- LED Indicators: CR; Indicates charging is active, OK: Signals full charge or constant voltage stage
- Protection Features:Overvoltage, Undervoltage, Short-circuit, Over-charge, Over-discharge and Temperature protection.
- Dimensions: 39mm x 18mm x 6.3mm
- Weight: 5 grams
- Robotics
- UAVs
- High-power embedded systems
- Digital cameras
- MP3 and MP4 players
- Gaming consoles
