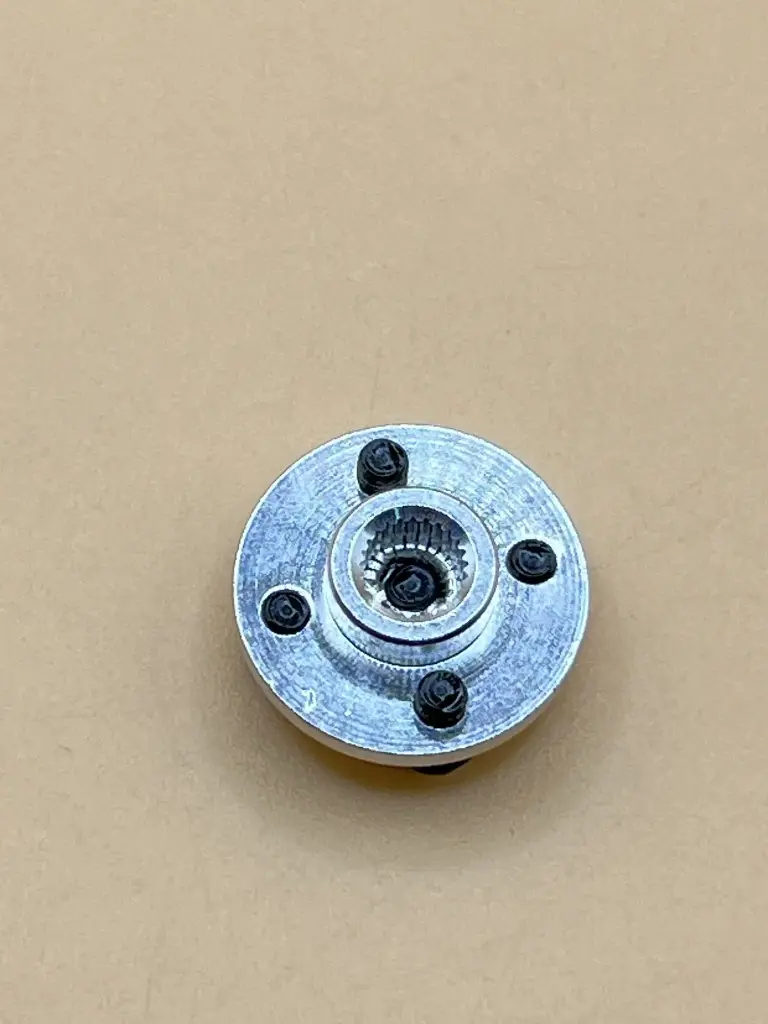

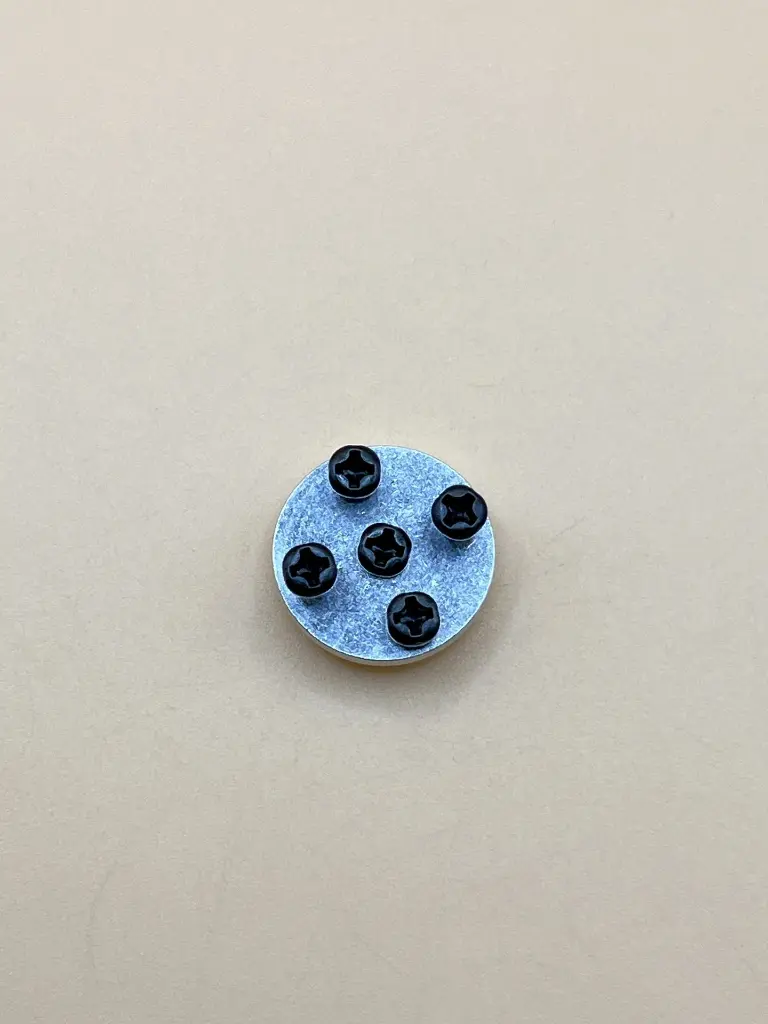

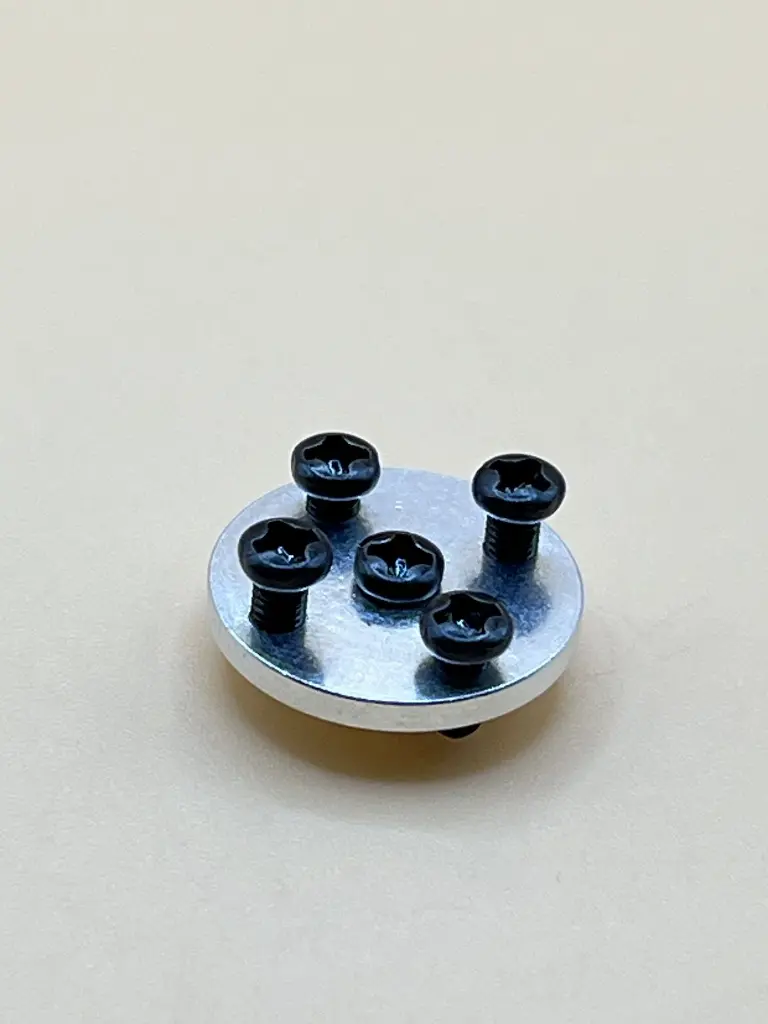

    The 25T Servo Metal Rudder Arm is a precision-engineered aluminum alloy horn designed for standard servo motors. With a sleek silver-white oxidized surface, this rudder arm offers exceptional strength, stability, and corrosion resistance. It’s an ideal upgrade for plastic servo horns, especially in high-torque or high-vibration environments such as robotics and RC applications.

    Features

    • Made from high-quality aluminum alloy for increased durability

    • Silver-white surface oxidation for corrosion resistance and sleek aesthetics

    • 25-tooth spline (25T) ensures secure fit on compatible servo motors

    • Tapped M3 mounting holes for easy and strong mechanical connections

    • Lightweight yet strong – ideal for demanding applications

    • Compatible with standard-sized servos (approximately 40×20×36mm)

    Specifications

    • Material: Aluminum alloy

    • Surface treatment: Silver-white anodized finish

    • Installation hole spacing: 14mm

    • Steering wheel (horn) diameter: 20mm

    • Spline (flower tooth) diameter: 5.5mm

    • Number of spline teeth: 25 (25T standard)

    • Mounting holes: Four tapped M3 holes

    • Compatible servo size: Standard servos (~40mm × 20mm × 36mm)

    Applications

    • RC cars, boats, airplanes

    • Robotic arms and joints

    • Pan-tilt camera modules

    • Mechanical linkages and steering systems

    • Custom DIY and maker projects involving servo motion
