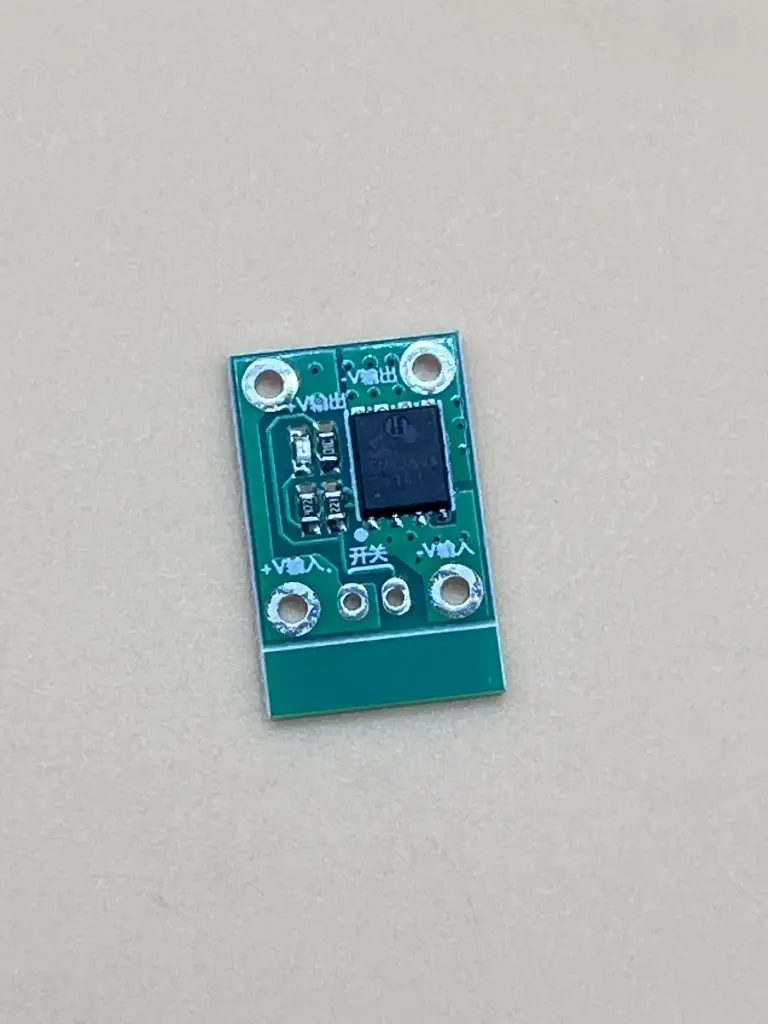

50A High Power Mosfet Switch

The 50A High Power MOSFET Switch Module is a robust and compact switching solution designed to control high-current DC loads with exceptional efficiency. Built for performance and durability, this module operates within a voltage range of 5V to 26V DC and supports continuous current loads up to 50A, making it ideal for motor control, power management, and smart automation systems.

Featuring a fast switching response and minimal heat generation due to its low internal resistance, this module provides a reliable option for handling large currents in compact electronic circuits. Whether you're managing a powerful DC motor or switching heavy LED arrays, the 50A MOSFET switch ensures precision and safety in every cycle.

Key Features

• High current capacity: Up to 50A continuous

• Wide voltage support: 5V to 26V DC

• Fast switching response for PWM control

• Low heat output and efficient power management

• Compact size for easy PCB or custom project integration

• Supports high-frequency PWM signals

• Plug-and-play with low signal activation

Specifications

• Current Rating: 50A continuous

• Voltage Range: 5V to 26V DC

• Switching Type: N-Channel MOSFET

• Dimensions: 16mm x 13mm

• Mounting Type: Through-hole

• Operating Temperature: -40°C to +85°C

• Control Interface: Logic-level signal / PWM input

Applications

• High-current DC motor control (robotics, CNC machines, fans)

• LED strip dimming or high-power lighting systems

• Battery pack protection and disconnection

• Solar system control switches

• Smart home automation with high load

• RC vehicles and drones with high current draw
