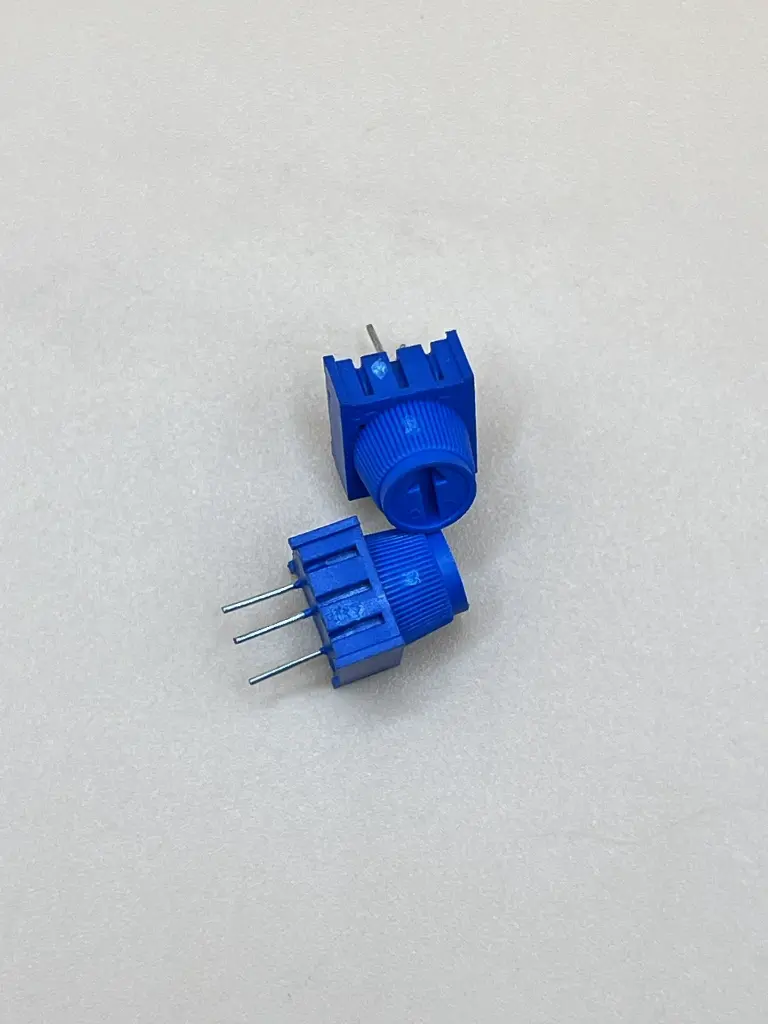

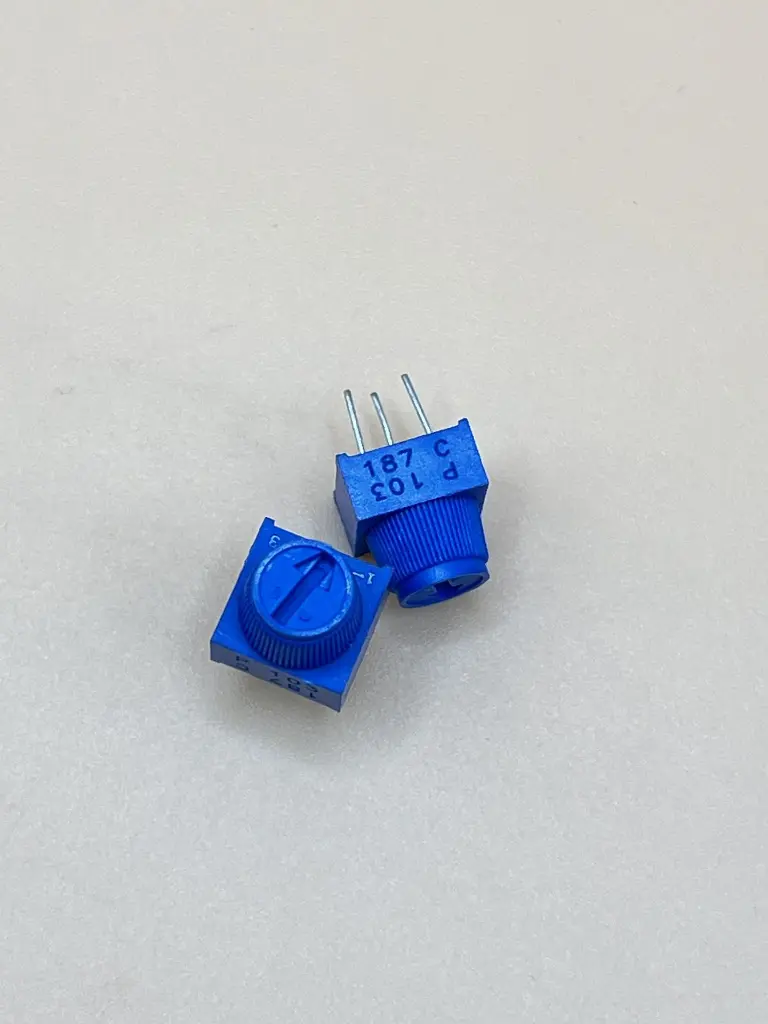

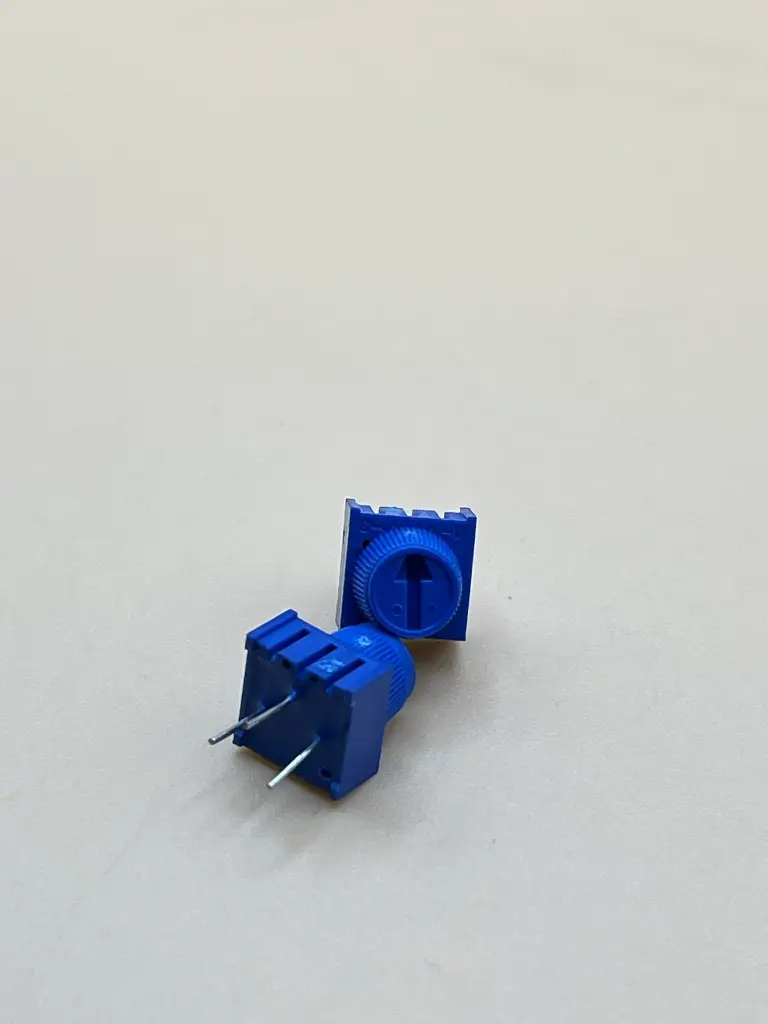

3386P-1-103 10K Potentiometer

The 3386P-1-103 10K Potentiometer is a compact, high-precision trimmer resistor designed for fine resistance adjustments in analog and digital circuits. With a resistance rating of 10K ohms, it is ideal for voltage dividers, signal tuning, and sensor calibration.

Its DIP (Dual In-line Package) format makes it easy to integrate into breadboards and PCBs, and the rotary knob adjustment allows for accurate, repeatable tuning. This component is commonly used in applications involving Arduino, embedded systems, and audio electronics.

Key Features:

• 10KΩ Resistance (Code: 103) – Widely used in voltage and signal tuning circuits

• Adjustable Rotary Design – 300° rotation for smooth and accurate resistance changes

• DIP Through-Hole Mounting – Easy integration into breadboards and PCBs

• High Compatibility – Ideal for analog/digital circuits, microcontrollers, and testing rigs

• Compact and Durable – Built for long-term use and stable performance

Technical Specifications:

• Model: 3386P-1-103

• Resistance: 10KΩ (103)

• Tolerance: ±20%

• Rotation Angle: 300° ±10°

• Type: Single-turn adjustable trimmer potentiometer

• Mounting Type: Through-hole (DIP)

• Operating Temperature: -55°C to +125°C (typical)

• Package Size: ~10mm x 10mm x 5mm

Applications:

• Voltage divider and signal tuning

• Offset adjustment in op-amps

• Sensor calibration in embedded systems

• Fine-tuning in audio and RF circuits

• Educational kits and DIY electronics projects

• Arduino, STM32, and Raspberry Pi projects
