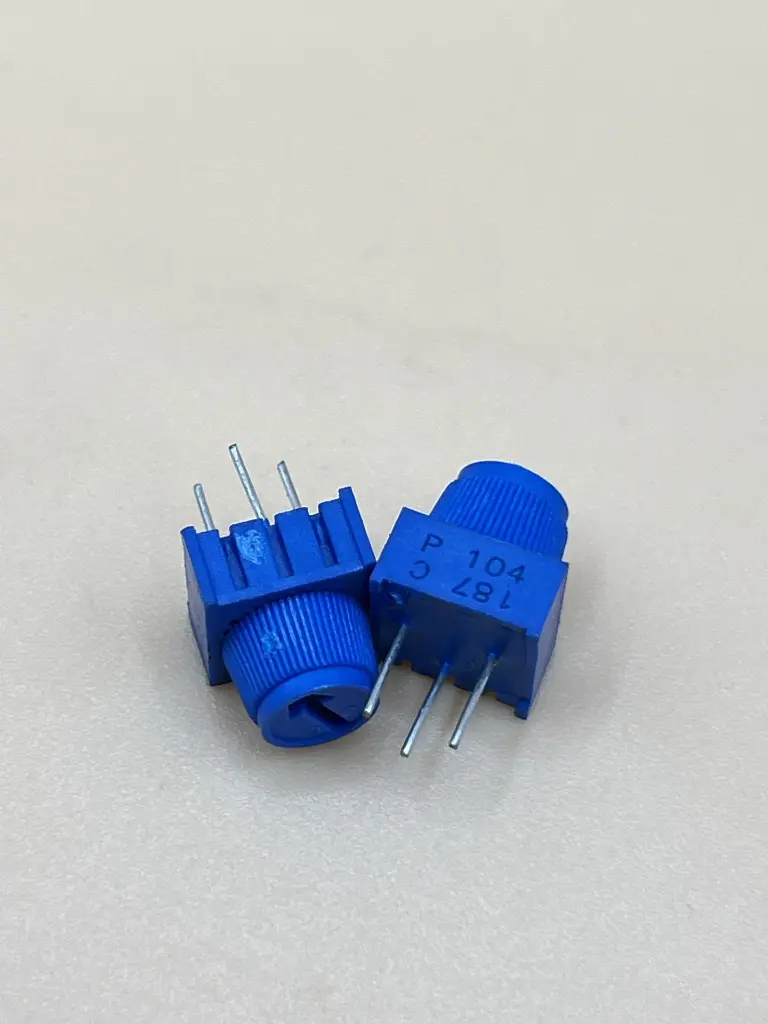

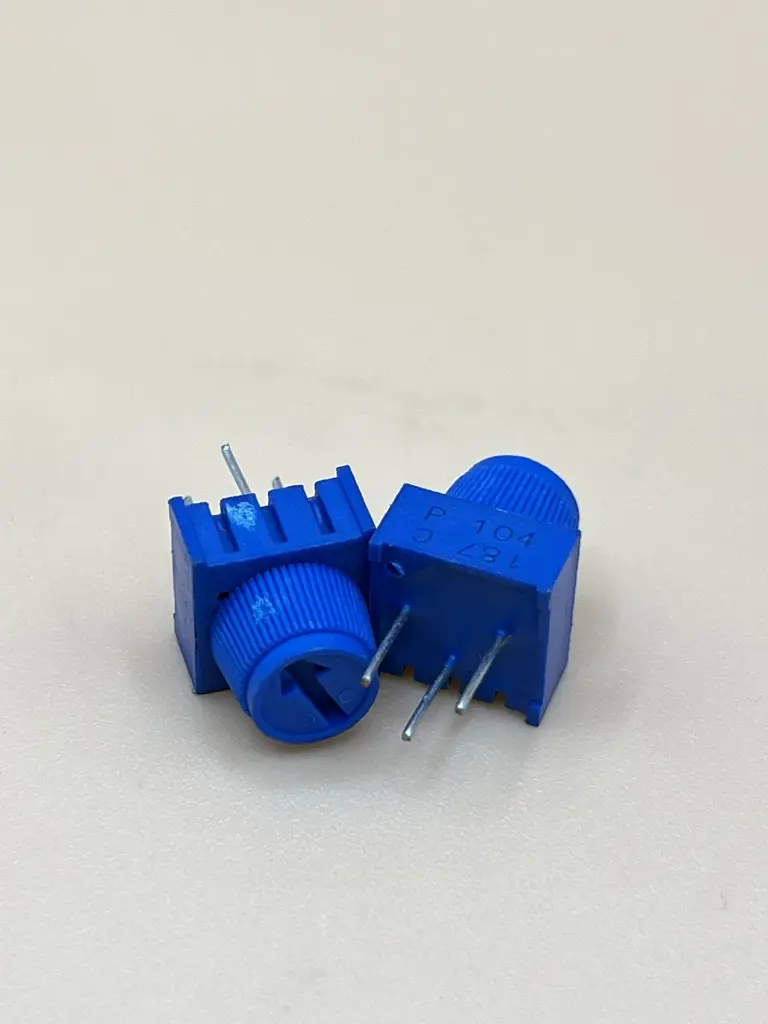

3386P-1-104 100K Potentiometer

The 3386P-1-104 100K Potentiometer is a high-quality trimmer potentiometer designed for precision resistance adjustment in a wide range of electronic applications. With a resistance of 100K ohms, it’s perfect for fine-tuning signal levels, voltage references, and sensor readings.

Built in a DIP through-hole package, this component is easy to insert into breadboards and PCBs. The adjustable rotary knob offers a 300° rotation range, enabling smooth and accurate control. Whether you're working on analog circuits, calibration tasks, or DIY electronics, this trimmer resistor ensures consistent and reliable performance.

Key Features:

• High Resistance Value – 100KΩ (Code: 104), ideal for sensitive signal and voltage control

• Smooth Adjustment – 300° rotation allows fine-tuning of resistance

• DIP Through-Hole Package – Suitable for prototyping and permanent installations

• Wide Compatibility – Works well with Arduino, op-amps, analog filters, and more

• Durable Design – Long-lasting performance with stable resistance characteristics

Technical Specifications:

• Model: 3386P-1-104

• Resistance: 100KΩ (104)

• Tolerance: ±20%

• Rotation Angle: 300° ±10°

• Mounting Type: Through-hole (DIP)

• Adjustment Type: Single-turn rotary

• Operating Temperature: -55°C to +125°C

• Body Dimensions: Approx. 10mm x 10mm x 5mm

Applications:

• Signal conditioning and filtering

• Sensor calibration

• Precision voltage dividers

• Audio tone and volume controls

• Microcontroller and embedded system tuning

• DIY electronics and robotics projects
