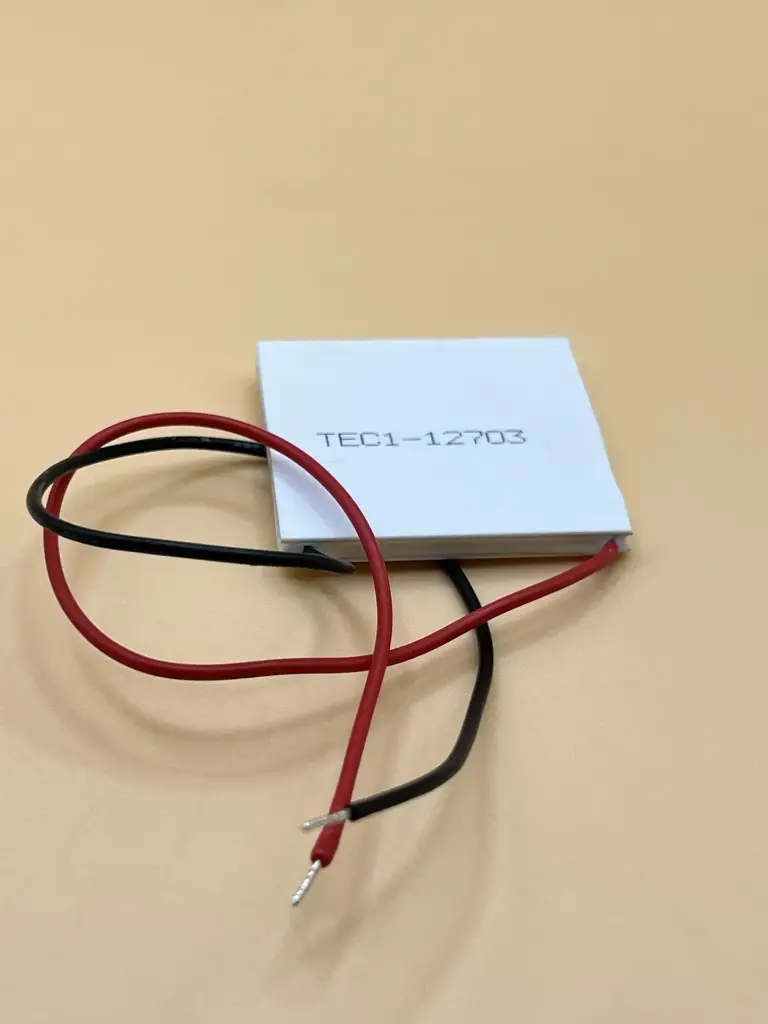

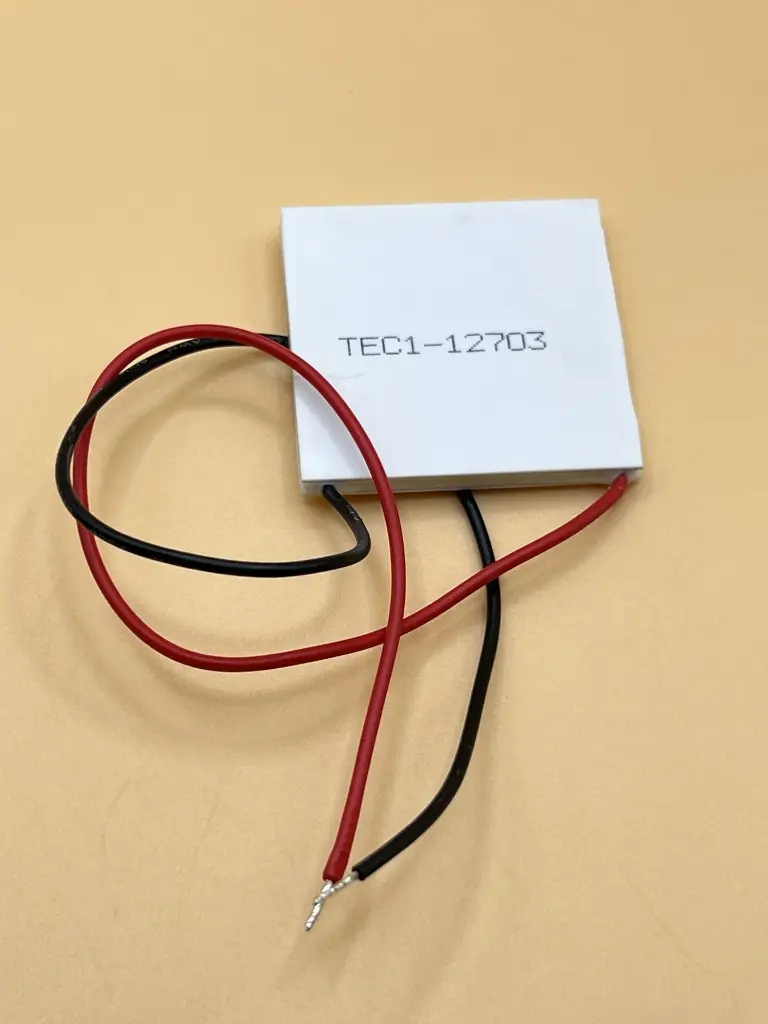

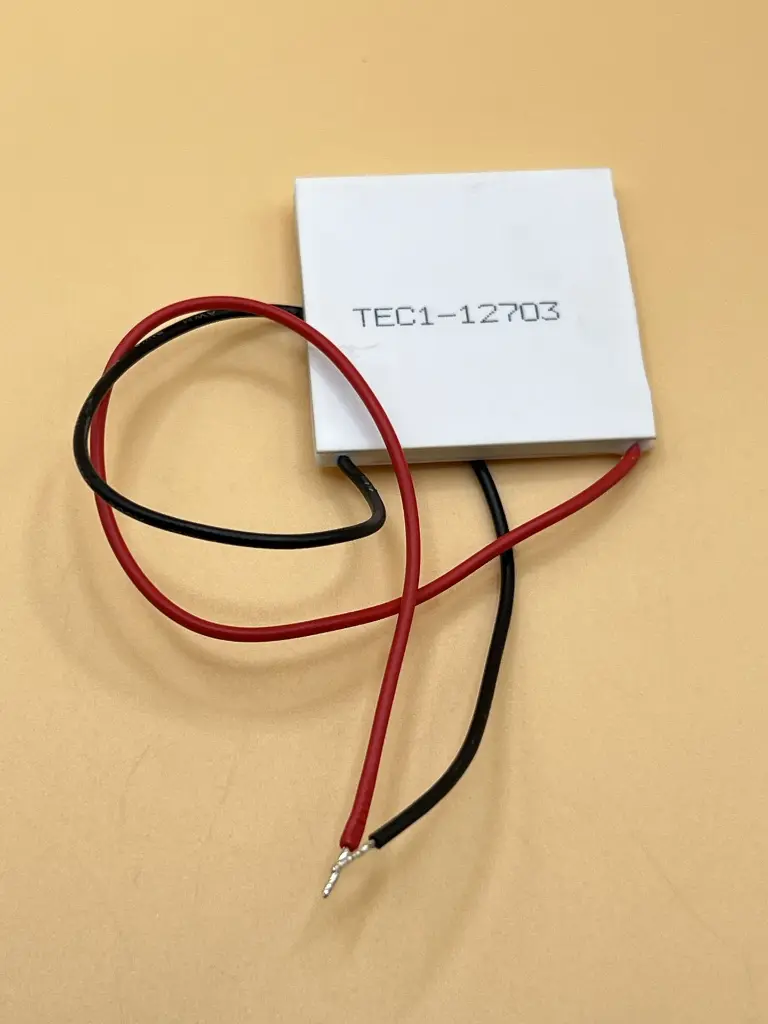

TEC1-12703
The TEC1-12703 Thermoelectric Peltier Cooler Module is a compact, high-performance device designed to move heat efficiently using solid-state technology. Powered by a 12V DC supply, this module can achieve a temperature differential (ΔTmax) of up to 60°C between its hot and cold sides, making it perfect for a wide range of cooling and heating applications.
Key Features:
-
Model: TEC1-12703
-
Rated Voltage: 12V DC
-
Max Voltage: 15.5V
-
Max Current: 3A
-
Cooling Power: Qcmax 18W
-
Resistance: 4.0Ω to 4.3Ω
-
Temperature Differential (ΔTmax): Up to 60°C (Qc=0)
-
Operating Temperature Range: -55°C to 83°C
-
Dimensions: 40mm x 40mm x 4.2mm (L×W×T)
-
Power Cord Length: 29cm
-
Compact and efficient thermoelectric cooling
Applications:
-
CPU and chipset cooling
-
Portable mini-fridge modules
-
Beverage and wine cooler projects
-
Scientific thermal experiments
-
LED and laser diode cooling
-
Climate-controlled containers or boxes
