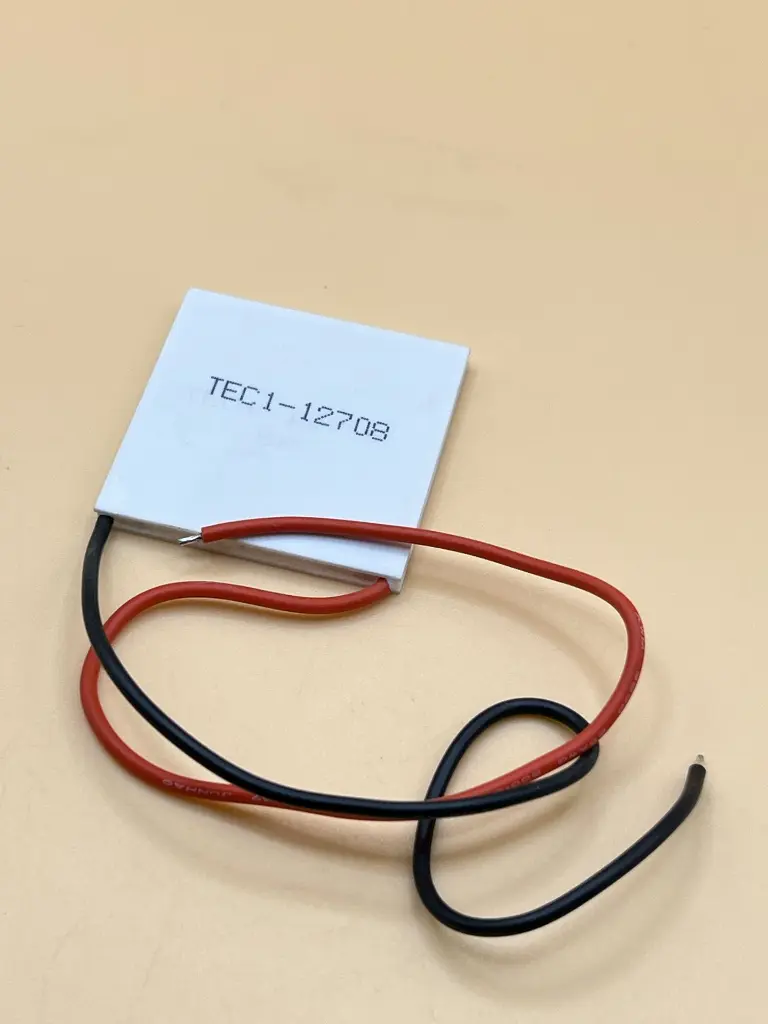

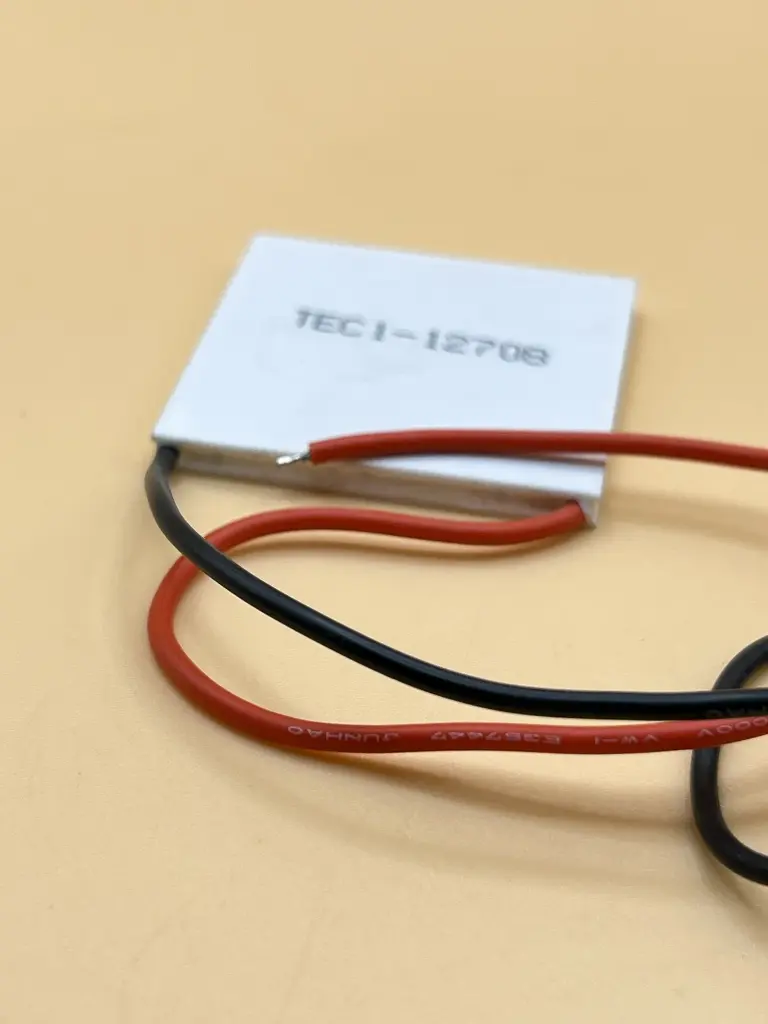

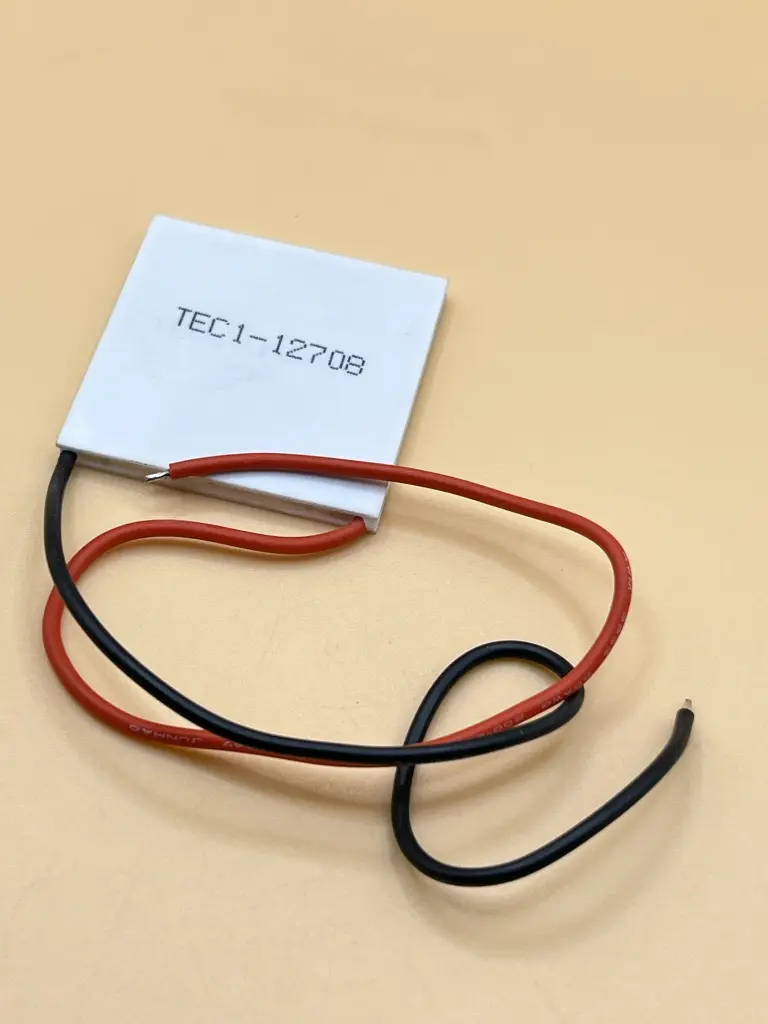

TEC1-12708
The TEC1-12708 is a powerful thermoelectric cooling module based on the Peltier effect, designed to efficiently regulate temperatures in a wide range of electronic and thermal systems. Operating at 12V with a maximum current of 8A, this module delivers up to 77W of cooling power, making it suitable for high-performance applications.
Key Features:
-
Model: TEC1-12708
-
Rated Voltage: 12V DC
-
Maximum Voltage (Umax): 15.5V
-
Maximum Current (Imax): 8A
-
Cooling Power (Qcmax): 77W
-
Resistance: 1.5 – 1.8Ω
-
Temperature Differential (ΔTmax): Up to 60°C
-
Operating Temperature Range: -55°C to +83°C
-
Power Cord Length: 29cm
-
Dimensions: 40mm x 40mm x 3.5mm (L x W x T)
-
Solid-State Operation: No moving parts, silent and vibration-free
Applications:
-
CPU and electronic component cooling
-
DIY mini-refrigerators
-
Laser diode and sensor temperature regulation
-
Small climate-controlled enclosures
-
Portable beverage coolers
-
Laboratory experiments
