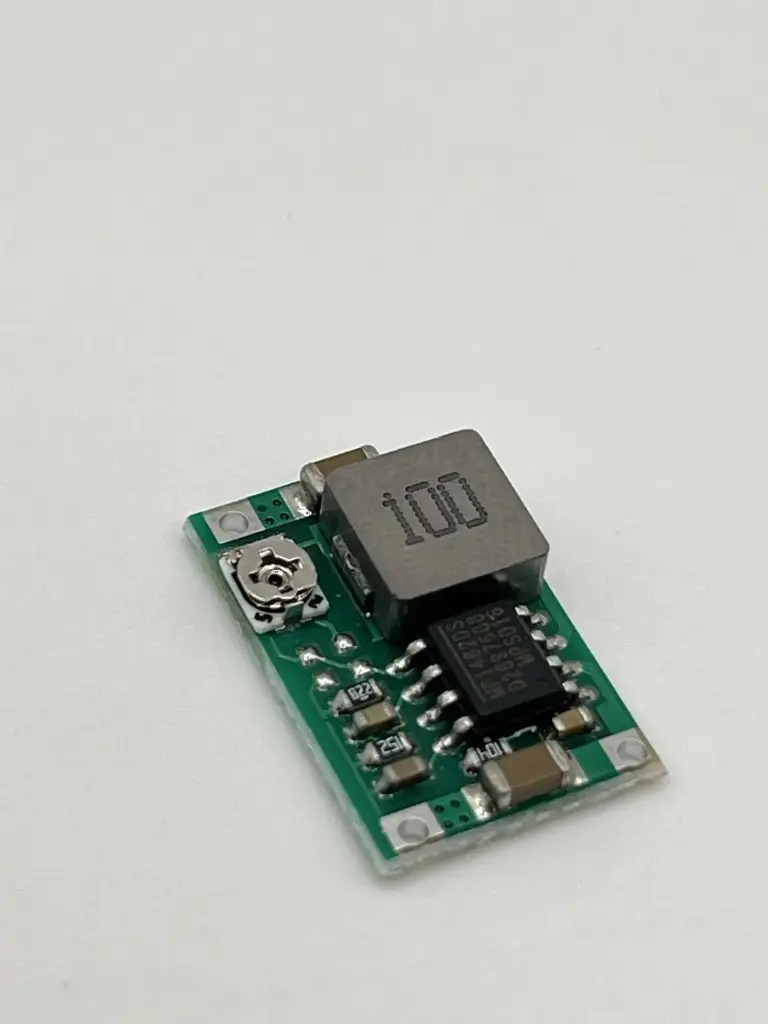

Mini360 DC-DC Buck module

Price:

GH¢ 11.00
                          ​ ​ ​ ​ ​ info@hub360.cc     059 676 4151


    2. Shop
    3. Mini360 DC-DC Buck module
    4 USB DC-DC Buck fast charge module
    4 USB DC-DC Buck fast charge module
    GH¢ 110.00
    GH¢ 110.00
    DIY STEM Conveyor belt
    DIY STEM Conveyor belt
    GH¢ 160.00
    GH¢ 160.00

    Mini360 DC-DC Buck module

    https://gh.hub360.cc/web/image/product.template/16923/image_1920?unique=9b5eb2b

    GH¢ 11.00 11.0 GHS GH¢ 11.00

    ₦ 1,200.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us

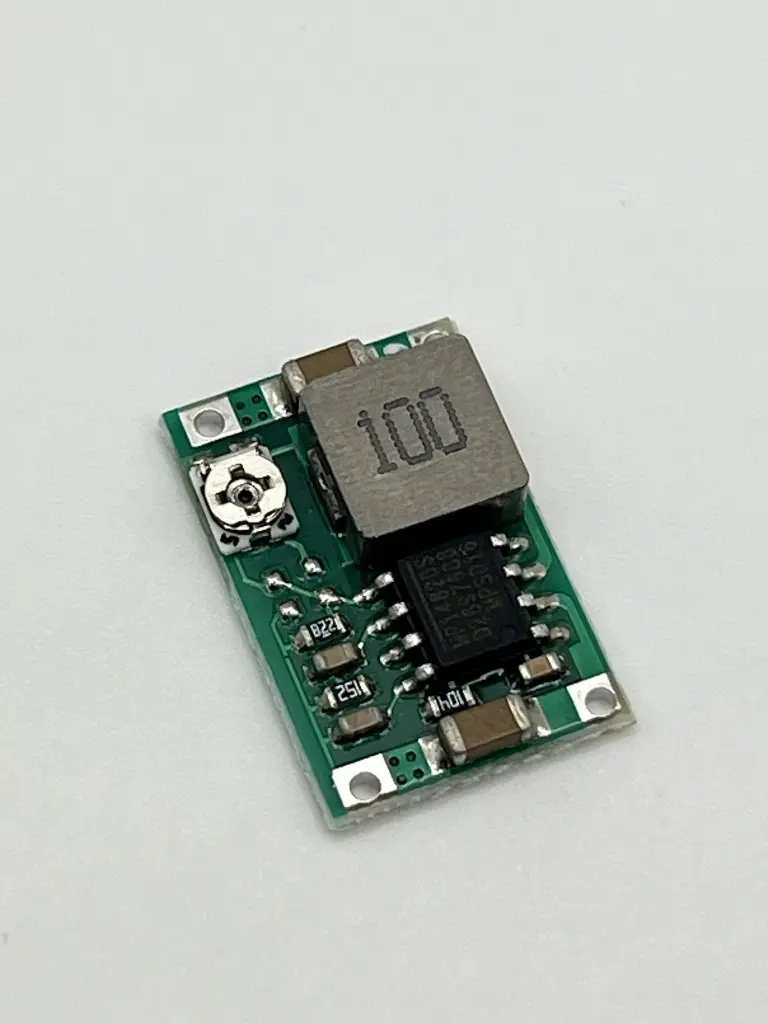

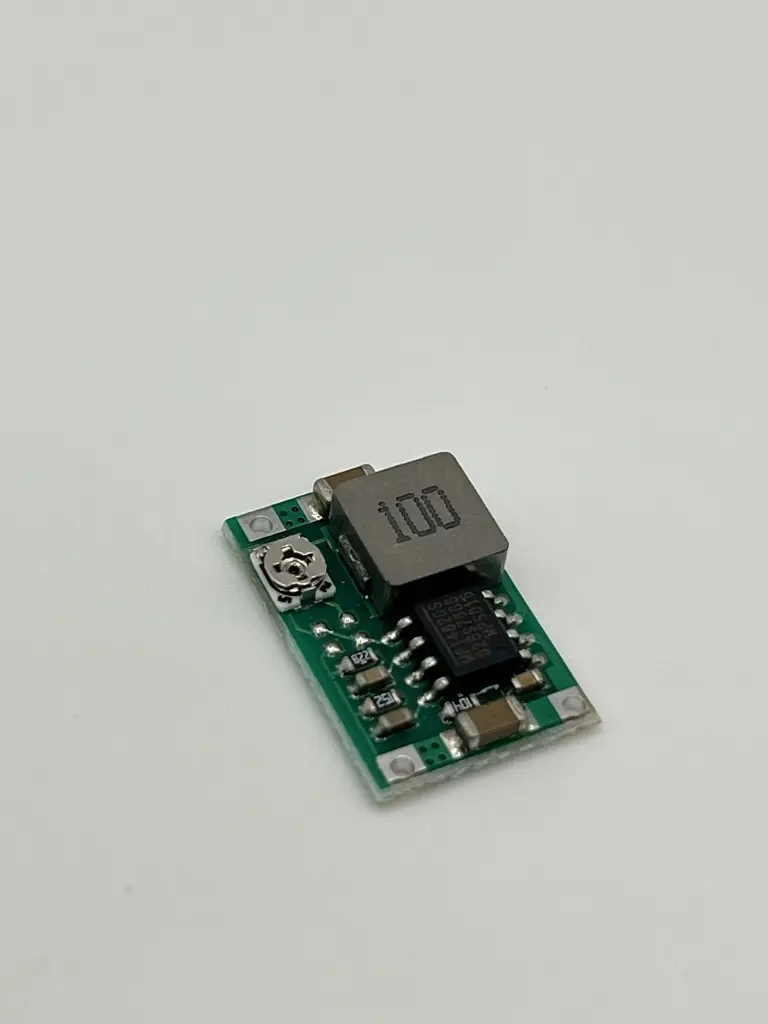

    The Mini360 DC-DC Buck Converter Module is a compact, efficient, and cost-effective step-down (buck) voltage regulator designed for use in space-constrained applications. Utilizing synchronous rectification and an integrated power inductor, this module delivers higher efficiency and lower heat generation than traditional buck converters.

    Key Features:

    • High Efficiency: Synchronous rectification minimizes heat loss

    • Adjustable Output Voltage: Fine-tune voltage via onboard trimpot

    • Built-in Protection: Thermal shutdown for enhanced safety

    • Ultra-Compact Design: Perfect for RC models, drones, and handheld devices

    • Plug-and-Play: Easily integrates into any DIY or embedded system

    Specifications:

    • Type: Non-isolated step-down (buck) converter

    • Input Voltage: 4.75V – 23V DC

    • Output Voltage: 1V – 17V DC (adjustable via onboard potentiometer)

    • Output Current: 2A max (with adequate cooling)

    • Efficiency: Up to 96%

    • Rectification: Synchronous rectification

    • Output Ripple: ~30mV (unloaded)

    • Switching Frequency: ~340kHz

    • Thermal Shutdown Protection: 160°C

    • Dimensions: ~17mm x 11mm x 3.8mm

    • Weight: ~2g

    Applications:

    • Power supply for cameras and surveillance systems

    • DIY mobile/portable power banks

    • Embedded power for car electronics and RC vehicles

    • Communication devices and Wi-Fi modules

    • Aviation models and FPV systems

    • Arduino, ESP32, and Raspberry Pi projects
