    FS300A 3/4 inch flow sensor

    https://gh.hub360.cc/web/image/product.template/16924/image_1920?unique=16238f6

    GH¢ 210.00 210.0 GHS GH¢ 210.00

    ₦ 29,000.00

    Not Available For Sale

    (GH¢ 0.00 / Units)

    This combination does not exist.

    Contact Us

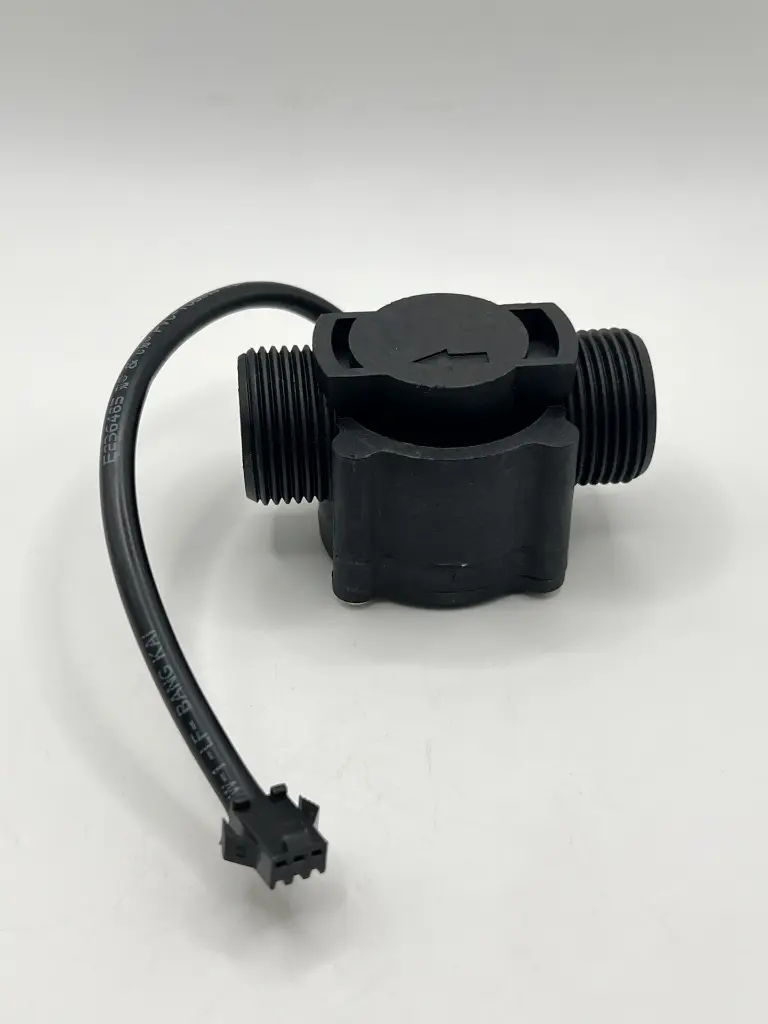

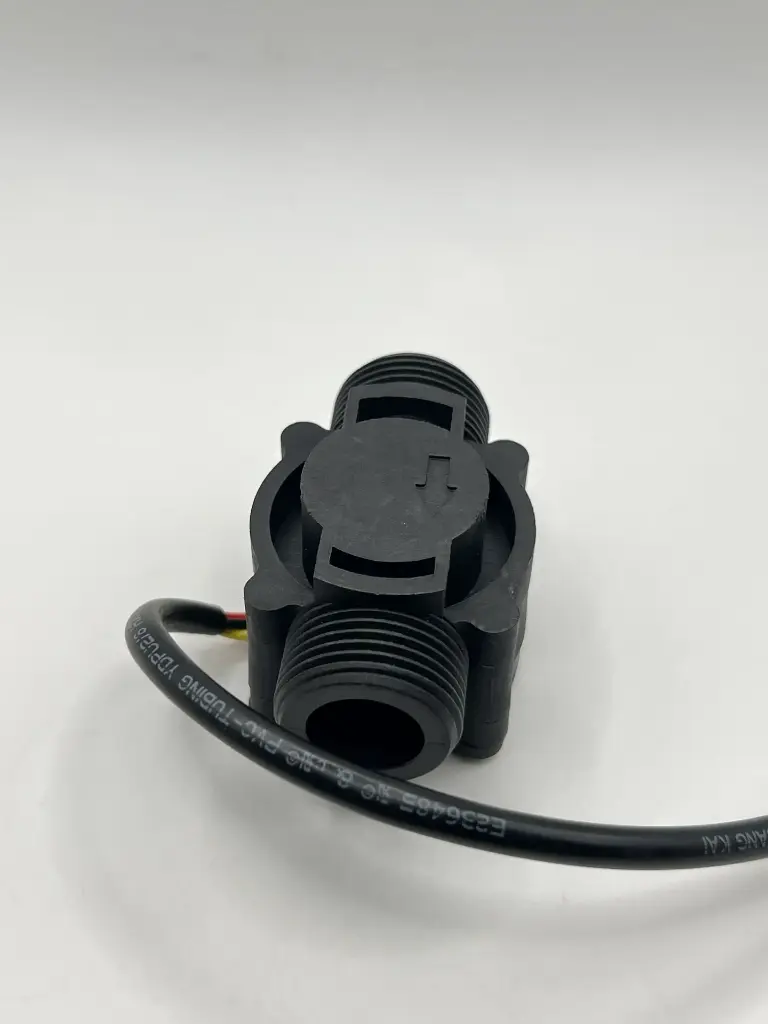

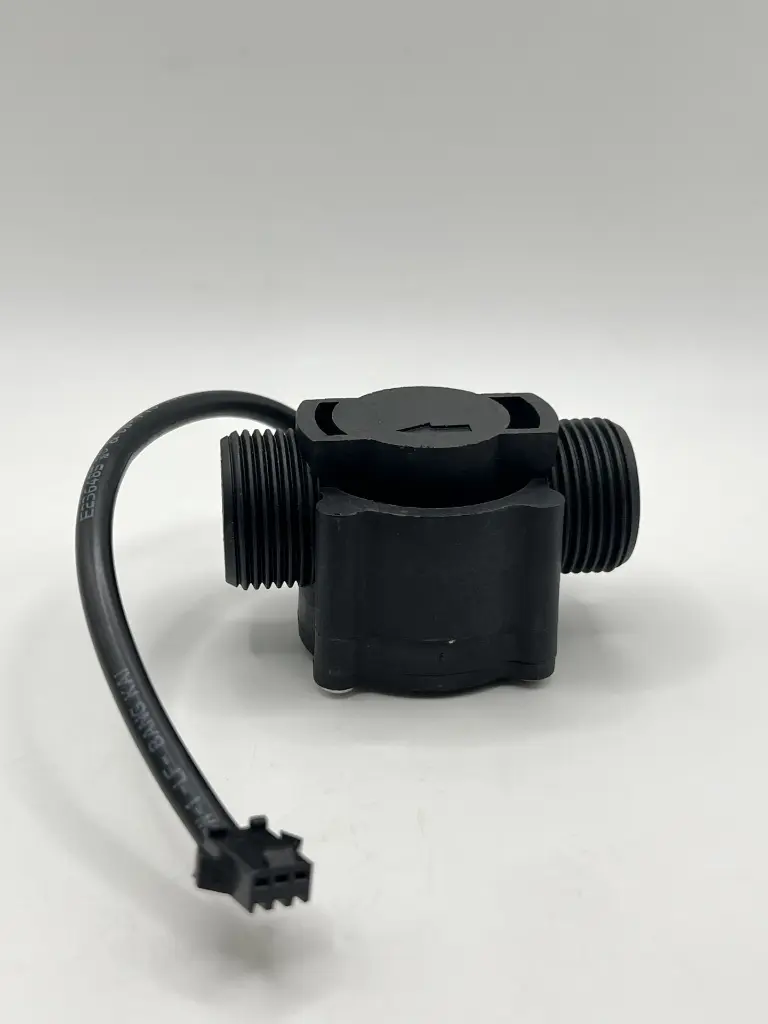

    The FS300A 3/4-inch Water Flow Sensor is a high-precision, durable device designed to measure water flow in a wide range of industrial and domestic applications. It combines a magnetic flow rotor, a Hall-effect sensor, and a robust plastic valve body to reliably detect flow rates from 1 to 60 liters per minute.

    Key Features:

    • Real-Time Flow Detection: Proportional pulse output based on flow rate

    • Easy to Integrate: Simple digital pulse output to microcontrollers (Arduino, ESP32, etc.)

    • Wide Voltage Range: Operates on 3.5V–24V for flexible compatibility

    • Rugged Build: Designed for continuous use under 1.2MPa pressure

    • Low Power Consumption: Efficient Hall sensor electronics

    Specifications:

    • Model: FS300A

    • Port Size: 3/4 inch (BSP thread)

    • Operating Voltage: 3.5V – 24V DC

    • Flow Rate Range: 1 – 60 L/min

    • Output Signal: Pulse (digital)

    • Working Pressure: <1.2 MPa

    • Sensor Type: Hall-effect

    • Material: Durable plastic body

    • Response Time: <0.5s

    • Working Temperature: 0°C – 80°C

    Applications:

    • Water heaters and boilers

    • Water dispensers and purifiers

    • Agricultural irrigation monitoring

    • Smart home water management systems

    • Industrial water usage measurement
