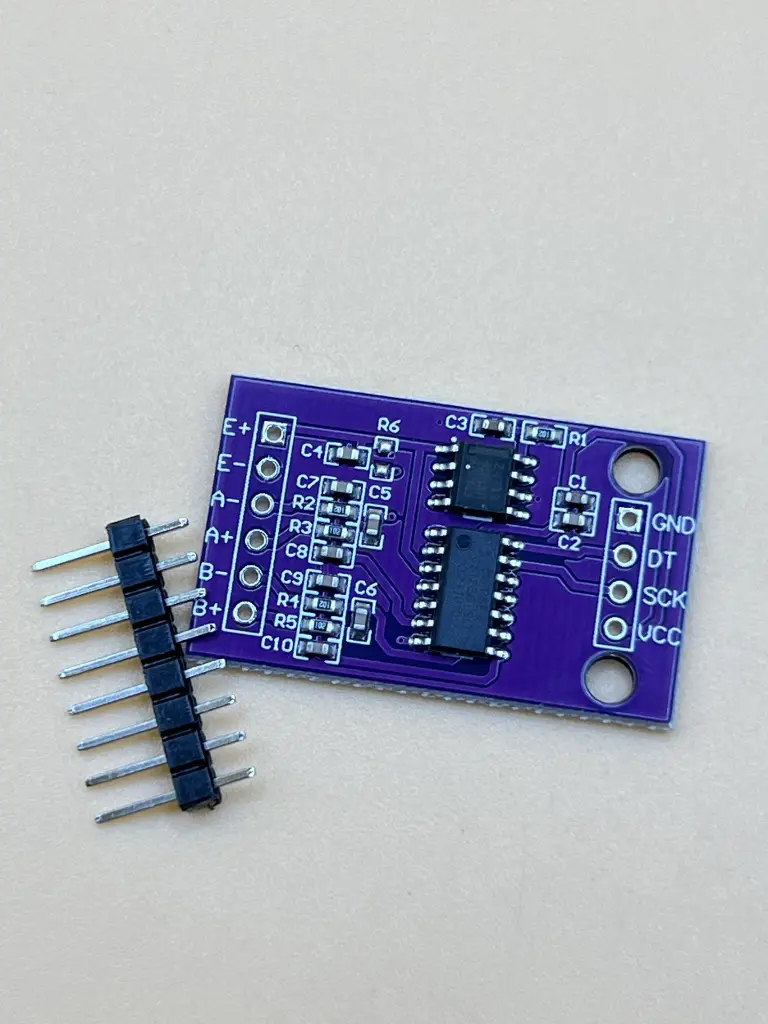

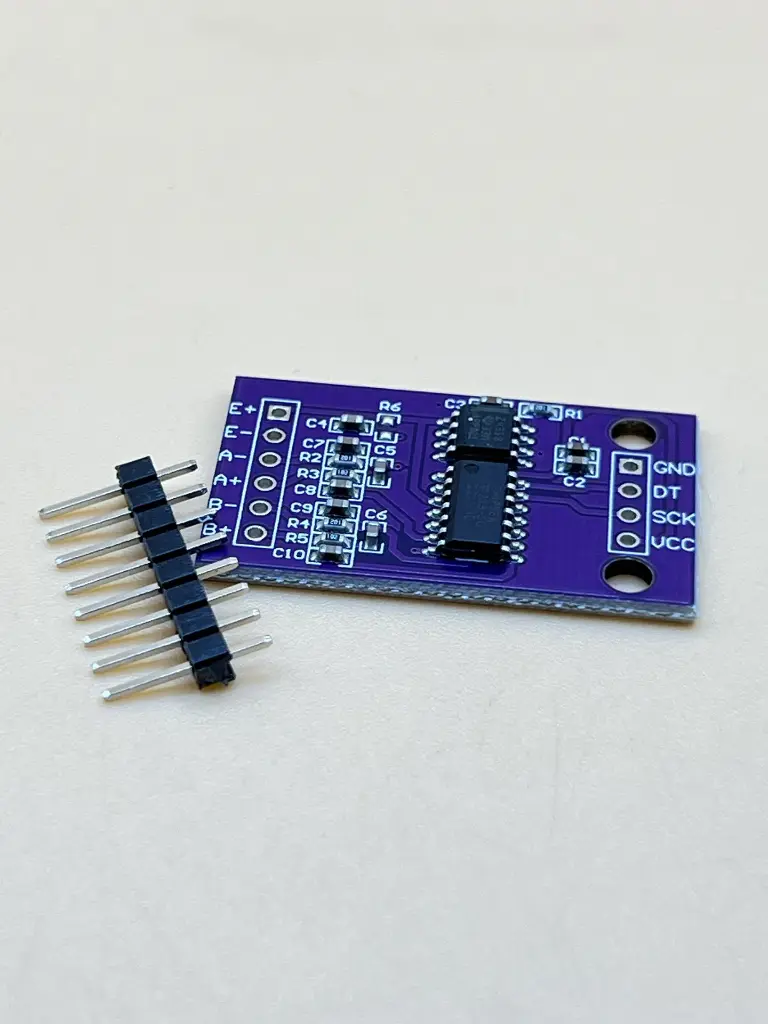

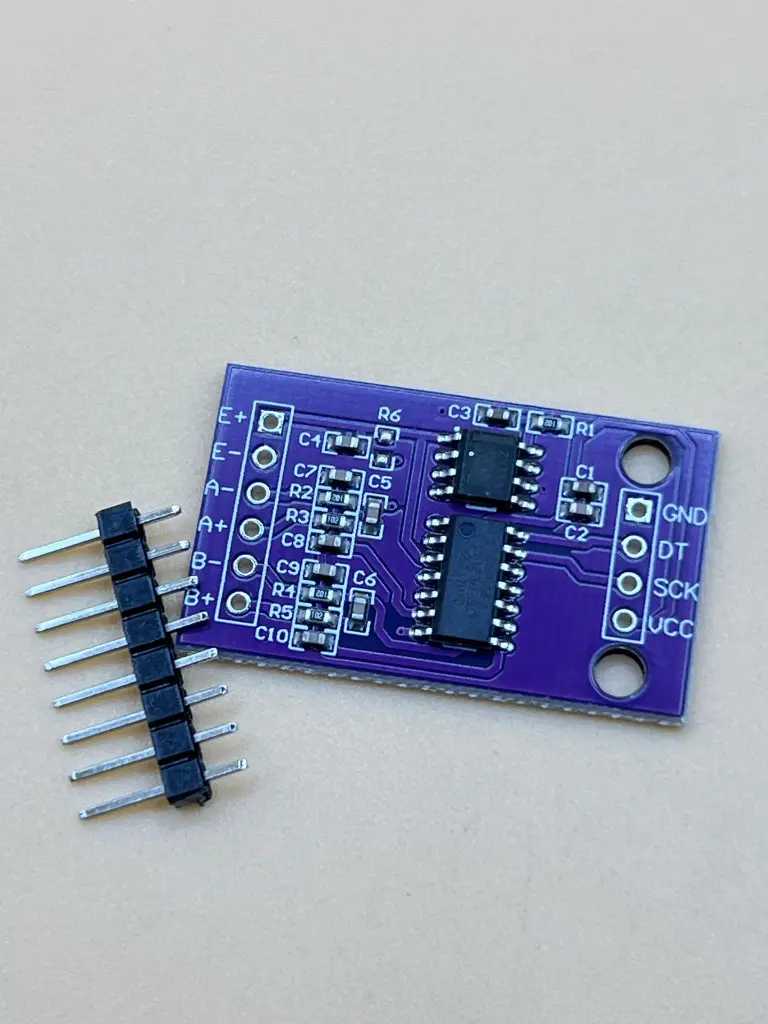

CS1238 24bit ADC
9 sold in last 24 hours
The CS1238 is a high-resolution 24-bit analog-to-digital converter (ADC) designed for precision measurement applications. Featuring low noise, differential input, and I²C communication, it is ideal for weight scales, pressure sensors, and other embedded systems requiring accurate analog signal digitization.
Key Features:
- 24-bit Resolution: Ideal for precise signal conversion
- Differential Inputs: Supports sensors like strain gauges and load cells
- I²C Interface: Simple digital communication with microcontrollers
- Low Noise Design: Ensures high measurement accuracy
- Low Power Consumption: Efficient for battery-powered devices
- Programmable Gain Amplifier: Supports multiple input ranges
- Compact PCB Form: Easy to embed in custom designs
- Model: CS1238 ADC Module
- Resolution: 24-bit
- Interface: I²C (up to 400 kHz)
- Input Type: Differential (AIN+ / AIN–)
- Gain Options: PGA selectable (1× to 128×)
- Reference Voltage: External or internal
- Operating Voltage: 2.7V – 5.5V
- Current Consumption: ~135 µA (typical)
- Digital weight scales and load cell systems
- Pressure and force measurement equipment
- Precision analog signal acquisition
- Battery-powered instrumentation
- Industrial control and automation systems
- Scientific and lab-grade measurement tools
