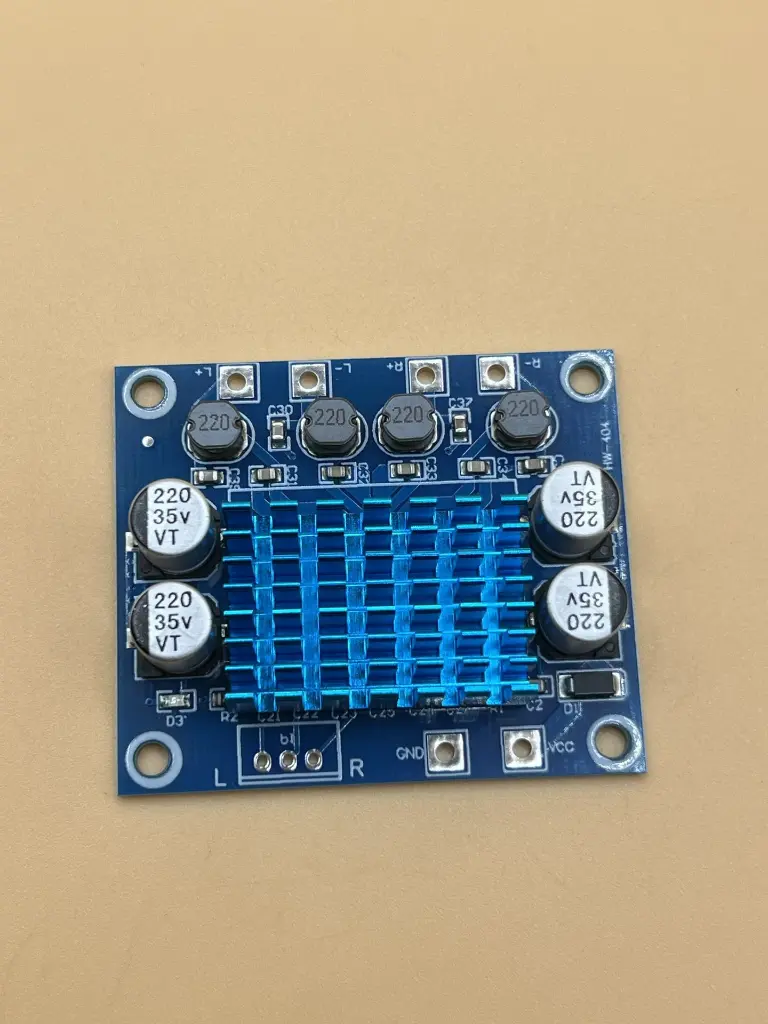

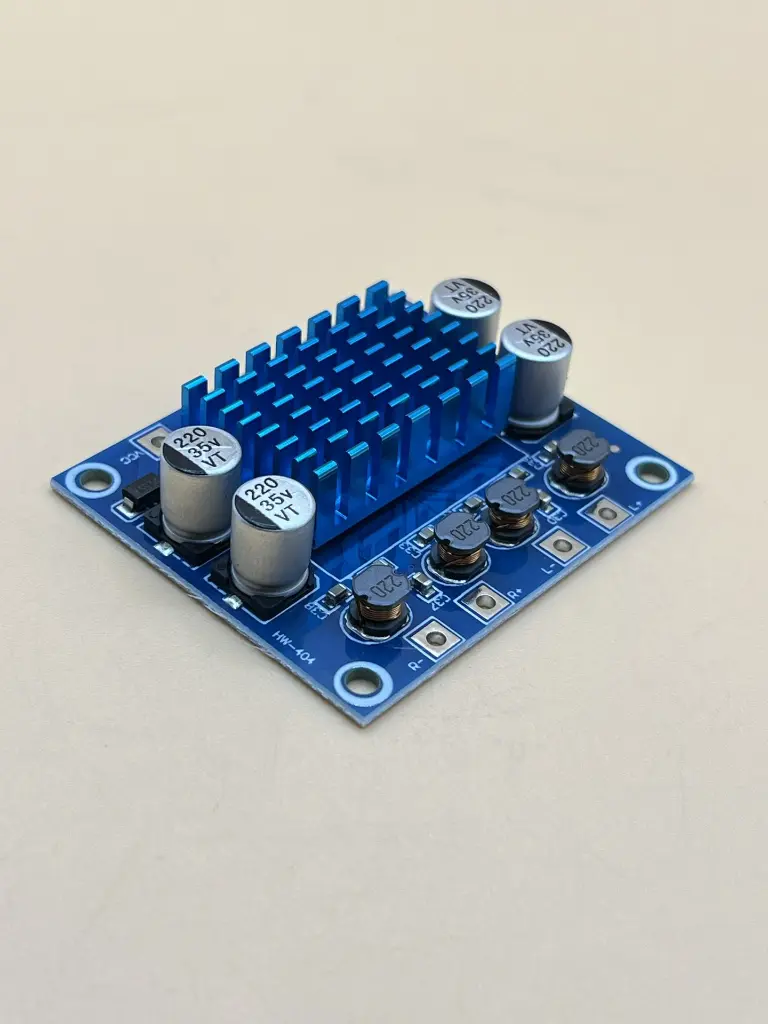

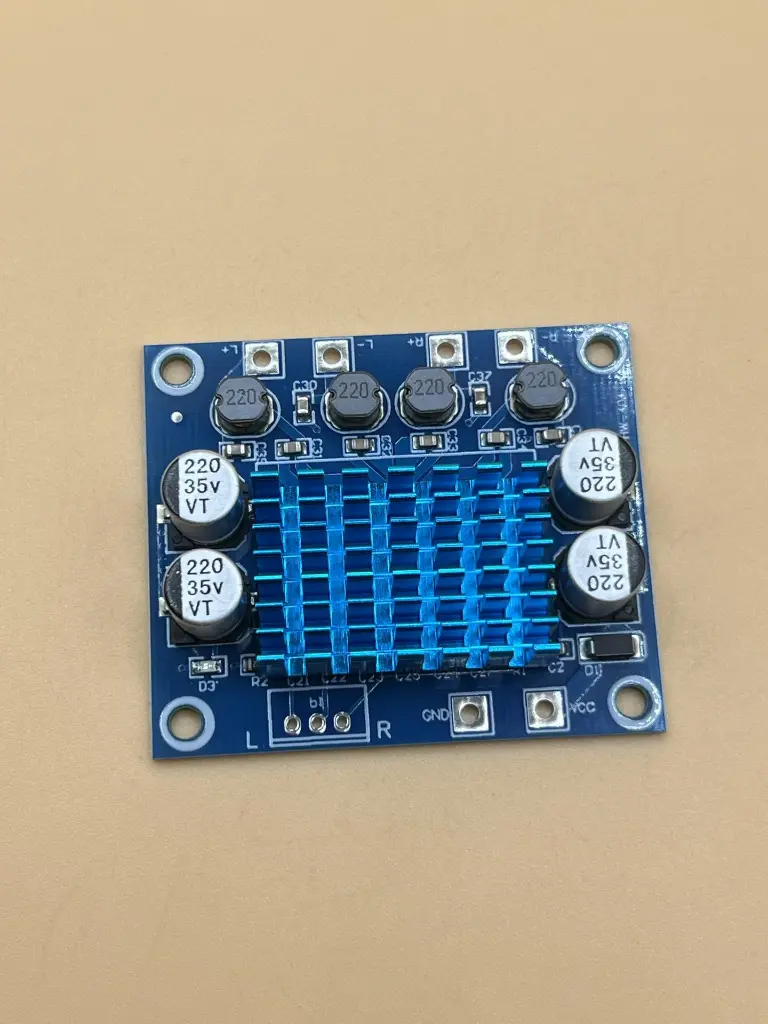

XH-A232 Class D HD Digital Audio Amplifier
3 sold in last 24 hours
The XH-A232 is a high-efficiency 2-channel Class D amplifier board built around the powerful TPA3110 chip. Delivering up to 30W + 30W stereo output, it offers excellent sound quality, low distortion, and robust protection features, making it ideal for custom audio projects, PC speakers, and portable sound systems.
Key Features:
- Class D Amplifier: High-efficiency audio output with low heat
- TPA3110 Chipset: Powerful and reliable digital amplification
- Stereo Output: Dual-channel 30W + 30W audio power
- Wide Voltage Support: Operates from 8V to 26V DC
- Built-in Protections: Overvoltage and current limit safeguards
- High SNR: 100 dB signal-to-noise ratio for clear sound
- Compact & Safe Design: No exposed solder joints, short-circuit resistant
- Model: XH-A232
- Amplifier Chip: TPA3110
- Output Power: 30W + 30W (4–8Ω load)
- Operating Voltage: 8V – 26V DC
- Recommended Current: ≥3A
- Channels: 2 (Stereo)
- Signal-to-Noise Ratio: 100 dB
- Output Impedance: 4Ω – 8Ω
- Dimensions: Varies (approx. 60 mm × 45 mm)
- Protection Features: Overvoltage, short-circuit, and current limiting
- DIY home stereo systems
- Portable speaker setups
- Car or motorcycle audio upgrades
- Multimedia PC speakers
- Audio retrofitting and hobby electronics
