TPA3110D2 2*15W Digital Power Amplifier
9 sold in last 24 hours

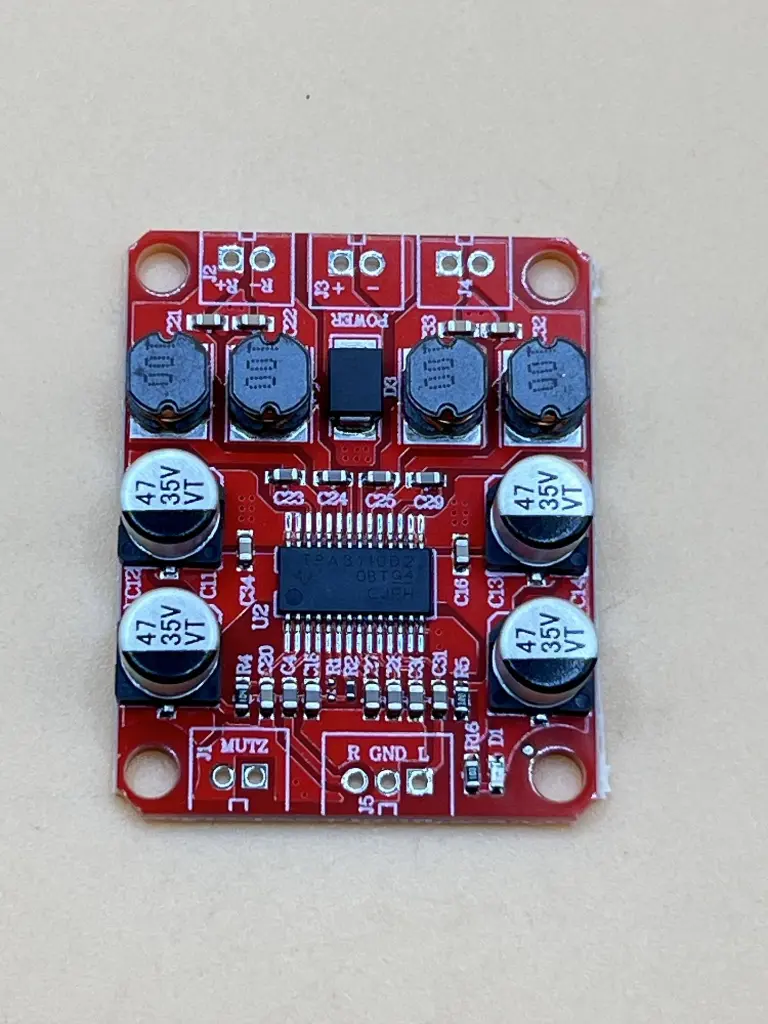

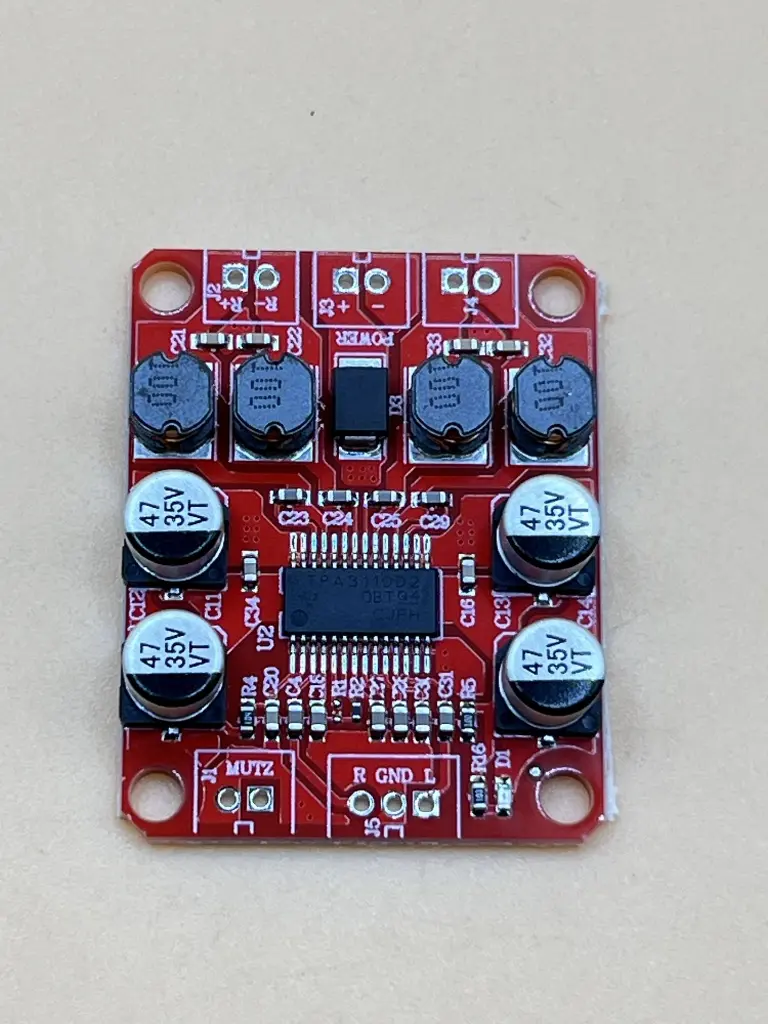

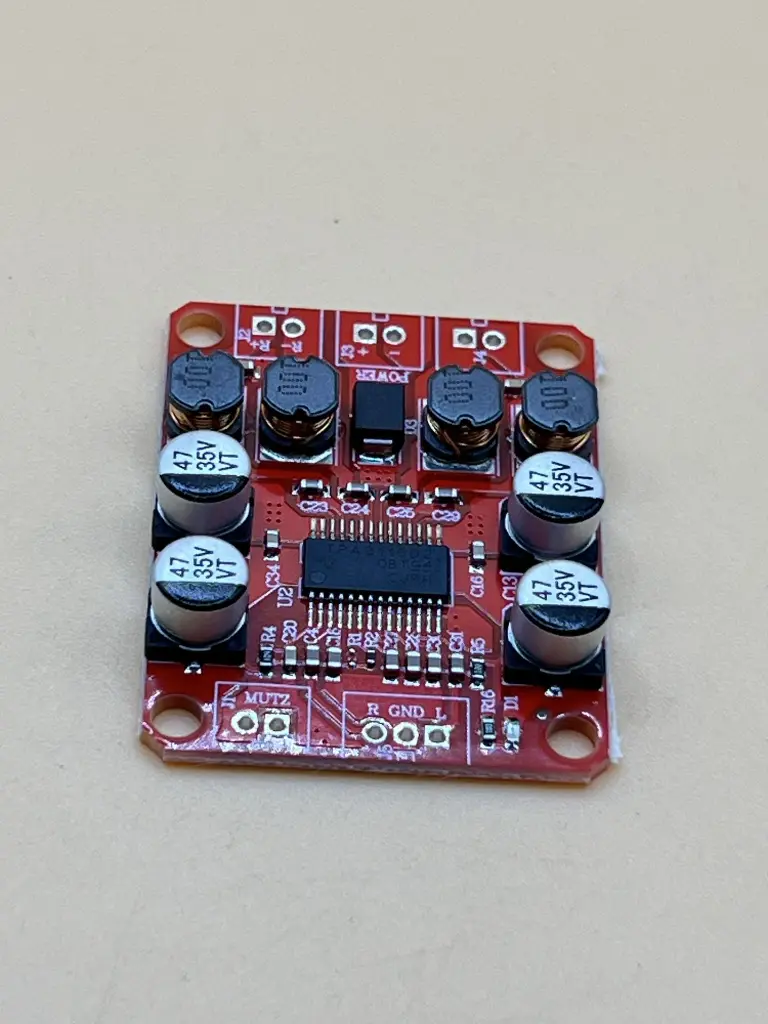

The TPA3110D2 is a compact Class D stereo amplifier board capable of delivering 15W per channel. Built around the efficient TPA3110D2 chipset, it provides high-quality, low-distortion audio performance with built-in protection features. Ideal for DIY audio, portable speaker systems, and multimedia setups.
Key Features:
- Class D Efficiency: High output with low power loss
- Dual Channel Output: Delivers 15W + 15W stereo audio
- Wide Voltage Range: Operates from 8V to 26V DC
- Built-in Protections: Overvoltage, thermal, and short-circuit protection
- Clear Sound Quality: Low THD and high signal-to-noise ratio
- Compact Design: Easily fits into DIY and embedded projects
- Solder-Free Terminals: Screw or pin headers for easy wiring
- Model: TPA3110D2
- Chipset: TPA3110D2 Class D amplifier
- Output Power: 15W + 15W @ 8Ω
- Operating Voltage: 8V – 26V DC
- Recommended Load: 4Ω – 8Ω speakers
- Signal-to-Noise Ratio: ≥100 dB
- Efficiency: Up to 90%
- Channels: 2 (stereo)
- Protection Features: Overheat, short circuit, overvoltage
- Dimensions: Approx. 52 mm × 45 mm
- Portable Bluetooth speakers (with external receiver)
- Home stereo or desktop audio systems
- DIY amplifier projects
- Multimedia PC audio output
- Small-scale public announcement systems
No Specifications
