Description

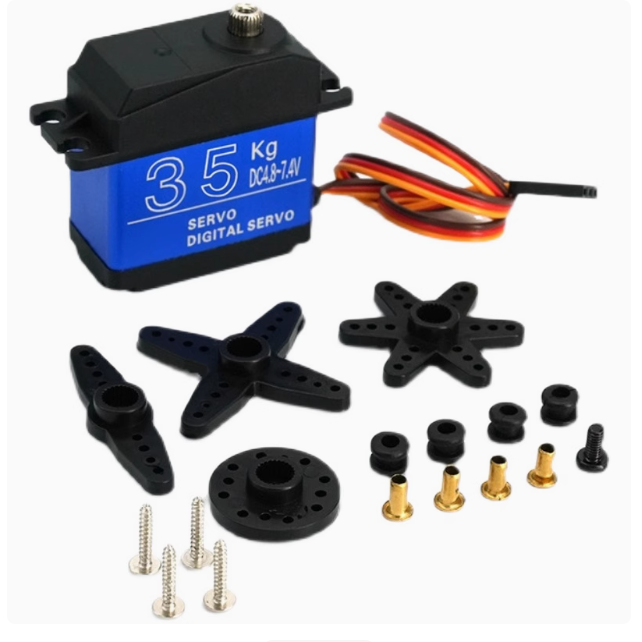

The 35KG 180° Metal Gear Digital Servo is a heavy-duty, high-torque servo ideal for large-scale robotics, RC models, and motion control systems. Featuring a powerful motor, full metal gear construction, and precise digital control, it delivers stable performance even under extreme mechanical loads.
Key Features
- · Ultra-High Torque: Delivers up to 35 kg·cm at 7.4V
- · 180° Range: Supports wide-angle movement via PWM
- · Full Metal Gears: Ensures durability and long service life
- · Dual Ball Bearings: Smooth and stable shaft rotation
- · Heat-Resistant Aluminum Case: Enhances cooling and strength
- · Digital Circuitry: Fast and accurate response
- · Standard Servo Interface: Compatible with most servo controllers
Specification
- · Model: 35KG Digital Servo
- · Torque: Up to 35 kg·cm @ 7.4V
- · Rotation Range: 0° to 180°
- · Operating Voltage: 4.8V – 7.4V
- · Speed: ~0.09 – 0.14 sec/60° (varies with voltage)
- · Motor Type: High-efficiency DC motor
- · Gear Type: Full metal geartrain
- · Bearing System: Dual ball bearings
- · Signal Type: PWM (50 Hz standard)
- · Connector: 3-pin (Signal, VCC, GND)
- · Dimensions: ~40.5 mm × 20 mm × 40.5 mm
- Weight: ~70 g
Application
- · High-load robotic arms and grippers
- · Large-scale RC cars, planes, or boats
- · Heavy-duty pan/tilt mechanisms
- · Motion platforms and lifting systems
- · Industrial-grade servo-driven actuators
