9mm laser head line
7 sold in last 24 hours

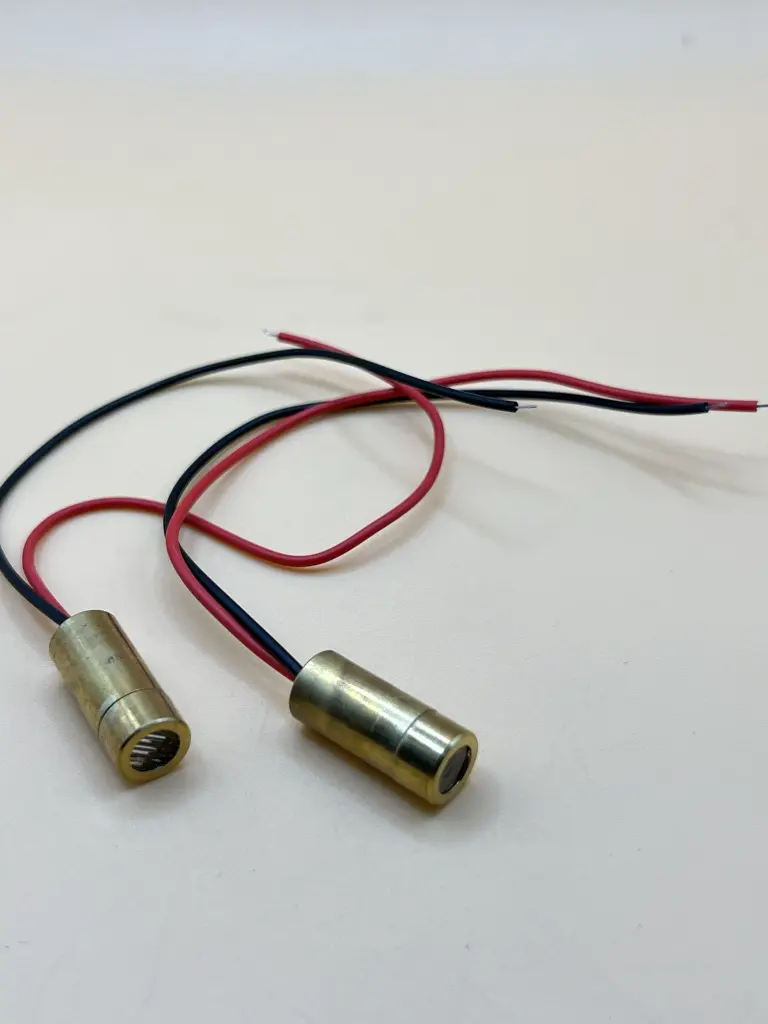

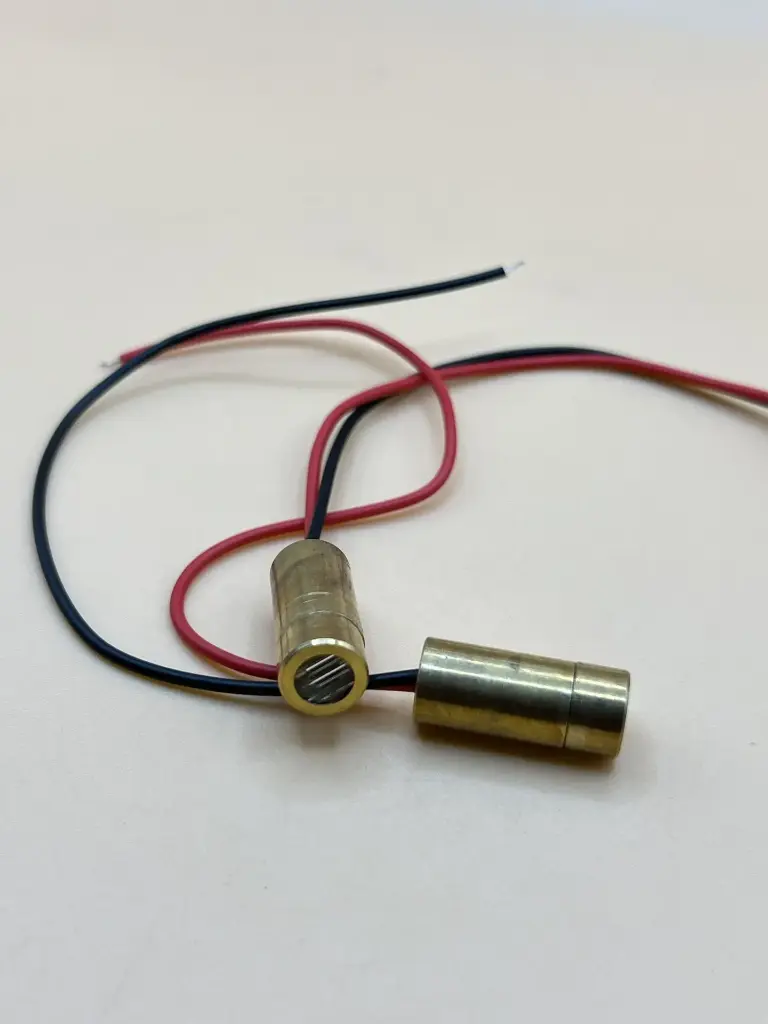

The 9mm Laser Line Module emits a focused red laser beam in a straight line, designed for precise visual alignment. Compact and easy to integrate, it is suitable for leveling, positioning, machine vision, and DIY optical guidance systems.
Key Features:
Key Features:
- Line Projection: Emits a clear red laser line
- Compact Form: 9mm diameter housing for tight spaces
- Constant Output: Stable brightness and shape
- Low Power Use: Operates efficiently at low voltage
- Easy Integration: Simple 2-wire connection
- Focused Alignment: Ideal for visual positioning tasks
- Durable Build: Metal casing with good heat dissipation
- · Model: 9mm Laser Line Head
- · Laser Type: Red laser (Class IIIa)
- · Wavelength: 650 nm (typical)
- · Projection: Straight laser line
- · Operating Voltage: 3V – 5V DC
- · Output Power: ≤5 mW
- · Lens Type: Line-generating lens
- · Current Consumption: ≤30 mA
- · Housing Diameter: 9 mm
- · Connection: 2-pin (VCC, GND)
- · Material: Metal casing
- Laser alignment and leveling tools
- CNC or cutting machine guides
- Visual reference lines in robotics
- Optical positioning in assembly systems
- DIY laser measurement or light projection systems
