Description

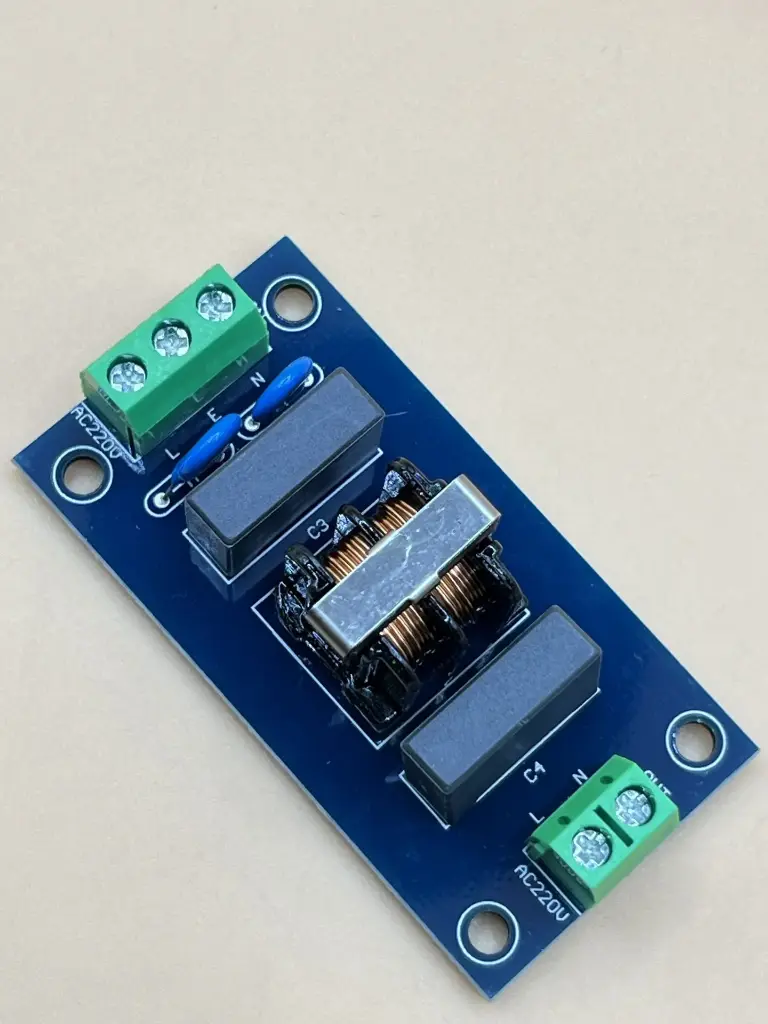

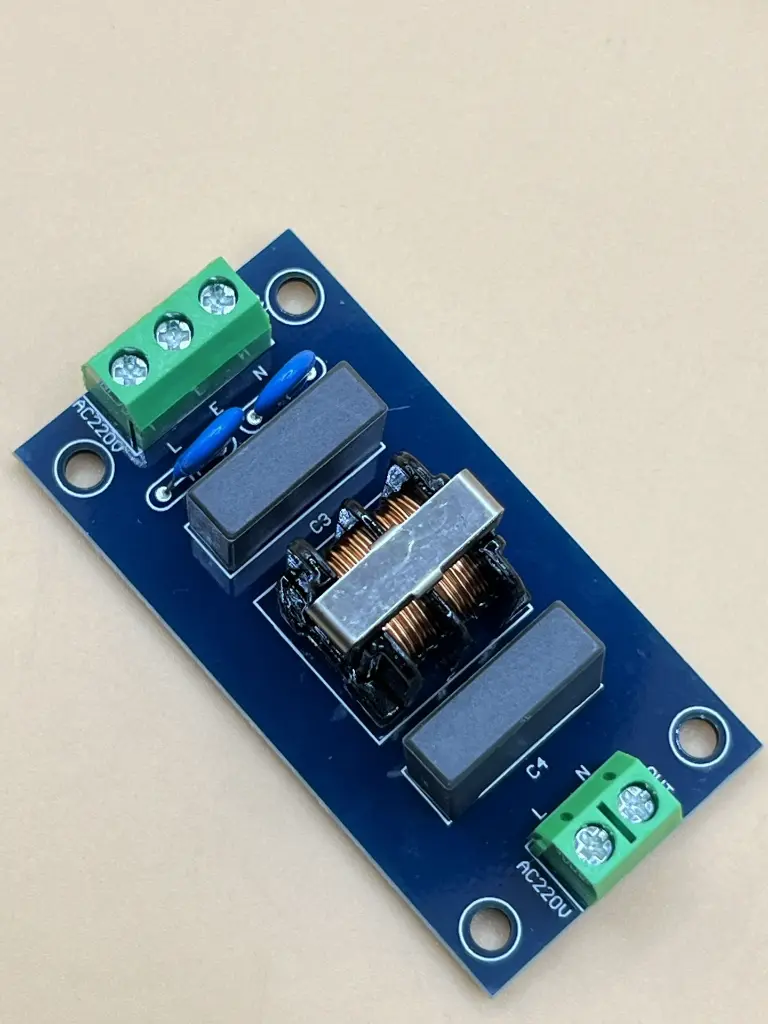

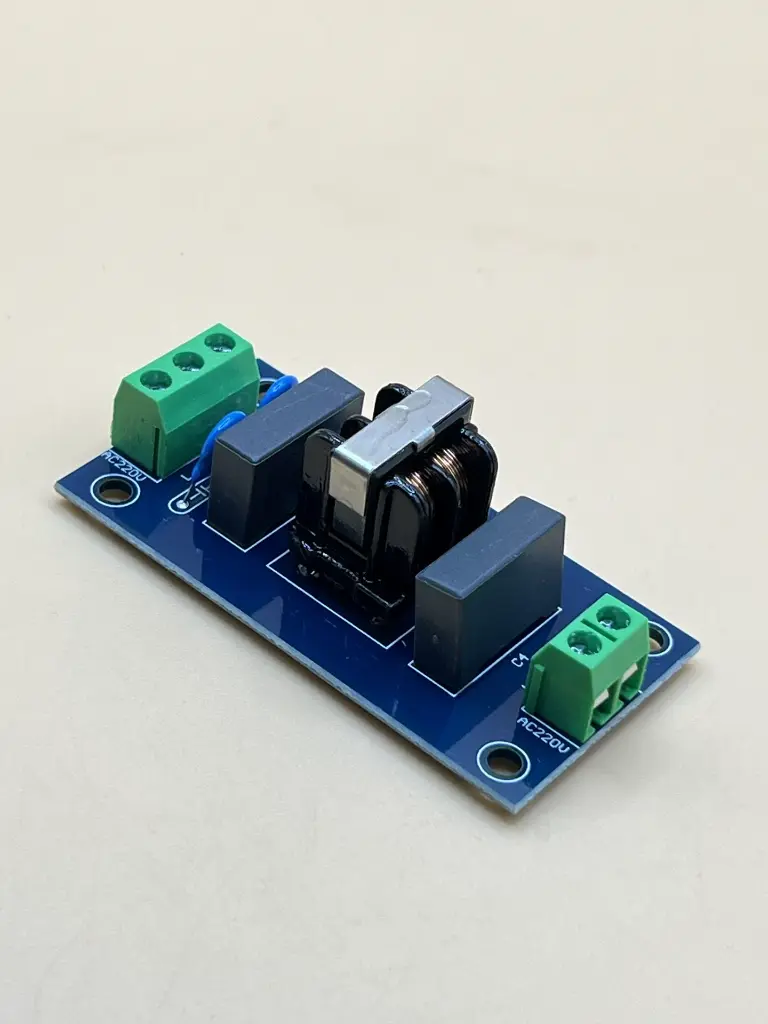

The EMI Power Filter Module is designed to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) in power lines. By filtering out high-frequency noise, it helps ensure stable and clean power delivery to sensitive electronic devices. It is ideal for DIY electronics, power supplies, audio systems, and industrial control equipment.
Key Features
- EMI Suppression: Reduces electromagnetic and RF noise
- Clean Power Output: Improves stability of connected devices
- Wide Compatibility: Works with AC or DC circuits
- Plug-and-Play: Easy integration into power lines
- Durable Design: High-quality passive components
- Compact Module: Fits into power supplies and enclosures
Specification
- Model: EMI Filter Module
- Operating Voltage: 100V – 250V AC or DC (depending on type)
- Rated Current: Typically up to 3A – 10A (varies by version)
- Filtering Type: Common-mode and differential-mode noise suppression
- Frequency Range: 150 kHz – 30 MHz (attenuation range)
- Connectors: Terminal blocks or solder pads (varies)
- Board Size: ~50 mm × 20 mm (typical)
- Weight: ~10 – 30 g (depending on current rating)
Application
- Power supplies and adapters
- Audio amplifier noise suppression
- Industrial control equipment
- 3D printers and CNC machines
- Embedded and IoT systems
