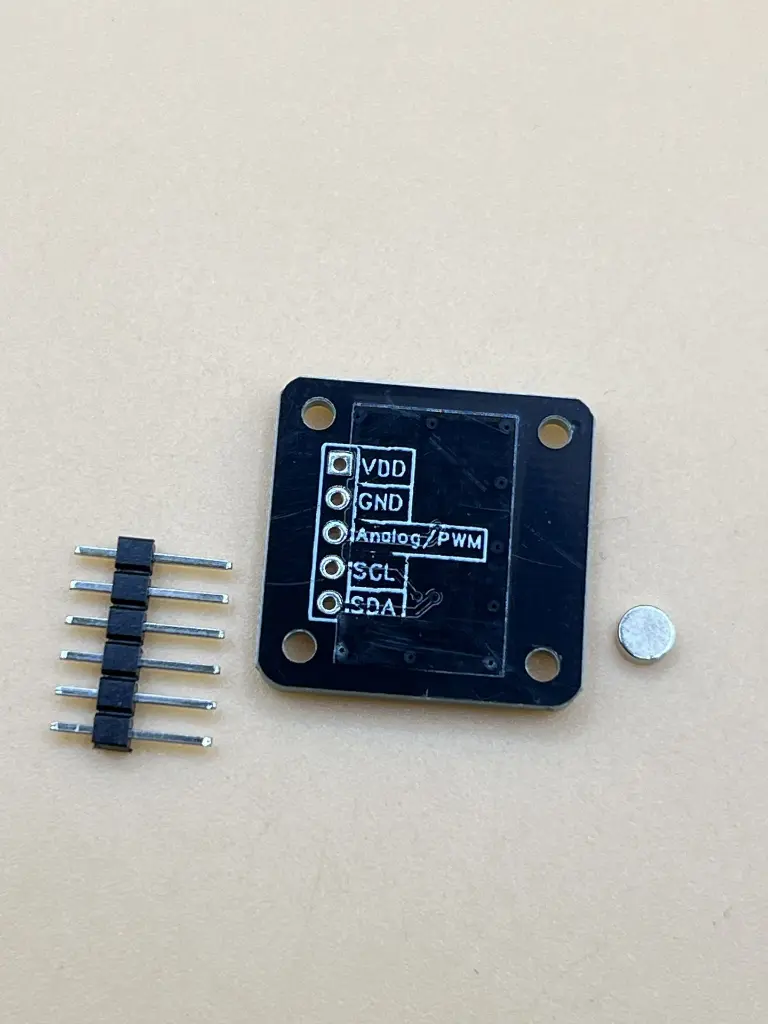

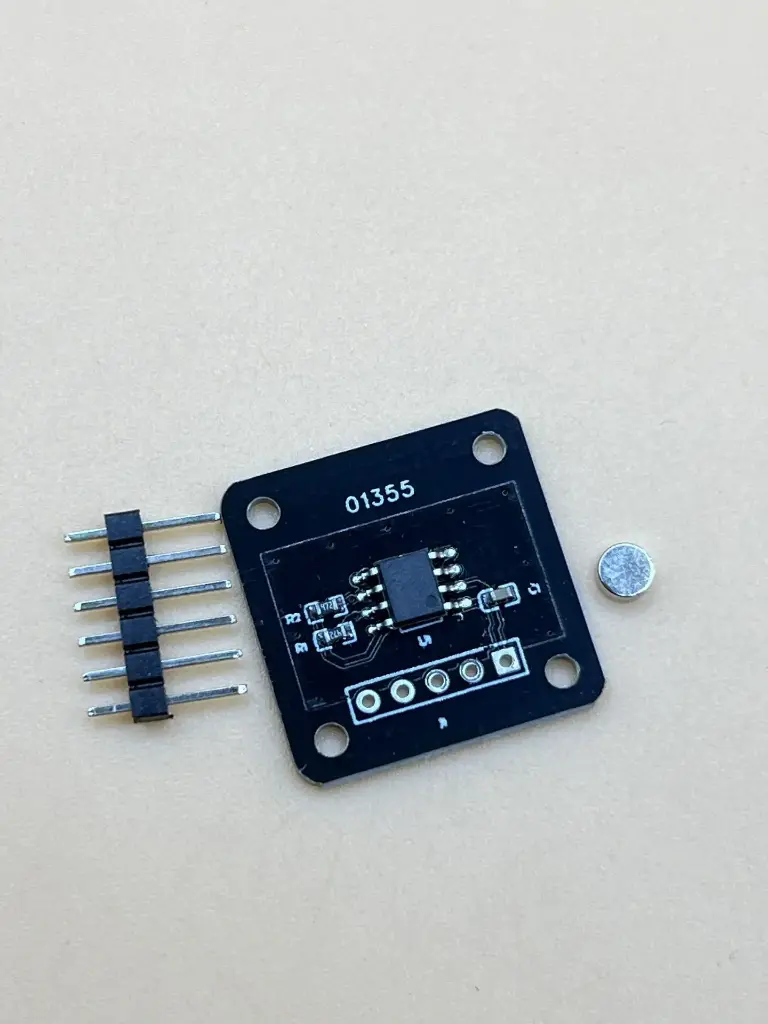

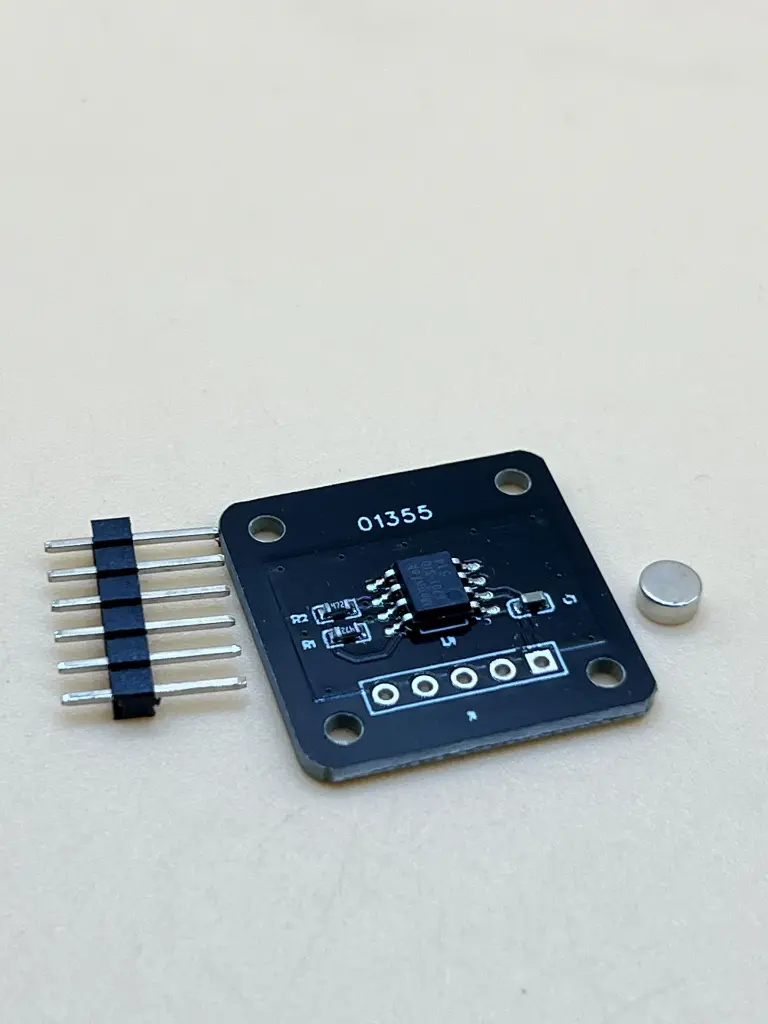

MT6701 Magnetic Encoder

Product Features

• Differential Hall-based absolute angle sensing from 0° to 360°

• Operating voltage: 3.3 V – 5.0 V

• Operating temperature: –40 °C to +125 °C

• Linearity deviation: <1°, typically <1.5° across temperature range

• High-speed support: System delay as low as 5 μs; supports speeds up to 55,000 RPM

• Interfaces: I²C/SSI for 14-bit digital angle data

• ABZ Incremental output: Supports 1 to 1024 resolution lines

• UVW Incremental output: Supports polarity configurations from 1 to 16

• Analog/PWM output: 12-bit PWM or analog via 12-bit DAC

• Button detection output: Detects press action via magnetic spacing change

• Built-in EEPROM: >1000 programming cycles supported

Applications

• Precision rotary encoders

• Motor position feedback (BLDC, stepper)

• Robotics and automation systems

• User input knobs (rotation + push)

• Industrial control and sensing
