Description

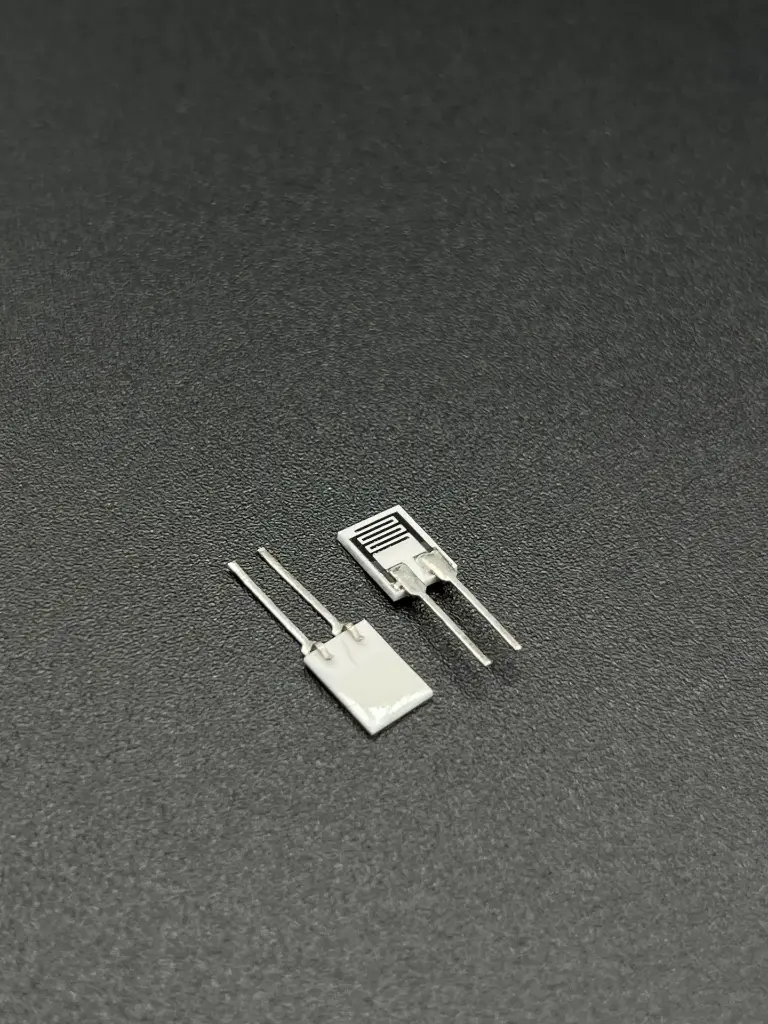

The HR202L is a moisture-sensitive resistor designed using organic polymer materials that respond reliably to varying humidity levels. It offers a wide sensing range, fast response times, and excellent long-term stability, making it suitable for both indoor and outdoor applications. Its compact design allows easy integration into weather monitoring systems, HVAC, and smart home devices. The HR202L does not require heating for self-cleaning, and its anti-pollution capability enhances performance in harsh environments.
Key Features
- Wide Detection Range: Senses humidity across a broad spectrum
- Fast Response: Reacts within seconds to moisture level changes
- Long-Term Stability: 1% RH/year drift ensures reliable operation
- Compact Design: Suitable for space-constrained devices
- Energy Efficient: Operates with minimal power consumption
Specification
- Model: HR202L
- Rated Voltage: 1.5V AC (max, sine wave)
- Rated Power: 0.2 mW (max)
- Operating Frequency: 500 Hz – 2 kHz
- Temperature Range: 0°C to 60°C
- Humidity Range: < 95% RH (non-condensing)
- Response Time: 20s (absorption), ≤40s (release)
- Accuracy: ±5% RH
- Hysteresis: ~2% RH
- Stability: ~1% RH/year
Application
- Weather monitoring and environmental sensing
- HVAC and air quality regulation systems
- Agricultural and greenhouse humidity control
- Smart home appliances (humidifiers, purifiers)
- Industrial storage and manufacturing environments
