3A 9V 18650 UPS module type C
8 sold in last 24 hours

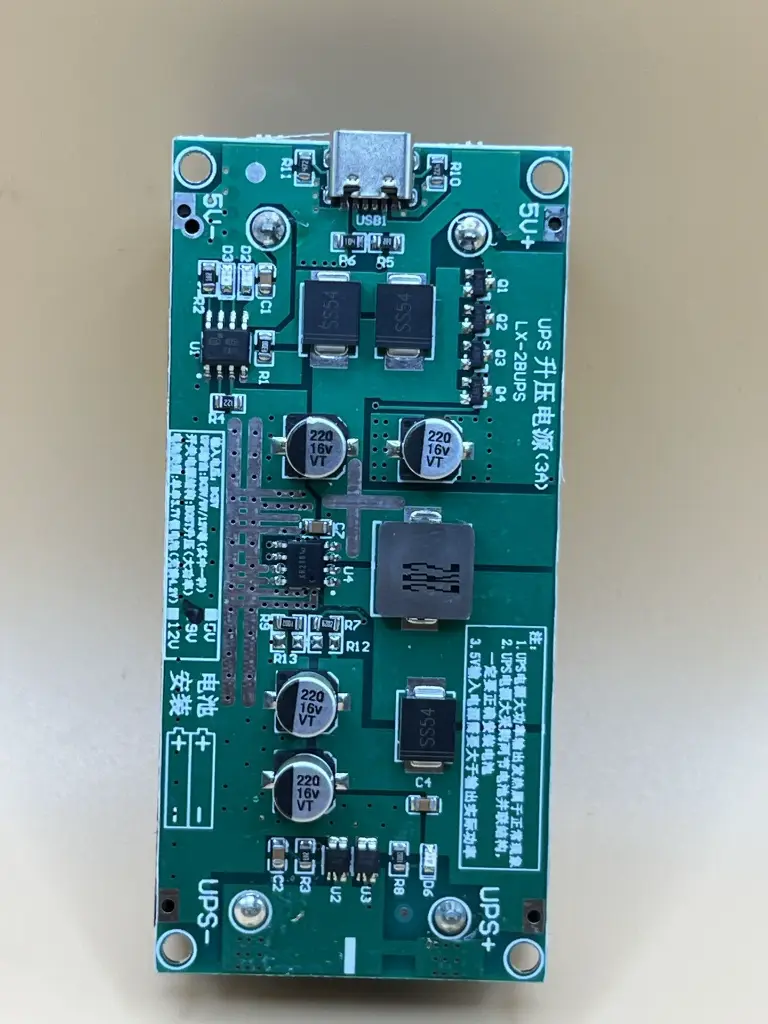

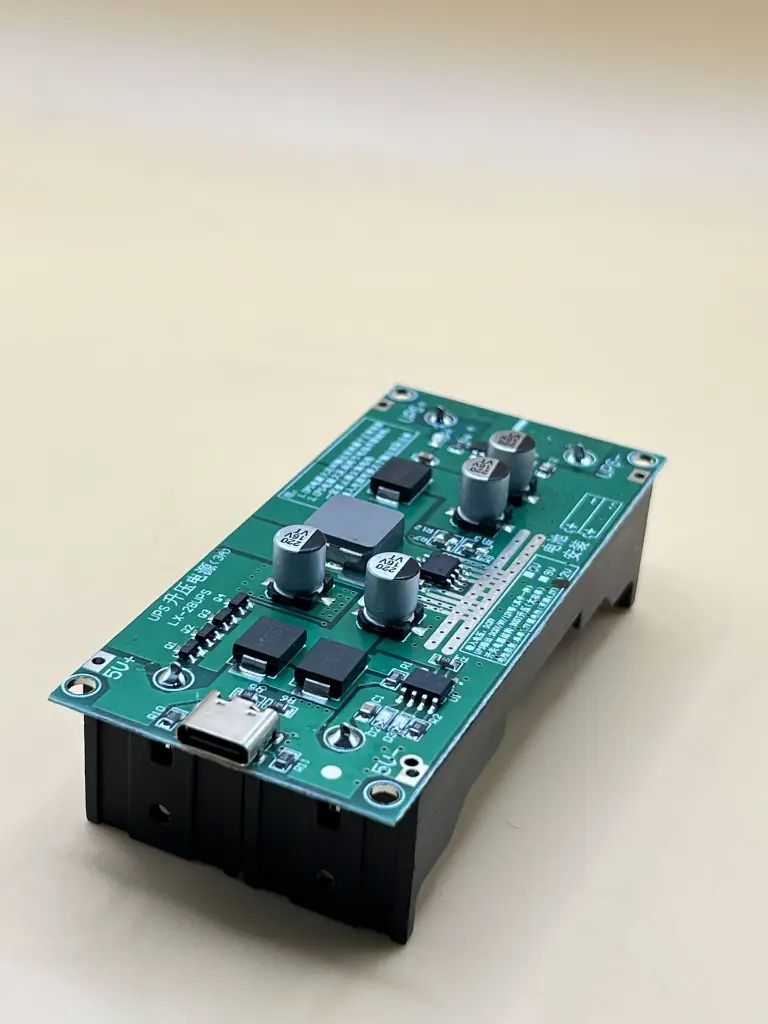

A versatile UPS module designed for embedded systems that require a stable 9 V DC supply. Powered by a single 18650 lithium-ion battery, it integrates a battery charger and step-up converter with USB-C I/O. The module supports simultaneous charge and discharge, making it ideal for uninterrupted power applications.
Key Features
- 9 V @ 3 A continuous output
- Supports simultaneous charge and discharge
- Includes full battery protection circuit
- USBC input/output for modern compatibility
- Input: 5–6 V via USBC
- Output: 9 V DC, up to 3 A
- Battery: 1× 18650
- Protections: Overvoltage, Undervoltage, Overcharge, Short-circuit
- Peak power: up to 20W
- Rated power: up to 15W
- Portable routers and network devices
- Embedded systems on higher-voltage rails
- Camera systems and portable audio
- Robotics
No Specifications
