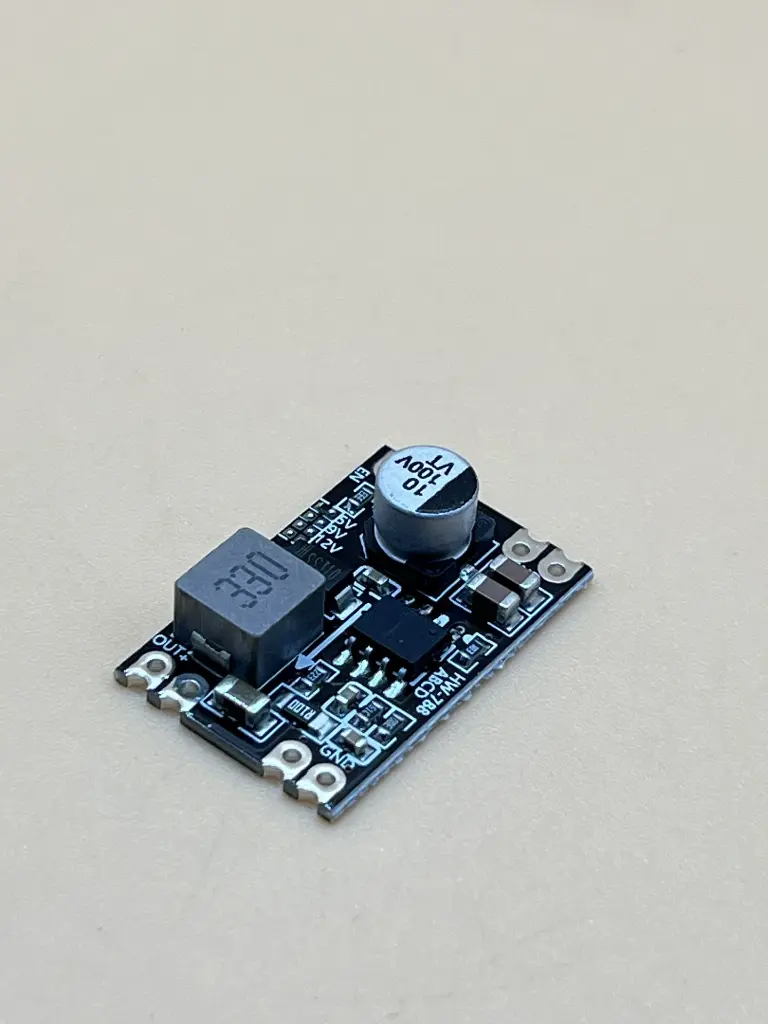

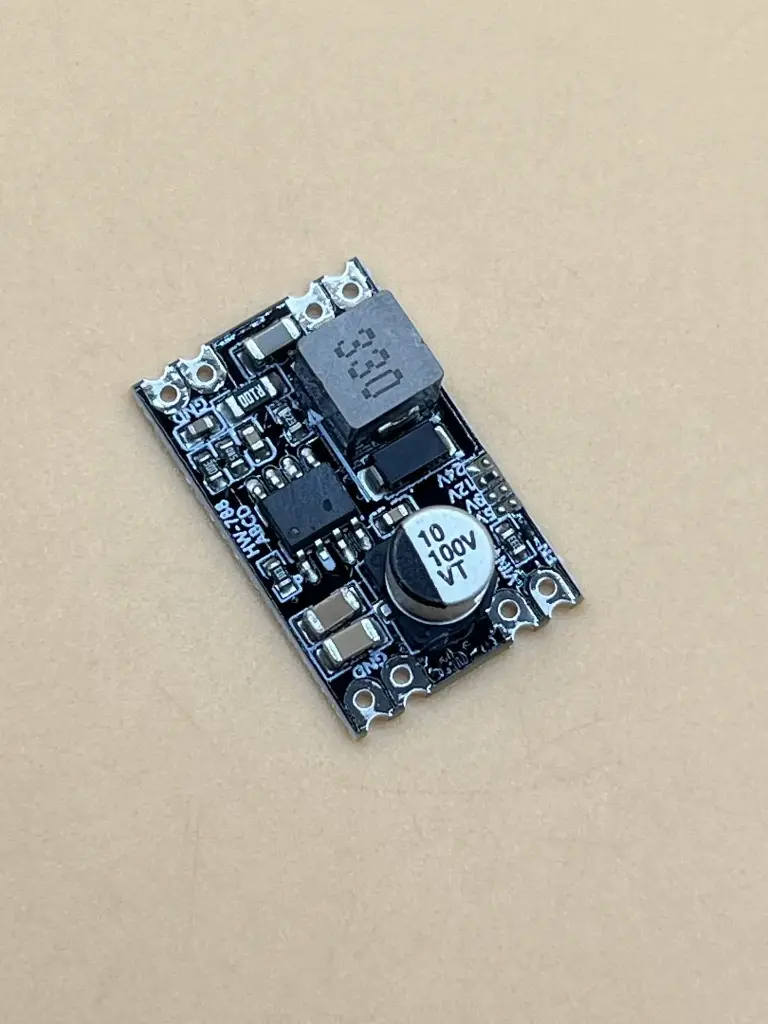

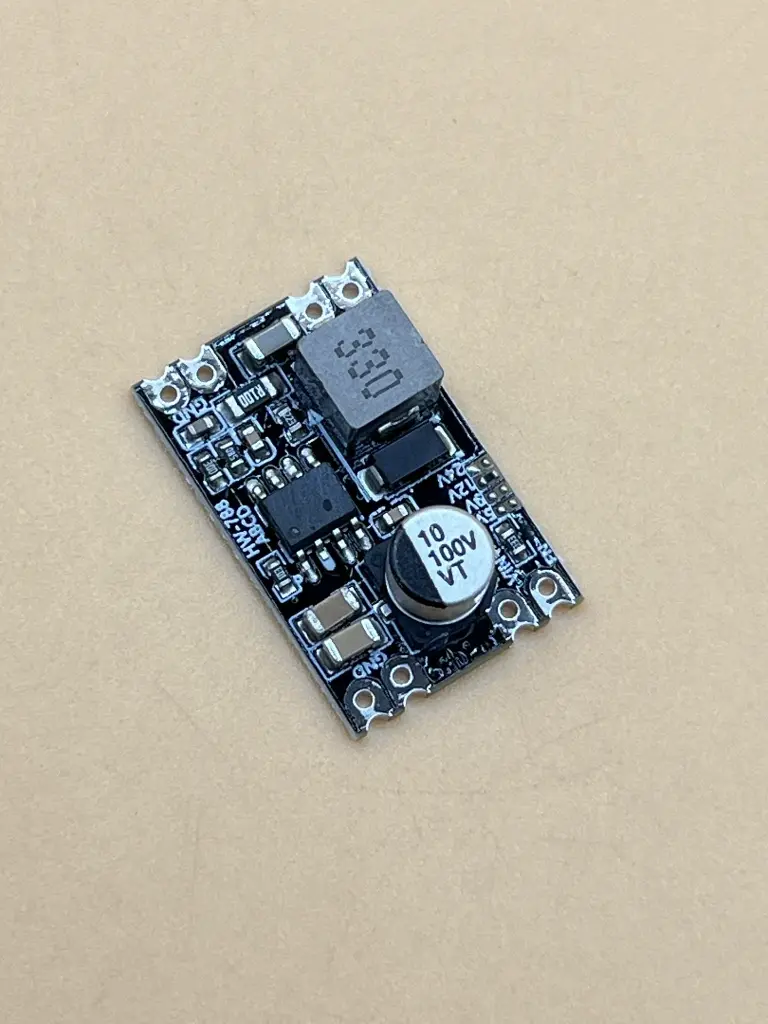

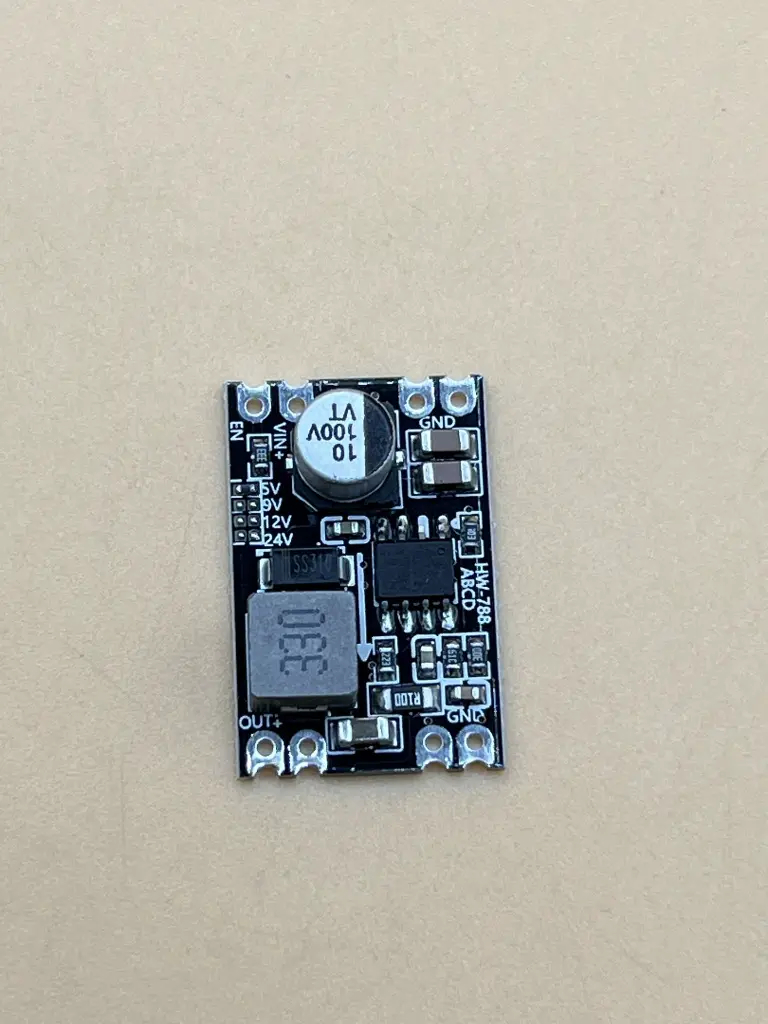

DC-DC buck module 2A 6-100V input 5V output

Key Features:

• Ultra-wide input range: 6–100V

• fixed outputs: 5V

• Built-in shutdown and overheat protection

• High efficiency and low power loss

• Compact and lightweight design

• Easy to integrate with half-hole motherboard layout

Specifications:

• Input Voltage: 6V ~ 100V (must exceed output voltage)

• Output Voltage (Fixed): 5V

• Output Current: 2A continuous, 3A max (peak)

• Efficiency: Up to 96%

• Output Ripple: <30mA

• Output Accuracy: ±0.1V

• No-Load Current: 1mA

• Operating Temperature: -40°C to +125°C

• Humidity Range: 20% ~ 90% RH

• Module Size: 25.5mm x 16.5mm x 7mm

• PCB Layers: 2

• Operating Frequency: 1MHz

• Shutdown Function: Supported

• Heat Dissipation: Natural cooling

• Mount Type: SMD or wired

• Isolation: No

• Service Life: 35,000 hours (at rated current)

• Production Type: Reflow soldered, half-hole design

Applications:

• Microcontroller power supply

• LED lighting systems

• Battery-powered devices

• DIY electronics and robotics

• Automotive and industrial systems

• Solar-powered systems
