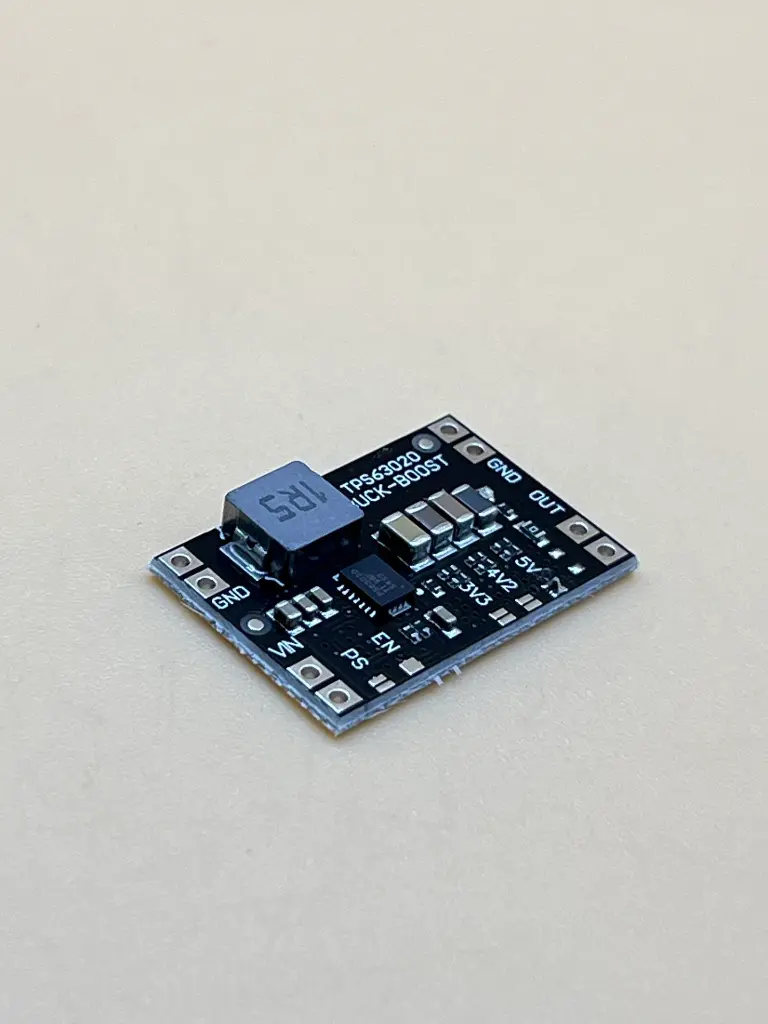

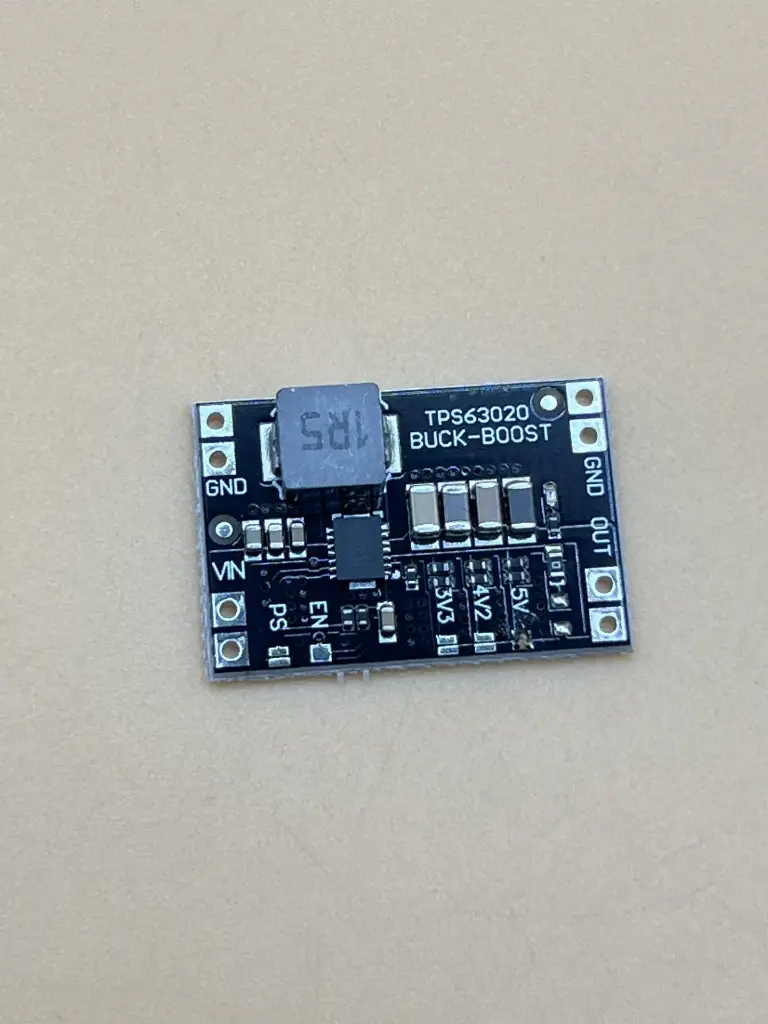

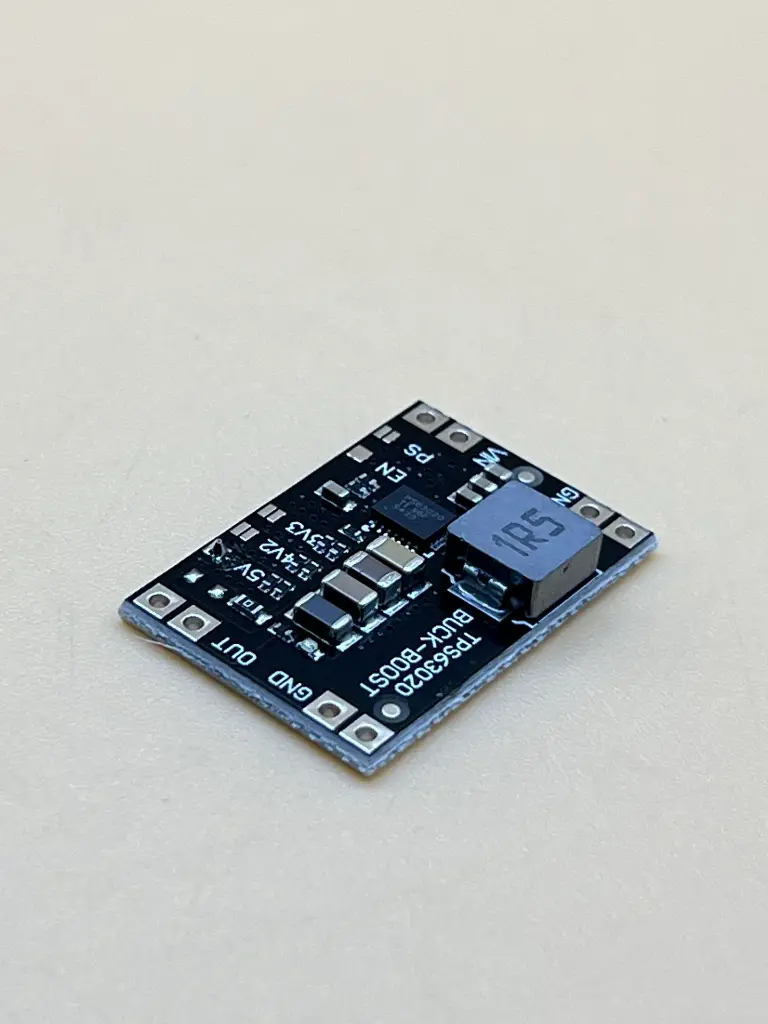

XL63020 5V buck module

Key Features:

• Wide Input Range: Operates from low-voltage sources like single Li-ion cells

• Efficient 5V Regulation: Maintains stable output even with input fluctuations

• Low Ripple Output: Clean power for noise-sensitive electronics

• High Switching Frequency: Reduces output capacitor size and electromagnetic interference

• Power-Saving Mode: Automatically lowers power consumption during idle states

• Simple Integration: Easy to solder with standard 2.54mm pin headers

• Visual Feedback: Onboard LED shows module status at a glance

Specifications:

• Input Voltage: DC 1.8V – 5.5V

• Output Voltage: Fixed 5V DC

• Output Current: Up to 0.9A (typical)

• Switching Frequency: ~2.4MHz

• Regulation Type: Buck-Boost (step-up/step-down)

• LED Indicator: Red LED for output status

• Interface: 2.54mm standard pad spacing

• Material: High-quality PCB + electronic components

• Color: Black

Applications:

• Microcontroller Power Supply: Ideal for ESP32, STM32, Arduino, and 51 series chips

• Battery-Powered Devices: Ensures consistent voltage as battery drains

• Wearable Tech and IoT Devices: Compact footprint with high efficiency

• Prototyping and Embedded Projects: Stable 5V output for sensors and modules

• DIY Electronics: Suitable for low-voltage, portable, and remote sensing applications
