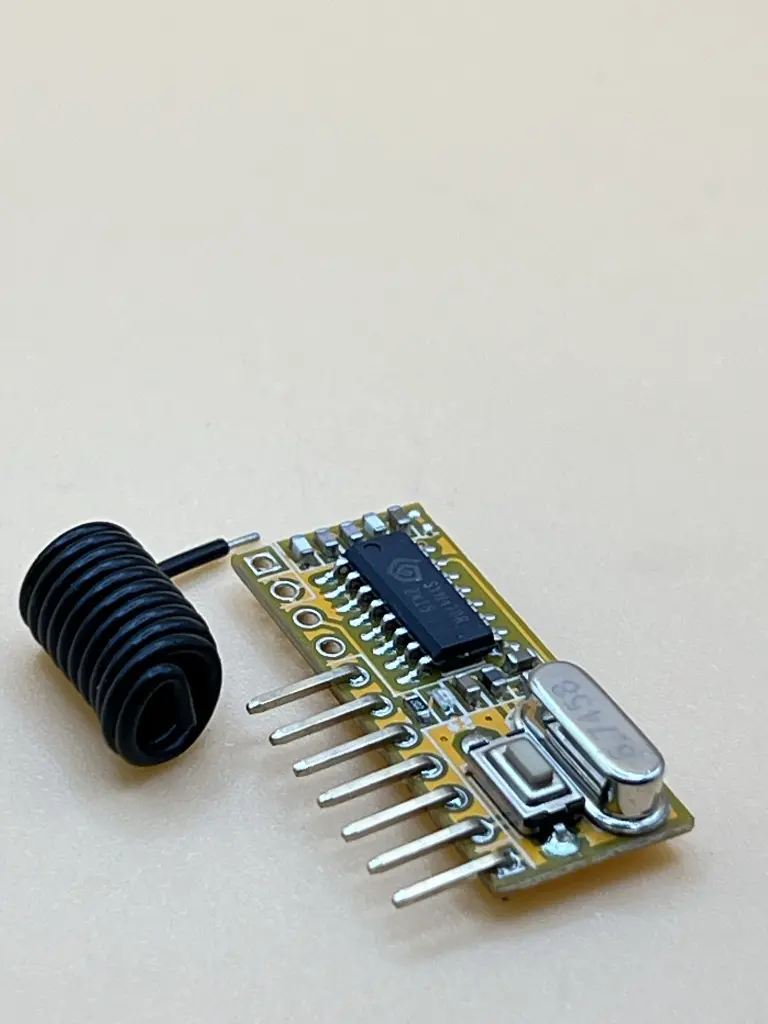

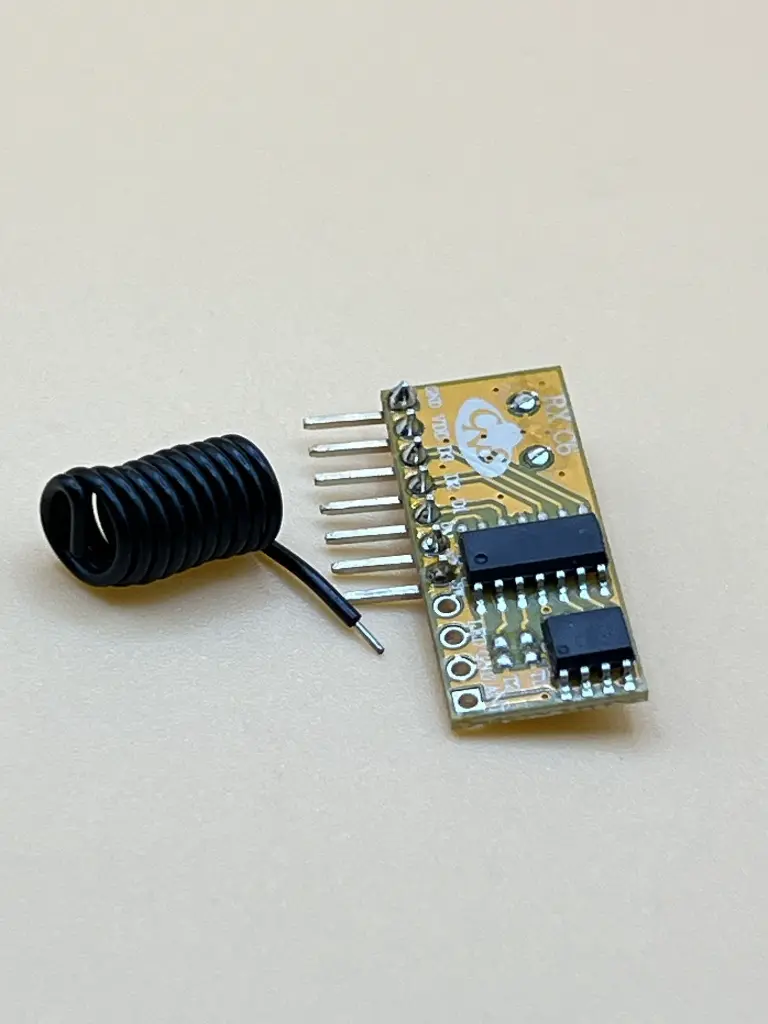

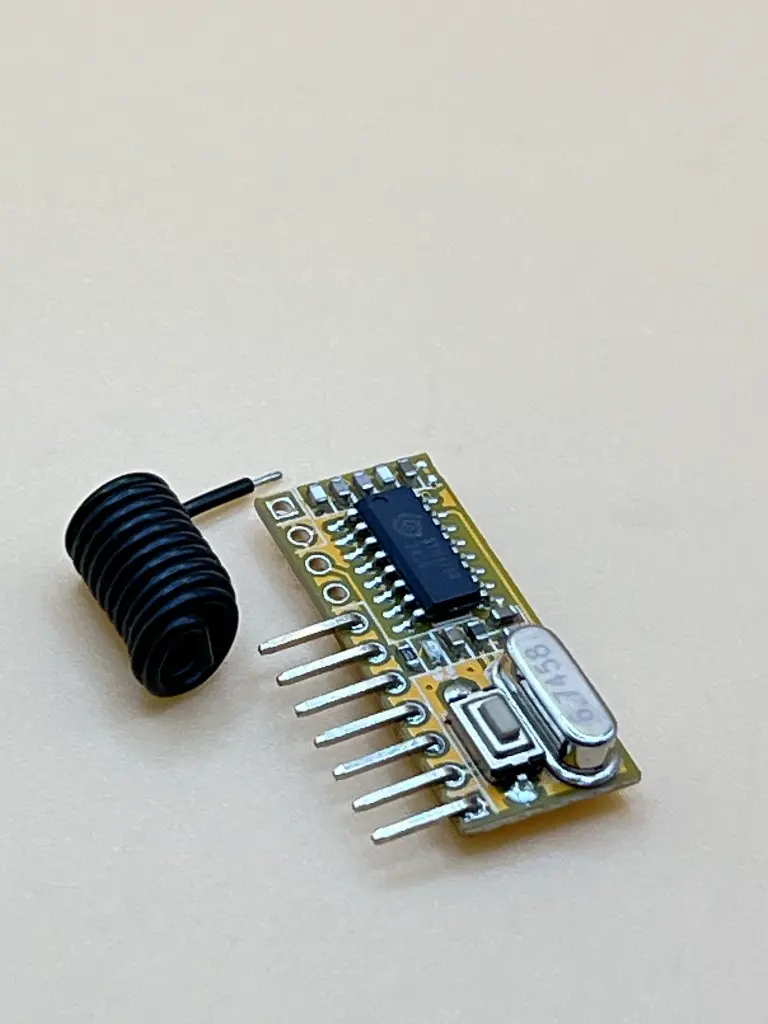

RXC6 433MHz receiver
9 sold in last 24 hours
The RXC6 is a high-sensitivity 433MHz wireless receiver module designed for long-range and stable ASK/OOK signal reception. Built using superheterodyne architecture, it offers a strong signal-to-noise ratio and improved decoding reliability over standard superregenerative modules. With low power consumption and a compact form factor,The module comes with integrated 4-bit decoding and supports up to 100 meters of range in open environments.
Features
-
Superheterodyne design for enhanced sensitivity and stability
-
Integrated 4-bit decoder for simple data interpretation
-
Low quiescent current for power-efficient designs
-
Compact module ideal for embedded wireless systems
-
External spiral antenna for improved signal reception
Specifications
-
Operating Frequency: 433.92 MHz
-
Operating Voltage: 3V to 5.5V DC
-
Receiver Sensitivity: -105 dBm
-
Current (Quiescent): 4 mA
-
Communication Type: ASK/OOK digital output
-
Range: ~100 meters (open area)
-
Antenna: 32 cm single-core wire (spiral wound)
-
Module Dimensions: 30 mm × 14 mm × 7 mm
Applications
-
Wireless remote control systems (garage doors, alarms)
-
IoT-based sensor data receivers
-
Smart home automation
-
Low-power RF communication modules
-
Wireless telemetry systems
-
Robotics and remote actuation projects
