Description

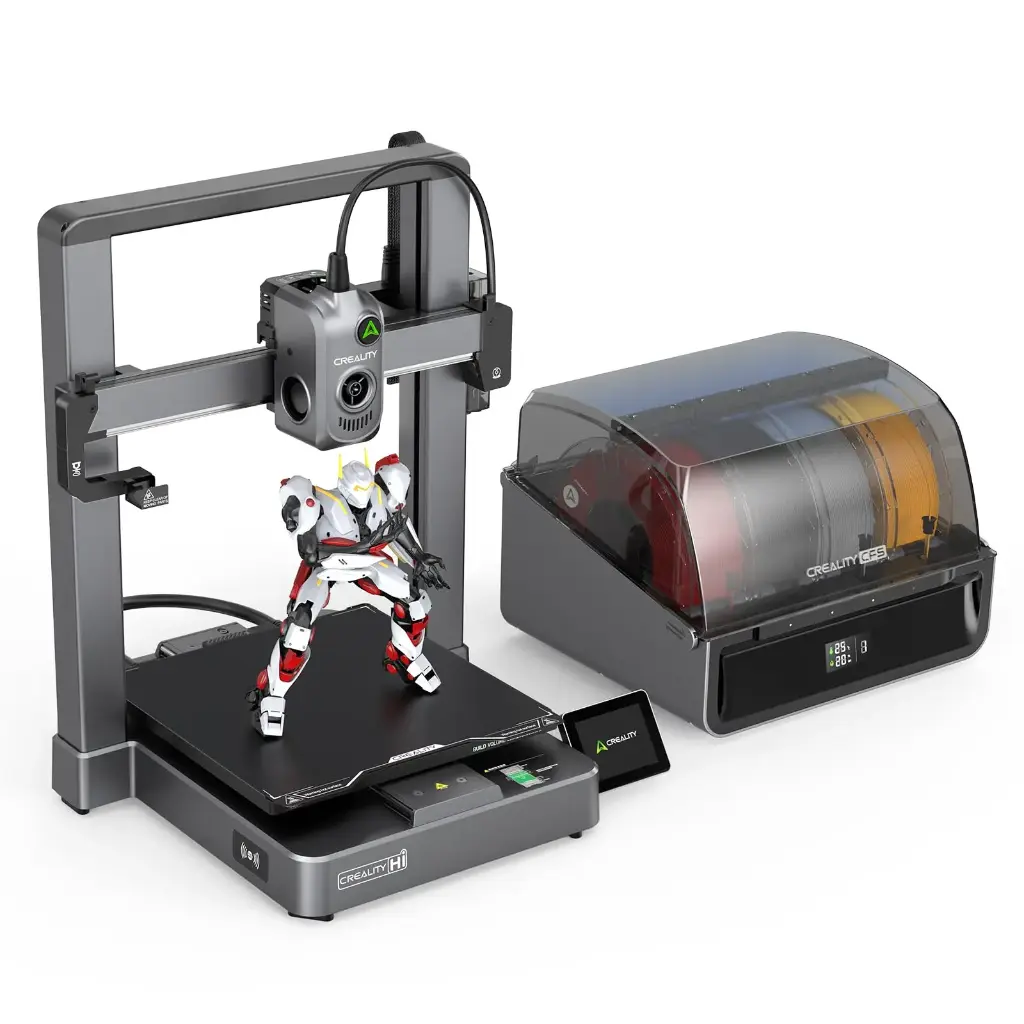

The Creality Hi Combo is a high-speed, multi-color FDM 3D printer designed to bring professional-grade color printing to enthusiasts and creators . Built around the Creality Filament System (CFS), it enables seamless multi-material and multicolor printing with up to 16 colors when paired with additional CFS units . The printer features a rigid all-metal aluminum alloy frame, a 260×260×300mm build volume, and a maximum print speed of 500mm/s . With 95% pre-assembly, automated bed leveling, and an intuitive touchscreen interface, the Hi Combo is designed for users who want to expand their creative possibilities without a steep learning curve
Key Features
- Multi-Color & Multi-Material Printing: The CFS supports up to 4 spools of filament, enabling multicolor prints and easy-to-remove support structures using breakaway or water-soluble materials . Expandable to 16 colors with 4 CFS units .
- High-Speed Performance: Achieves a maximum print speed of 500mm/s and acceleration of 12,000mm/s², with a recommended reliable speed of 300mm/s for consistent quality .
- Intelligent Automation: Features auto bed leveling, RFID filament recognition (for Creality chipped spools), filament run-out and tangle detection, and automatic filament switching and relay .
- All-Metal Sturdy Construction: Die-cast aluminum alloy frame with linear rails and dual Z-axis motors ensures stability and reduces resonance for high-quality prints .
- Clog-Free & Quick-Swap Nozzle: Integrated tri-metal nozzle (hardened steel tip, titanium alloy heat break, copper alloy body) supports temperatures up to 300°C and is easily replaceable .
- User-Friendly Setup & Interface: 95% pre-assembled; fold-away 3.2-inch color touchscreen; integrated HD camera with privacy cap for remote monitoring and time-lapse recording .
- Moisture-Proof Filament Storage: The CFS features an airtight seal with desiccant, a spring-loaded batten bar, and a built-in temperature and humidity display to keep filaments dry .
- Quiet Operation: Dynamically balanced fans, linear rails, and smooth rods reduce operating noise to as low as 48dB in silent mode
Specifications
| Parameter | Specification |
|---|---|
| Printing Technology | FDM / FFF |
| Build Volume | 260 × 260 × 300 mm |
| Max Print Speed | 500 mm/s |
| Max Acceleration | 12,000 mm/s² |
| Layer Height | 0.1 – 0.35 mm |
| Printing Accuracy | 100 ± 0.1 mm |
| Nozzle | 0.4 mm tri-metal nozzle (0.6, 0.8 optional) |
| Nozzle Temperature | ≤ 300°C |
| Heatbed Temperature | ≤ 100°C |
| Build Plate | Two-sided epoxy flexible build plate |
| Extruder | Direct drive, all-metal |
| Supported Filaments | Hyper-PLA, PLA, PETG, ABS, PLA-CF |
| Filament Diameter | 1.75 mm |
| Display | 3.2-inch color touchscreen (320×240) |
| Connectivity | USB drive, Wi-Fi |
| File Storage | 8GB |
| Camera | Built-in HD camera with privacy cap |
| CFS Input Voltage | DC 24V |
| CFS Rated Power | 20W |
| Printer Dimensions | 409 × 392 × 477 mm |
| Printer Net Weight | 9.2 kg |
| Combo Net Weight | 13.6 kg |
| Rated Voltage | AC 100–240V / 50Hz |
| Rated Power | 1150W @ 220V; 390W @ 110V |
Applications
- Multicolor Figurines & Models: Create detailed, full-color character models, miniatures, and cosplay props .
- Functional Prototypes: Large build volume supports functional parts up to 260mm tall .
- Custom Home Decor: Design and print personalized lamps, vases, and artistic pieces .
- Educational Projects: Ideal for STEM education and classroom settings requiring multi-material capabilities .
- Small Business Production: Produce low-volume, multi-color consumer goods and promotional items.
